Micro 1LS56

B007PB8UD6

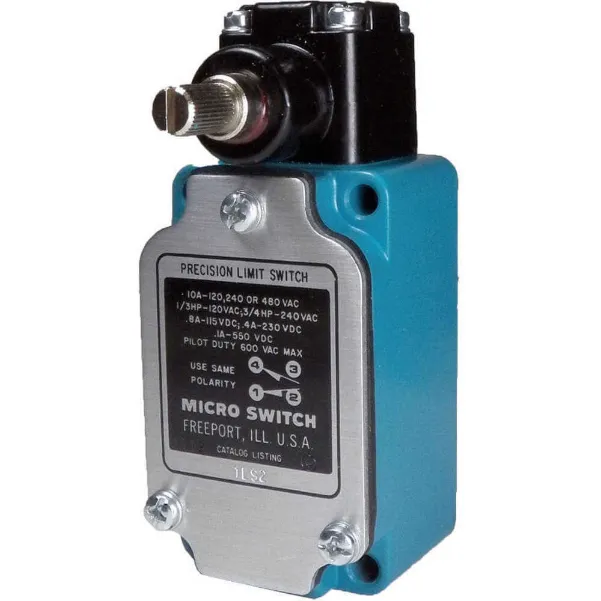

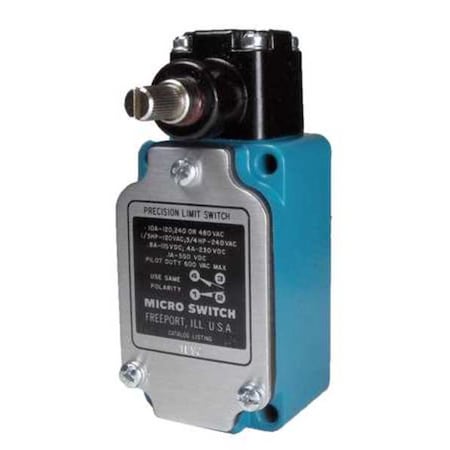

MICROSWITCH 1LS56 LS Series ROHS Compliant, 0.11 NM, 10 AMP, SPDT-1NO/1NC, PRECISON Limit Switch, 480 VAC, Side Rotary

MICROSWITCH 1LS56 LS Series ROHS Compliant, 0.11 NM, 10 AMP, SPDT-1NO/1NC, PRECISON Limit Switch, 480 VAC, Side Rotaryzoom

Attributes

Key Value
AC Contact Rating10A @ 480V
AC Contact Rating - Lim.10A @ 480V, 10 A @ 480V
Actuator Location - Lim.Side
Actuator Style - Limit .Rotary, No Lever, No Le.
Actuator TypeNo Actuator, Side Rotar.
Amps10
Basic Actuator Style - .Rotary
Body Depth - Limit Swit.1.13 in
Body Height - Limit Swi.2.7 in, 2.70 in
Body MaterialZinc Die Cast
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.1.19 in
Boot Sealed Actuator (L.No
Boot Sealed Actuator - .No
BrandHoneywell Micro Switch
CategorySwitches
CircuitSPDT (DB/DM)
Contact Form1NC/1NO, SPDT, SPDT
Contact Form- Switches1NC/1NO
Current Rating10 A
Current Rating (Amps)10A (AC)
Current Stock22
DC Contact Rating - Lim.Not Rated
Depth1.13"
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT (DB/DM) Cha.
Differential Travel-
Digi-Key Part Number480-4074-ND
Electrical ConnectionScrew Terminals
Electrical Life-
Features-
Head TypeSide Rotary Head
Height4.05"
Ingress ProtectionIP67 - Dust Tight, Wate.
International ShippingNo
IP RatingNo IP Rating
ItemLimit Switch
Lead TimeExpected to ship in 1-2.
Limit Switch StyleGeneral Purpose Limit S.
ManufacturerHoneywell Sensing and P.
Manufacturer Product Nu.1LS56
Manufacturer Standard L.20 Weeks
MaterialSilver Cadmium Oxide
Mechanical Life-
MfrHoneywell Sensing and P.
Mounting - Limit SwitchSurface
Mounting Hole - Limit S.(4) 0.19 in dia
Mounting Hole Pattern -.4 Hole Rectangular
Mounting Hole Size0.192 in
Mounting Hole Spacing -.2.31 in x 1.19 in
Mounting TypeChassis Mount
MovementPre-Travel (PT) 5 Degre.
Mpn1LS56
NEMA Rating1, 13, 3, 4, 6, 1, 3 4,.
Number of Poles1
Number of Positions2
Operating Force15 in-oz max, 11gfm
Operating Position5?
Operating Temp. Range-20 Degrees to 160 Deg.
Operating Temperature-29?C ~ 71?C
OperationSide-Actuated
Overtravel30?
PackageBulk
Pretravel5?
Product StatusActive
Release Force2.070gf
SeriesLS Series, LS
SKUZO-G3989097
StandardsUL, CSA
Stem Thread - Limit Swi.No Stem
SubCategoryElectrical
Switch FunctionOn-Mom
TerminationScrew
Termination StyleScrew Terminal
TravelMaximum Pre-Travel 5 De.
TypeLimit
UPC078454955580
Voltage Rating480VAC, 480 V
Voltage Rating - AC120 V
Width1.19"
Wiring Entry1/2 in NPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1LS56147.48114HONEYWELL147.48 @ 1
thumbzoomCarlton Bates Company78454955580179.521In StockHONEYWELL179.52 @ 1
thumbzoomturtle.comSEL 1LS56181.81In StockHoneywell181.8 @ 1
thumbzoomsustainablesupply.comC1158437191.381In StockHoneywell1.0191.38 @ 1
thumbzoomindustrialstores.com1LS56240.451In Stock19Honeywell240.45 @ 1
thumbzoomZoroG3989097252.99135Honeywell Micro Switch1.0252.99 @ 1
thumbzoomsimsupply.comZO-G3989097305.4122Honeywell Micro Switch305.4 @ 1
thumbzoomDigi-Key3072650315.77310In StockHoneywell Sensing and Productivity Solutions315.773 @ 10
us.rs-online.com70120013341.13117Honeywell341.13 @ 1
grainger.caWWG11T683382.405407221In StockHONEYWELL MICRO SWITCH1.0382.40540722 @ 1
thumbzoomNewark53K5926395.6310In StockHONEYWELL395.63 @ 10
alliedcontrols.com1LS56470.71In StockHoneywell470.7 @ 1
thumbzoomRaptor SuppliesAA3RDR571.6139131In StockHONEYWELL571.613913 @ 1
standardelectricsupply.com260083320.41In StockHoneywell3320.4 @ 1
thumbzoomkempstoncontrols.co.uk1LS564225.594231In StockHoneywell4225.59423 @ 1
