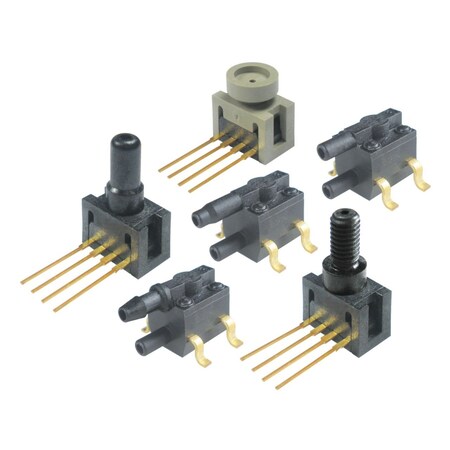

Honeywell 24PCAFA6D Board Mt Pressure Sensor Uncomp/Unamp, 0-1psi Differ, fluorosilicon, 2 Straight Ports, 1 x 4 SIP, Vout: 0-45mV (10V), Accur: ?1%, Resp t: 1ms, Op: -40?C ~ 85?C, Vs: 2.5-12V

Honeywell 24PCAFA6D Board Mt Pressure Sensor Uncomp/Unamp, 0-1psi Differ, fluorosilicon, 2 Straight Ports, 1 x 4 SIP, Vout: 0-45mV (10V), Accur: ?1%, Resp t: 1ms, Op: -40?C ~ 85?C, Vs: 2.5-12Vzoom

Attributes

Key Value
Accuracy?1%, +/-1% %
ApplicationsBoard Mount
Base Product Number24PCAFA
Body StyleDual Port, Opposite Sid.
CategorySensors, Transducers
DescriptionSENSOR 1PSID 0.2" .045V
Detailed DescriptionPressure Sensor ?1PSI (.
Digi-Key Part Number480-2496-ND
Features-
FunctionPressure
Gauge Port SizeMale - 0.2 (5) Tube, Du.
ManufacturerHoneywell Sensing and P.
Manufacturer Product Nu.24PCAFA6D
Manufacturer Standard L.10 Weeks
Maximum Operating Tempe.85?C
Maximum Pressure?20PSI (?137.9kPa)
Maximum Pressure Measur.+/-20 PSI (+/-137.9 kPa.
Measurement Range+/- 1 psi
Measurement Unitspsi
MfrHoneywell Sensing and P.
Minimum Operating Tempe.-40?C
Mounting TypeThrough Hole, PCB Mount
Operating Pressure1 PSI, ?1PSI (?6.89kPa)
Operating Temperature-40?C ~ 85?C, -40 ~ 85 .
Output0 mV ~ 45 mV (10V), 0-4.
Output TypeWheatstone Bridge
PackageTray
Package / Case4-SIP Module
Package Type4-SIP Module
Port SizeMale - 0.2" (5mm) Tube,.
Port StyleBarbless
Pressure TypeDifferential
Product StatusActive
Series24PC, 24PC Series
Supplier Device Package-
Supply Voltage10-12 VDC
Switching Current2 mA
TechnologyPiezoresistive
TerminationThrough Hole
Termination StylePC Pin
TypeDifferential
Type PortMale - 0.2" (5mm) Tube,.
Voltage - Supply10V ~ 12V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com24PCAFA6D21.981206HONEYWELL21.98 @ 1
HotendaH395355428.271In StockHoneywell Sensing and Control28.27 @ 1
WaldomHONEYWELL 24PCAFA6D37.0324HONEYWELL37.03 @ 2
thumbzoomDigi-Key124883147.9881903Honeywell Sensing and Productivity Solutions47.988 @ 1
thumbzoomRadwell24PCAFA6D55.01In StockHONEYWELL MICROSWITCH55.0 @ 1
us.rs-online.com7012023467.8625In StockHoneywell67.86 @ 25
RS Delivers235-579074.76115Honeywell74.76 @ 1
thumbzoomNewark46WX44285.65131HONEYWELL85.65 @ 1
thumbzoomZoroG405945453105.981In StockHoneywell105.98 @ 1
thumbzoomkempstoncontrols.co.uk24PCAFA6D1883.2934251In StockHoneywell1883.293425 @ 1
