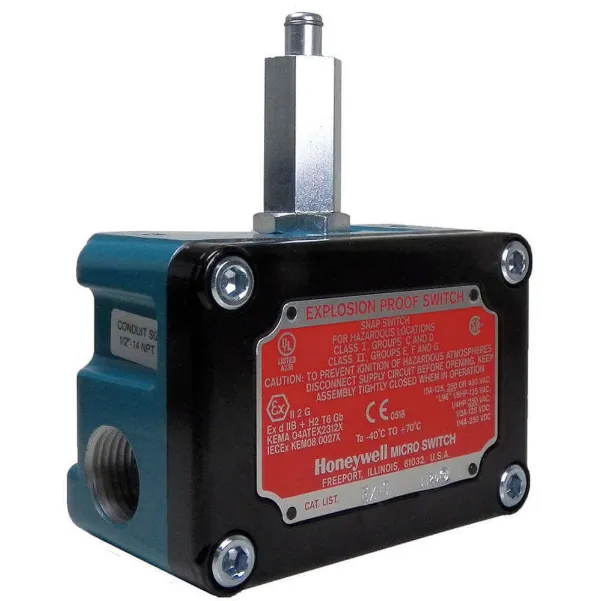

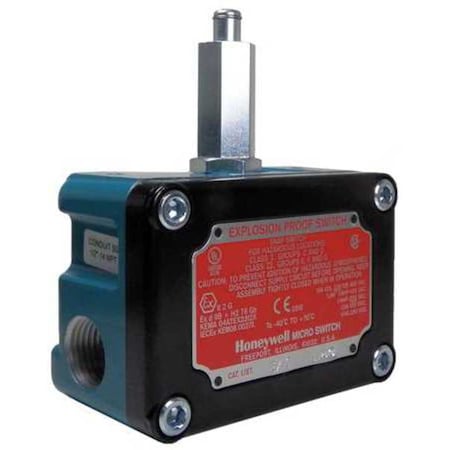

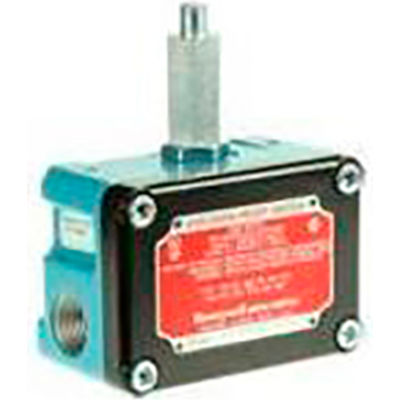

Honeywell EXQ400

B007PBAHPU

Basic / Snap Action Switches Hazardous Location EX Enclosure

Basic / Snap Action Switches Hazardous Location EX Enclosurezoom

Attributes

Key Value
AC Contact Rating5A @ 480V
AC Contact Rating - Lim.5A @ 480V
Actuator Length1.86"
Actuator Length - Limit.1.86 in
Actuator LocationTop
Actuator Location (Limi.Top
Actuator Location - Lim.Top
Actuator StylePlunger
Actuator Style (Limit S.Plunger
Actuator Style - Limit .Plunger
Actuator TypeRound (Pin Plunger)
Amps15 Ind./0.5 Res./0.25 R.
Base Product NumberEX-Q
Basic Actuator Style (L.Plunger
Basic Actuator Style - .Plunger
Body Depth - Limit Swit.2.02 in
Body Height - Limit Swi.2.56 in
Body MaterialAluminum
Body Style (Limit Switc.Miniature
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.2.78 in
Boot Sealed Actuator (L.No
Boot Sealed Actuator - .No
BRANDHoneywell
CategorySwitches
CertificationATEX, IEC Ex, Div. 1, &.
CircuitSPDT
Contact Form1NC/1NO, SPDT
Contact Form - Limit Sw.1NC/1NO
Contact Form- Switches1NC/1NO
Country of Origin (subj.United States
Current Rating (Amps)5A (AC), 500mA (DC)
DC Contact Rating0.25A @ 250V
DC Contact Rating - Lim.0.25A @ 250V
Depth2.02"
Differential Travel0.004" (0.1mm)
Electrical ConnectionScrew Terminals
Electrical Life-
FeaturesExplosion Proof
Height2.56"
Ingress Protection-
ItemExplosion Proof Limit S.
Limit Switch StyleExplosion Proof Limit S.
MANUFACTURERS PART NUMB.EX-Q400
Mechanical Life-
MfrHoneywell Sensing and P.
Mounting - Limit SwitchSurface
Mounting Hole - Limit S.(2) 10-32 Thread
Mounting Hole Pattern -.2 Hole Horizontal
Mounting Hole Spacing -.2.06 in
Mounting TypeChassis Mount
MovementLinear
NEMA Rating1, 7
Number of Poles1
Operating Force1360gf, 3.0 lb
Operating Position1.859" (47.2mm)
Operating Temp. Range-40 Degrees to 400 Deg.
Operating Temperature-40?C ~ 204?C
Overtravel0.187" (4.75mm)
PackageBulk
Pretravel0.078" (2.0mm)
Product StatusActive
Release Force340gf
SeriesEX
StandardsATEX, CSA, IEC Ex, UL
Stem Thread - Limit Swi.No Stem
Switch FunctionOn-Mom
Termination StyleScrew Terminal
TravelDifferential Travel 0.0.
TYPELimit Switches
Voltage Rating120/250/480VAC/120/250V.
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Width2.78"
Wiring Entry1/2"-14 NPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomCarlton Bates Company78454913781349.791In StockHONEYWELL349.79 @ 1
RadwellEX-Q400425.91In StockHONEYWELL425.9 @ 1
thumbzoomGlobal IndustrialWBB2852038792.01In StockHoneywell792.0 @ 1
Newark49AJ0466897.9512HONEYWELL897.95 @ 1
Digi-Key3073027929.481In Stock75Honeywell Sensing and Productivity Solutions929.48 @ 1
thumbzoomZoroG40841661161.751In Stock26Honeywell Micro Switch1.411161.75 @ 1
thumbzoomRaptor SuppliesAA4MZA2817.67736251In StockHONEYWELL2817.6773625 @ 1
