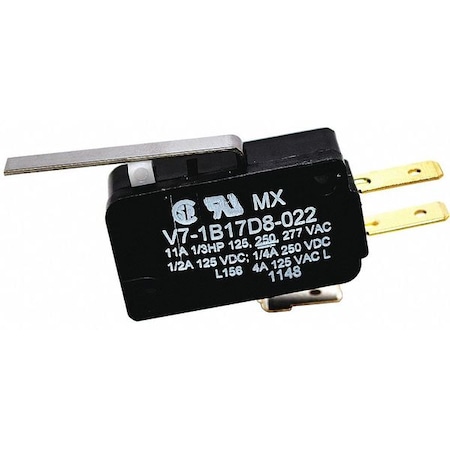

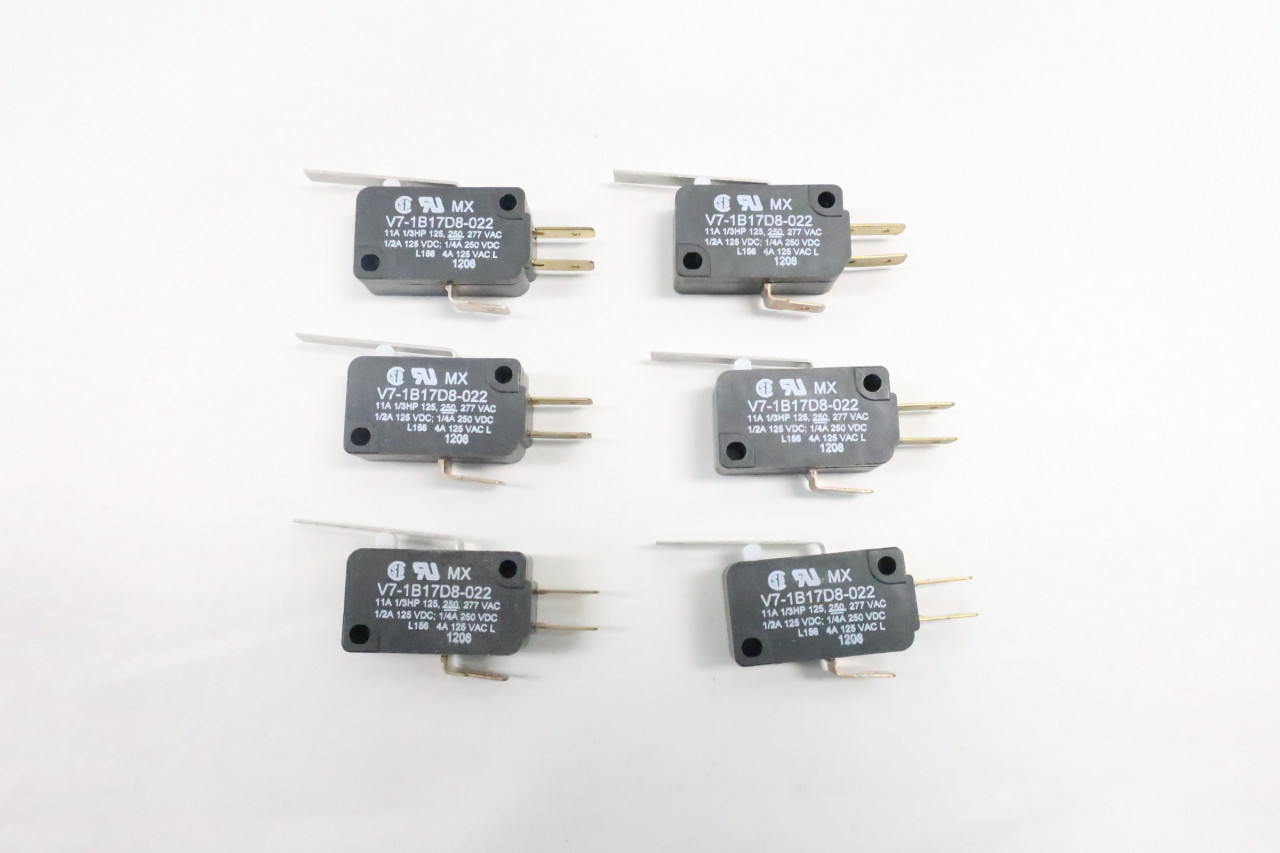

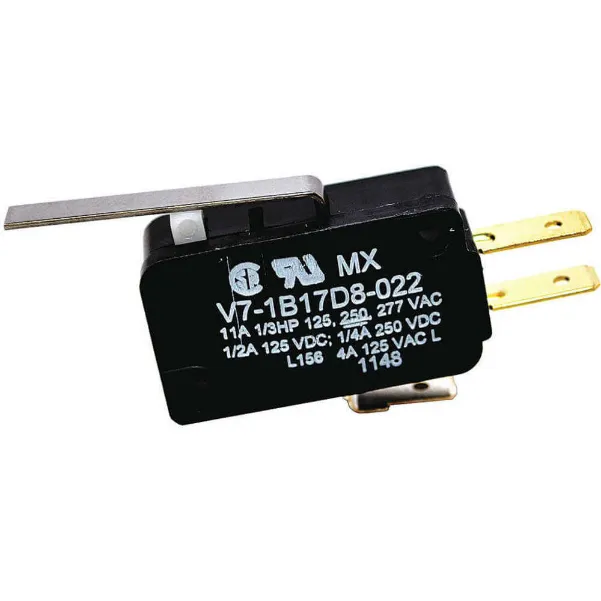

Honeywell V7-1B17D8-022

B005T5GL3G

Premium Mini Swch, 3A, Spdt, Shrt Strt Levr

Premium Mini Swch, 3A, Spdt, Shrt Strt Levrzoom

Attributes

Key Value
AC Contact Rating - Sna.11 A 1/3 HP 125 V, 250 .
Actuator Length1.41"
Actuator TypeLever, Lever, Straight
Actuator Type - Snap Ac.Lever, Short
Base Product NumberV7-1
Body StyleMiniature
BrandHoneywell
Casing MaterialThermoplastic
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Contact MaterialGold Alloy/Silver Alloy.
Current Rating11 A
Current Rating (Amps)11A (AC), 500mA (DC)
Current Stock22
DC Contact Rating - Sna.1/2 A 125 V; 1/4 A 250 V
Depth0.4"
Depth - Snap Action Swi.0.4 in
Differential Travel0.027 in, 0.027" (0.7mm)
Electrical Connection -.3/16 in Quick Connect
Electrical Life100,000 Cycles
Features-
Height0.63"
Height - Snap Action Sw.0.63 in
Housing MaterialPCT Polyester Thermopla.
Ingress Protection-
International ShippingNo
ItemMiniature Snap Action S.
Lead TimeExpected to ship in 1-2.
Length1.14"
Lever Actuator Length -.1.41 in
Max. Pretravel0.12 in
Mechanical Life10,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension0.41 x 0.87" Centers
Mounting Dimension - Sn.0.87 in Centers
Mounting Hole Size0.114 in
Mounting TypeChassis Mount
MpnV7-1B17D8-022
Number of Poles1
Number of Positions2
Operating Force82gf, 2.9 Oz.
Operating Position0.602" (15.3mm)
Operating Temperature-40?C ~ 85?C, -40 to +8.
Overtravel0.068" (1.73mm)
PackageBulk
Pretravel0.120" (3.0mm)
Product StatusActive
Release Force0.28 oz, 8.000gf
SeriesV7 Series, V7
SKUZO-G4555896
Special FeaturesHigh Temperature
StandardsCSA, ENEC, UL, UL Recog.
SubCategoryElectrical
Switch FunctionOn-Mom
Terminal TypeQuick Connect
TerminationQC Tabs
Termination StyleQuick Connect - 0.187" .
TypeBasic
Voltage Rating277 V, 250VAC
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Width - Snap Action Swi.1.14 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager ElectronicsV7-1B17D8-0221.491203Honeywell1.49 @ 1
Onlinecomponents.comV7-1B17D8-0221.67115610HONEYWELL1.67 @ 1
Carlton Bates Company784549207061.681214Honeywell1.68 @ 1
thumbzoomsustainablesupply.comC11747213.48128Honeywell0.013.48 @ 1
thumbzoomNewark91B83663.681518HONEYWELL3.68 @ 1
Digi-Key12485264.791In StockHoneywell Sensing and Productivity Solutions4.79 @ 1
thumbzoomTMEV7-1B17D8-0225.091102HONEYWELL5.09 @ 1
thumbzoomZoroG45558965.291451Honeywell0.015.29 @ 1
us.rs-online.com701201525.4912360Honeywell5.49 @ 1
alliedcontrols.comV7-1B17D8-0225.761In StockHoneywell5.76 @ 1
thumbzoomRaptor SuppliesAB7TNN10.51426351In StockHONEYWELL10.5142635 @ 1
thumbzoomsimsupply.comZO-G455589612.42122Honeywell12.42 @ 1
thumbzoomebay.com_plccenterV7-1B17D8-02212.51In StockHONEYWELL12.5 @ 1
AmazonTPB00DDE0CXA12.991283HONEYWELL S&C12.99 @ 1
thumbzoomebay.com_ampdind19V7-1B17D8-02214.091In StockHONEYWELL14.09 @ 1
thumbzoomebay.com_nri-industrialV7-1B17D8-02227.481In StockHONEYWELL27.48 @ 1
thumbzoomNRI IndustrialD61902040.771In StockHONEYWELL40.77 @ 1
standardelectricsupply.com2237768602.01In StockHoneywell602.0 @ 1
thumbzoomkempstoncontrols.co.ukV7-1B17D8-022768.73681In StockHoneywell768.7368 @ 1
