Honeywell V7-3E17E9

B00KSLT7V4

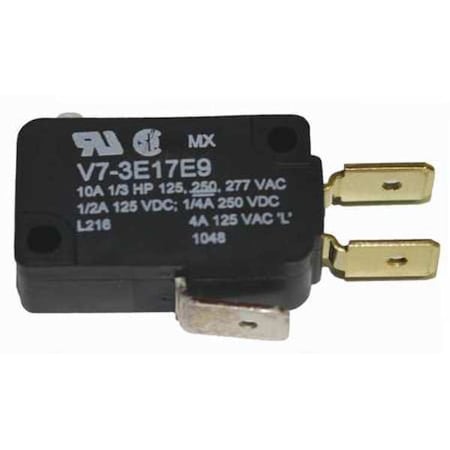

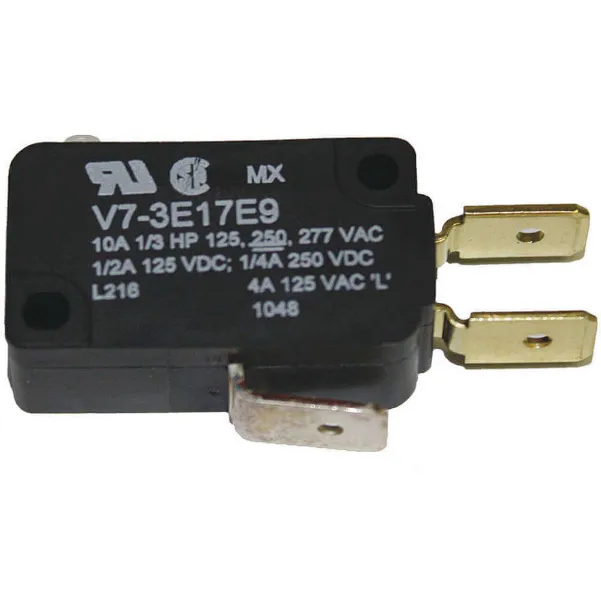

Honeywell Sensing and Control Part Number V7-3E17E9

Honeywell Sensing and Control Part Number V7-3E17E9zoom

Attributes

Key Value
AC Contact Rating - Sna.10 A @ 240V, 10 A 1/3 H.
Actuator LengthNot Applicable
Actuator TypeRound (Pin Plunger), Pi.
Actuator Type - Snap Ac.Pin, Plunger
Base Product NumberV7-3
Basic Actuator Type - S.Plunger
BrandHoneywell
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating10A
Current Rating (Amps)10A (AC), 500mA (DC)
Current Stock97
DC Contact Rating - Sna.0.5 A @ 125V, 1 /2A 125.
Depth0.4"
Depth - Snap Action Swi.0.40 in, 0.4 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.01 in, 0.010" (0.25mm)
Digi-Key Part Number480-5276-ND
Electrical Connection -.1/4 in Quick Connect, Q.
Electrical Life100,000 Cycles
Features-
Height0.63"
Height - Snap Action Sw.0.63 in
Housing MaterialPCT Polyester Thermopla.
Ingress Protection-
International ShippingNo
ItemMiniature Snap Action S.
Lead TimeExpected to ship in 1-2.
Length1.14"
Lever Actuator Length -.Not Applicable
ManufacturerHoneywell Sensing and P.
Manufacturer Product Nu.V7-3E17E9
Manufacturer Standard L.32 Weeks
Max. Pretravel1.19 mm
Mechanical Life10,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension0.41 x 0.87" Centers
Mounting Dimension - Sn.0.87 in Centers
Mounting TypeChassis Mount
MpnV7-3E17E9
Number of Circuits - Sn.1
Operating Force0.49 N, 50gf
Operating Position0.579" (14.7mm)
Operating Temp. Range-40 Degrees to 180 Deg.
Operating Temperature-40?C ~ 85?C
Over Travel1.27 mm
Overtravel0.050" (1.27mm)
PackageBulk
Pretravel0.047" (1.2mm)
Product StatusActive
Release Force5.000gf, 0.18 oz
SeriesV-Basic, V7 Series, V7
SKUZO-G4605517
Snap Action Switch TypeMiniature Snap Action S.
StandardsUL, CSA, ENEC, CSA, ENE.
SubCategoryElectrical
Switch FunctionOn-Mom
Termination StyleQuick Connect - 0.250" .
Type of ActuatorPin Plunger
Voltage Rating250VAC
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.14 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comV7-3E17E91.44116234HONEYWELL1.44 @ 1
TTIV7-3E17E91.6110062Honeywell1.61 @ 100
Carlton Bates Company784549210251.72162Honeywell1.72 @ 1
thumbzoomNewark50F51111.731233HONEYWELL1.73 @ 1
thumbzoomsustainablesupply.comC11747602.66137Honeywell1.02.66 @ 1
thumbzoomDigi-Key27490203.361320029Honeywell Sensing and Productivity Solutions3.3613 @ 200
us.rs-online.com705167073.51263Honeywell3.5 @ 1
thumbzoomZoroG46055173.591178Honeywell1.03.59 @ 1
grainger.caWWG24A2894.23144898162HONEYWELL1.04.23144898 @ 1
thumbzoomRaptor SuppliesAB7TQF6.6370591In StockHONEYWELL6.637059 @ 1
thumbzoomsimsupply.comZO-G460551710.29197Honeywell10.29 @ 1
thumbzoomkempstoncontrols.co.ukV7-3E17E9786.61441In StockHoneywell786.6144 @ 1
