| Base | Optional |
| Bearings | Roller |
| Bore Dia., Output Shaft Dia. | 3-7/16" |
| Country of Origin (subject to change) | United States |
| Dimension A | 8.360" |
| Dimension B | 2.650" |
| Dimension D | 4.438" |
| Dimension DD | 2.500" |
| Dimension G, Frame | 182TC |
| Dimension H | 2.89" |
| Dimension K | 7.250" |
| Dimension L | 8.501"/8.503" |
| Dimension M | 1.125" |
| Dimension U | 3.438" |
| Duty | Industrial |
| Finish | Acrylic |
| Gear Material | 8620 Steel |
| Gear Type | Helical-Hypoid |
| Housing Material | Cast iron |
| Input RPM | 1750 |

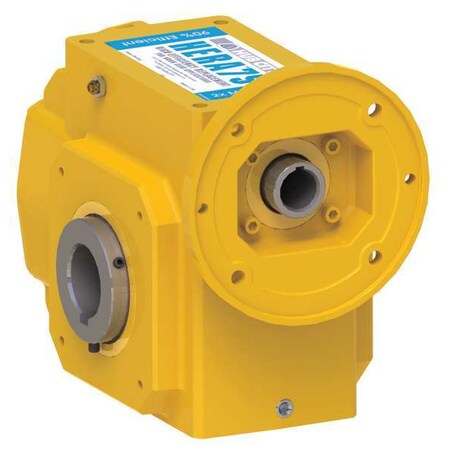

| Item | Speed Reducer |
| Lubrication | Mobil Glygoyle(R) 460 |
| Max. Input HP | 4.95 |
| Max. Output Torque | 8500 in.-lb. |
| Mounting | Universal |
| Nominal Output RPM | 35 |
| Nominal Ratio | 50:1 |
| Number of Stages | 2 |
| Overall Length | 15.63" |
| Pinion Material | Hardened Steel |
| Reducer Model No. | HERA75ES |
| Rotation | Reversible |
| Seal Type | Double Lip |
| Shaft Orientation | Right Angle |
| Solid/Hollow Output Shaft | Hollow |
| Speed Reducer Type | C-Face |
| Standards | USDA H1 |
| Worm Center Distance | 4.25" to 6.00" |
