Hub City / Regal Beloit 165-3/1CFSP

B01LW6TBMB

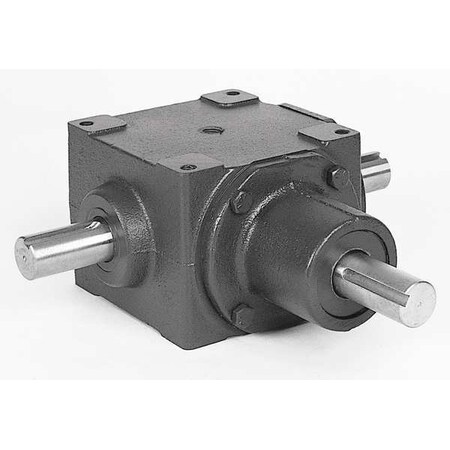

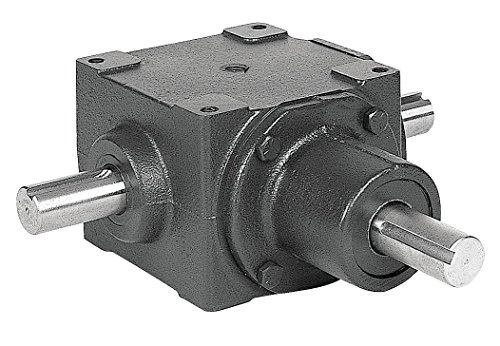

Hub City/Regal Beloit - 165-3/1CFSP - Standard Rugged Cast Iron Bevel Gear Drive, Single Output, 775 lb. Overhung Load

Hub City/Regal Beloit - 165-3/1CFSP - Standard Rugged Cast Iron Bevel Gear Drive, Single Output, 775 lb. Overhung Loadzoom

Attributes

Key Value
BaseOptional
BearingsTapered Roller
Bore Dia.1"
Country of Origin (subj.United States
Dimension B5-3/32"
Dimension C10-3/16"
Dimension F3/8"
Dimension V4-1/8"
Dimension W2-1/16"
DutyStandard
FinishPainted Gray
Gear Material8620 Steel
Gear TypeSpiral Bevel
Housing MaterialRugged Cast Iron
Input RPM1750
ItemGear Drive
LubricationShipped Dry, Recommend .
Max. Input HP5.2
Max. Output Torque562 in.-lb.
MountingAny Position Except Inp.
Nominal Output RPM583
Nominal Ratio3:1
Number of Stages1
Output Shaft Dia.1"
Output Shaft Height2-1/32"
Overall Length10.81"
Overhung Load775 lb.
Pinion MaterialHardened Steel
Reducer Model No.165
RotationReversible
Seal TypeHeavy-Duty Industrial
Shaft OrientationRight Angle
Single/Double Output/Un.Single Output
Speed Reducer TypeBevel
StandardsAGMA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG67530831326.021In Stock5Hub City1326.02 @ 1
