Hub City / Regal Beloit 88-3/1ABSP

B01LWCC7KR

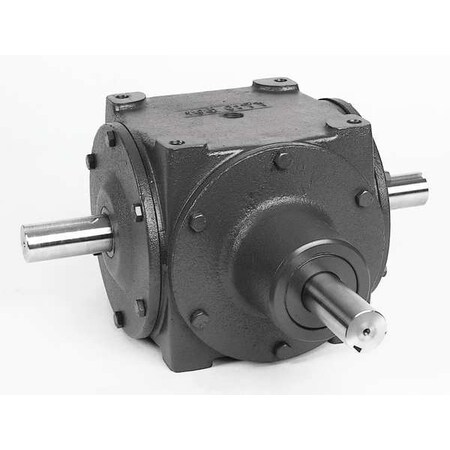

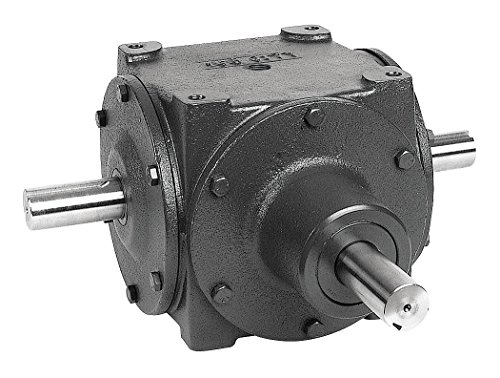

Hub City/Regal Beloit - 88-3/1ABSP - Standard Rugged Cast Iron Bevel Gear Drive, Double Output, 400 lb. Overhung Load

Hub City/Regal Beloit - 88-3/1ABSP - Standard Rugged Cast Iron Bevel Gear Drive, Double Output, 400 lb. Overhung Loadzoom

Attributes

Key Value
BaseOptional
BearingsTapered Roller
Bore Dia.1-3/8"
Country of Origin (subj.United States
Dimension B7-29/32"
Dimension C15-13/16"
Dimension F1/2"
Dimension V8-3/16"
Dimension W4-3/32"
DutyStandard
FinishPainted Gray
Gear Material8620 Steel
Gear TypeSpiral Bevel
Housing MaterialRugged Cast Iron
Input RPM1750
ItemGear Drive
LubricationShipped Dry, Recommend .
Max. Input HP30.7
Max. Output Torque3316 in.-lb.
MountingAny Position Except Inp.
Nominal Output RPM583
Nominal Ratio3:1
Number of Stages1
Output Shaft Dia.1-3/8"
Output Shaft Height3-1/16"
Overall Length15.81"
Overhung Load400 lb.
Pinion MaterialHardened Steel
Reducer Model No.88
RotationReversible
Seal TypeHeavy-Duty Industrial
Shaft OrientationRight Angle
Single/Double Output/Un.Double Output
Speed Reducer TypeBevel
StandardsAGMA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG68512752921.941In Stock10Hub City2921.94 @ 1
