Hubbell Wiring Device-Kellems 8300RED

B0761LR868

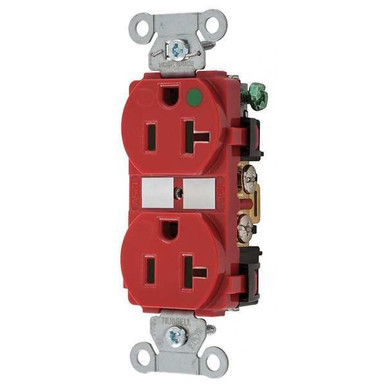

20A Duplex Receptacle 125VAC 5-20R RD

20A Duplex Receptacle 125VAC 5-20R RDzoom

Attributes

Key Value
Additional Electrical P.Standard Protection
Additional Electrical P.Standard Protection
AFCINo
Amperage20 A, 20
Amperage Rating20A, 20 Amp
Amps20
Amps - Plugs and Recept.20 A
ApplicationHubbell-Pro Heavy Duty .
Application EnvironmentHospital Grade
ApprovalsCSA, UL
AWG Range#12 AWG to #10 AWG
BrandHubbell Wiring Device-K.
Brand NameHubbell-Wiring
Carton Quantity10
Catalog PageN/A
ColorRed
Color - Plugs and Recep.Red
Color FamilyRed
CommentsHospital Grade
Conductor Size12-10 AWG Solid/Strande.
Connection OrientationStraight
ConnectivityBack and Side Wired
Contact MaterialBrass
Corrosion ResistantNo
Country of OriginUS - United States, USA
Country Of OriginUnited States of America
Country of Origin (subj.United States
Cover TypeNo Cover
Current Rating20 A
Current Stock57
Degree of ProtectionNo
Dielectric StrengthWithstands 2,000V minim.
Dimensions3.28 in x 1.57 in x 1.1.
Display SizeStandard Sized Product
Display TypeStandard Sized Product
ECCNEAR99
Energy Star FlagNo
Environmental ConditionsV2 Flammability Rated P.
Environmental RatingIndoor Dry Unless Prote.
Face Plate Height2.73 in
Face Plate Width1.569 in
Family SeriesHubbell Plugs & Recepta.
FinishNo
Flange TypeNon-Flanged
For LocationIndoor
GFCINo
GradeHospital Grade Fed. Spe.
Gross Weight0.2 lbs
GroundingGrounding, Grounded
GTIN00783585197401
Height1.15 in., 1.625
Horsepower Rating1 hp
Housing ColorRed
Housing ColourRed
Housing MaterialNylon
HP1 hp
IlluminatedNo
IncludesGrounding Staple, Mount.
Includes Mounting Hardw.Yes
International ShippingNo
Isolated GroundNo
ItemTraditional Duplex, Rec.
Item - Plugs and Recept.Receptacle
Item NameStraight Blade Receptac.
Item Number8300RED
Item?30CZ78
Jacket MaterialNo
Key Resistance Properti.Standard Resistance
Length3.28 in., 4.125
ManufacturerHubbell
Manufacturer NameHubbell-Wiring
Manufacturer Part Number8300RED
MaterialNylon Face and PBT Base.
Maximum Horsepower1
Maximum Load Capacity1 hp
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size10 AWG
Mfr. Model?8300RED
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size12 AWG
Mount Hole Center-to-Ce.3.281 in
Mount TypeFlush
Mounting Hardware Mater.Screw Mounting
Mounting TypeFlush
Mounting Type - Plugs a.Flush
Mpn8300RED
Multimedia OutletNo
NEMA Configuration5-20, NEMA 5-20R, 5-20R
NEMA Enclosure Rating1
Nema Rating5-20R
NEMA Receptacle Configu.5-20R
NEMA Receptacle Configu.5-20R
Net Weight0 lbs
No. of Poles2
No. of Wires3
Number of Gangs1
Number Of Outlets2
Number of Poles2
Number Of Poles2-Pole
Number of Poles & Wires2 Pole / 3 Wire
Number Of Wires3-Wire
Number of Wires3.0000, 3
Operating TemperatureMaximum continuous 75?C.
Outlet TypeDuplex
Outlet Type - Plugs and.Standard Duplex
Overall Depth1.15 in
Package Quantity1
Phase1, Single, Single Phase
PolarizedYes
Power IndicatorNo
Product TypeReceptacle
Rated Voltage125V AC
Receptacle TypeDuplex, Straight Blade
Resistance PropertiesImpact Resistant
RoHS FlagYes
SeriesHubbell-Pro
ShroudedNo
Size MeasureIN
SKUZO-G6155746
StandardCertified to CSA, C22.2.
StandardsCSA Certified C22.2; Fe.
Strap MaterialGalvanized Steel
StyleDuplex, Smooth Face
Sub BrandHubbell-Pro?
SubCategoryElectrical
Surge ProtectionNo
Surge SuppressionNo
Tamper ResistantNo
Temperature Rating-40 to 75 deg C
Terminal ConnectionBack and Side Wired
TypeHeavy-Duty, Receptacle
UL 94 Flammability Rati.V-2
UNSPSC39121406
UPC78358519740, 7835851974.
UPC Code783585197401
USBNo
Voltage125VAC, 125, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125 Volt, 125V AC, 125 .
Wattage2500 W
Weather ResistantNo
Weather Resistant - Plu.No
Weight0.240
Weight MeasureLB
Width1.57 in., 1.875
Wire Connection LocationBack; Side
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wire Size#12 AWG to #10 AWG
Wiring ConfigurationBack, Side
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com8300RED6.41In StockHUBBELL6.4 @ 1
thumbzoomturtle.comHUB 8300RED7.021In StockHubbell7.02 @ 1
thumbzoomcbtcompany.com8300RED8.171In StockHubbell Wiring Device-Kellems8.17 @ 1
steinerelectric.com80044610.561In StockHubbell Wiring Device-Kellems10.56 @ 1
thumbzoomHD Supply30136111.391In StockHubbell0.2411.39 @ 1
kirbyrisk.com291698011.561In StockHubbell11.56 @ 1
thumbzoomZoroG615574615.751In StockHubbell2.115.75 @ 1
Onlinecomponents.com8300RED16.581In StockHubbell16.58 @ 1
Monarch Electric22795918.141In StockHubbell-Wiring18.14 @ 1
Grainger30CZ7819.671In StockHUBBELL19.67 @ 1
thumbzoomsustainablesupply.comC118498920.591In StockHubbell0.2120.59 @ 1
thumbzoomMRO Supply501623921.712In Stock14Hubbell Wiring21.71 @ 2
thumbzoomGalco8300RED-HBBL22.791In StockHubbell0.222.79 @ 1
AmazonSCB0761LR86823.891In StockHubbell Wiring Device-Kellems23.89 @ 1
thumbzoomsimsupply.comZO-G615574624.62157Hubbell24.62 @ 1
AmazonTPB0761LR86824.971In Stock2HUBBELL WIRING DEVICE-KELLEMS24.97 @ 1
thumbzoomRaptor SuppliesAF9LHK27.47563651In StockHUBBELL WIRING DEVICE-KELLEMS27.4756365 @ 1
Newark94Y521633.331In StockHUBBELL WIRING DEVICES33.33 @ 1
Graybar2562870938.4496117Hubbell Wiring Device - Kellems38.4496 @ 1
grainger.caHBL8300RED75.08463071In StockHUBBELL WIRING DEVICE-KELLEMS0.2175.0846307 @ 1
