Hubbell HBL7567C

B000LEBE4G

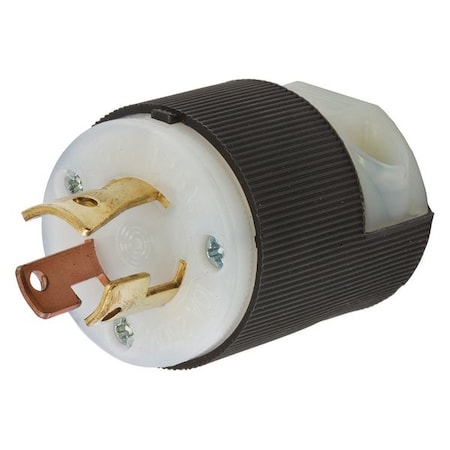

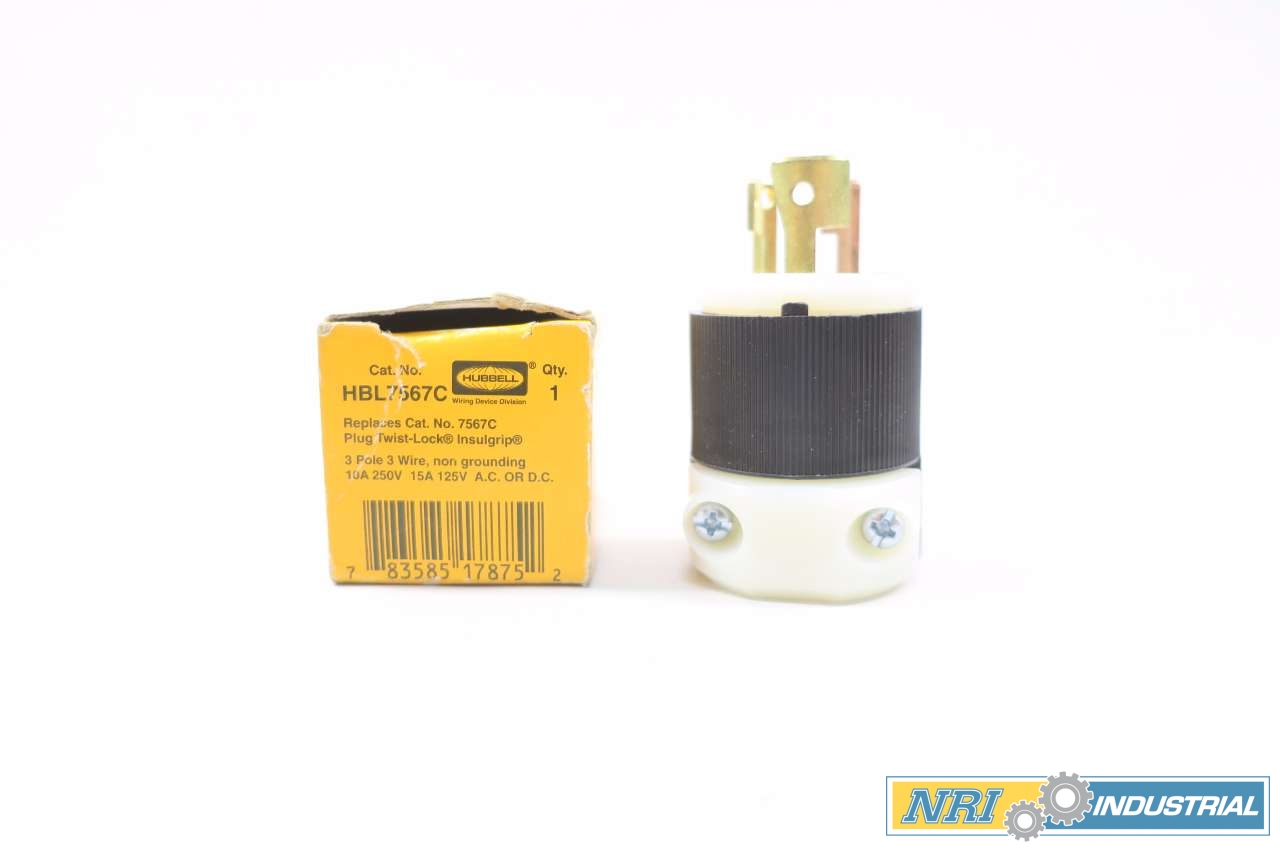

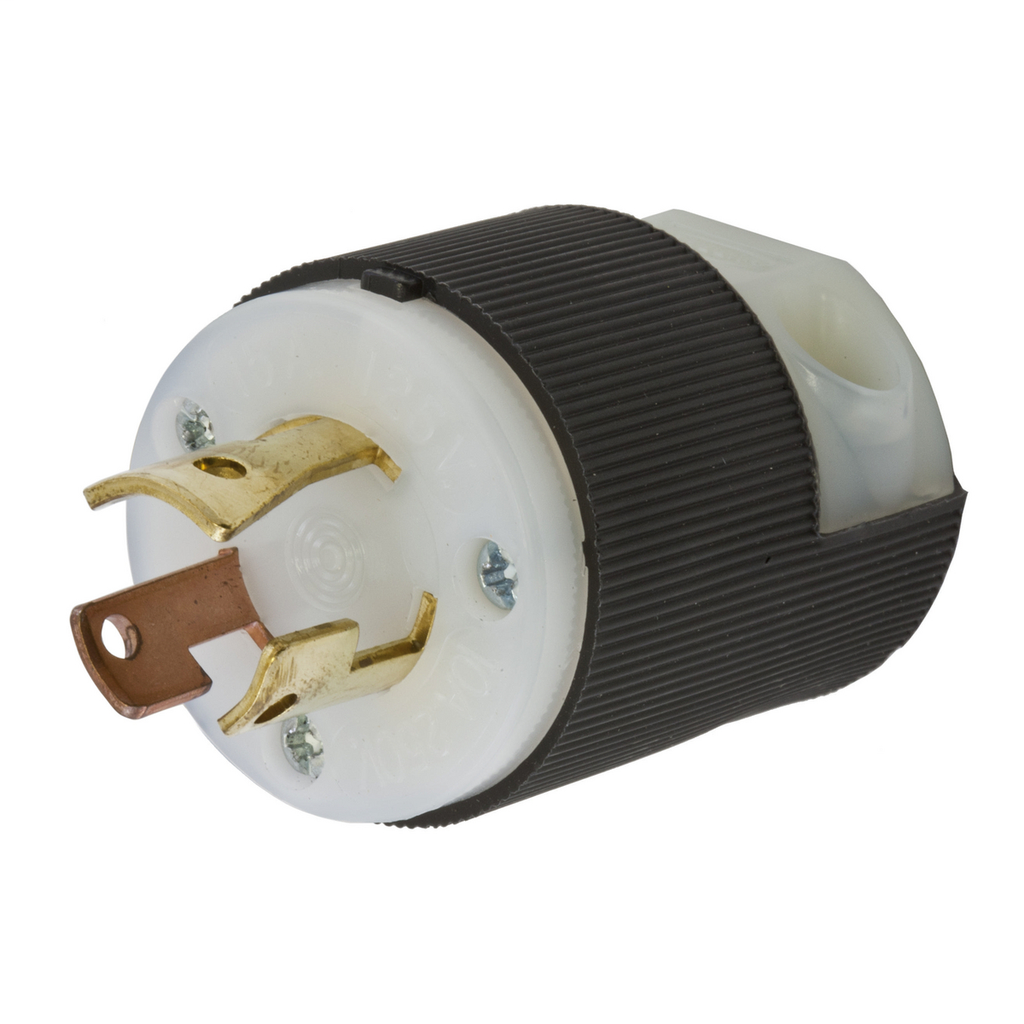

Hubbell HBL7567C AC Plug Non-NEMA 10a 3wire 250v

Hubbell HBL7567C AC Plug Non-NEMA 10a 3wire 250vzoom

Attributes

Key Value
Amperage Rating10 A
Amps15/10
Amps - Plugs and Recept.15/10
AntimicrobialNo
ApplicationExtra Heavy Duty Indust.
AWG Range#18 AWG to #10 AWG
Blade MaterialBrass
Body Length1.53 in
Body TypeStraight
BrandTwist-Lock
Carton Quantity10 EA
ColorBlack/White, Black, Whi.
Color - Plugs and Recep.Black/White
Color FamilyMulti
Connection OrientationStraight
ConnectivityScrew Terminals
Contact TypePin
Cord dia230 in-0.720 in
Cord Range0.230"-0.720"(5.8-18.3)
Cord Size0.230 in to 0.720 in
Cord TypeAll Listed Portables
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.United States
Current / Amperage Rati.10 A
Current Rating15 A, 10A, 10 A, 10 A, .
Dielectric StrengthWithstands 2,000V minim.
Display SizeStandard Sized
Display TypeStandard Sized
ECCNEAR99
Environmental ConditionsIndoor Dry Unless Prote.
Family SeriesHubbell Plugs & Recepta.
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.0.72 in
For Minimum Cable Diame.0.23 in
GradeCommercial ; Industrial.
Grade - Plugs and Recep.Industrial
Gross Weight0.15 lbs
GroundingNon-Grounded
Height1.97 in., 1.97 in
Housing ColorBlack, White
Housing ColourBlack, White
Housing MaterialNylon
IP Rating20, IP20
Isolated GroundNo
ItemLocking Plug
Item - Plugs and Recept.Locking Plug
Item NumberHBL7567C
Item Type10A/15A Insulgrip? Plug
Length1.53 in., 1.53 in
ManufacturerHubbell
Manufacturer Part NumberHBL7567C
MarketIndustrial
MaterialNylon
Material - Mounting Har.Cord Mounted
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size18 AWG
Mounting TypeCable
NEMA ConfigurationNon-NEMA, 3 Blade, Non-.
NEMA Plug ConfigurationNon-NEMA
NEMA Plug Configuration.15A, Non-NEMA
Nema RatingNon-NEMA
NEMA TypeNon-NEMA
Net Weight0 lbs
No. of Poles3
No. of Wires3-Wire Non-Grounding
Number of Blades3
Number of Poles3
Number Of Poles3-Pole
Number Of Wires3-Wire Non-Grounding
Number of Wires3
OEM Brand NameHubbell Wiring Device-K.
Operating TemperatureMaximum continuous 75?C.
Outside Diameter1.527 in
Overall Length1.53 in
Phase1, Single, Single Phase
PolarizedYes
Primary TypeTwist Lock
Rated Voltage250/125V
Resistance PropertiesChemical Resistant, Imp.
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
StandardCertified to CSA C22.2 .
StandardsUL, CSA, UL/CSA
TerminationScrew
TypeLocking Plug
UL 94 Flammability Rati.HB
UNSPSC39121402
UPC783585178752
Voltage2,000V minimum, 125/250.
Voltage - Plugs and Rec.125/250V AC
Voltage Rating125 V, 250/125 V, 125/2.
WatertightNo
Wattage1875 W
Weight0.15 lb
Width1.53 in., 1.53 in
Wire Connection TypeScrew Terminals
Wire Size10-18 AWG, #18 AWG to #.
Wiring StyleStandard
