Hubbell Wiring Device-Kellems BR15GRYTR

B007IB47OO

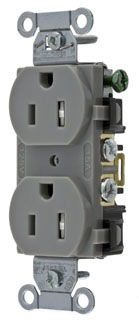

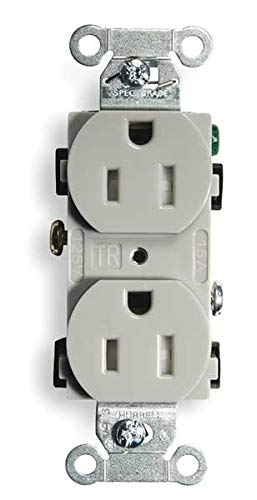

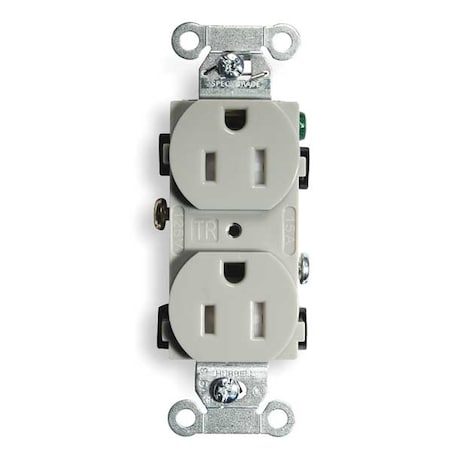

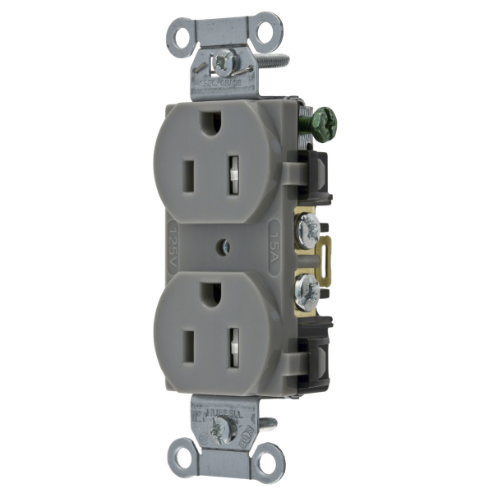

Receptacle, Duplex, 15A, 5-15R, 125V, Gray

Receptacle, Duplex, 15A, 5-15R, 125V, Grayzoom

Attributes

Key Value
Accessory Group-
Additional Electrical P.Standard Protection
Additional Electrical P.Standard Protection
AFCINo
Amperage15 A
Amps15
Amps - Plugs and Recep.15
Amps - Plugs and Recept.15 A
ApplicationCommercial Specificatio.
Application EnvironmentCommercial
ApprovalsCSA, UL
AWG Range#14 AWG to #10 AWG
Boot Code-
BrandHubbell
ColorGray
Color - Plugs and Recep.Gray
Color FamilyGray
CommentsCommercial Specificatio.
Connection OrientationStraight
ConnectivityBack and Side Wired
Contact MaterialBrass
Corrosion ResistantNo
Country of OriginCN - China
Country of Origin (subj.China
Cover TypeNo Cover
Current / amperage rati.15 A
Current Rating15A, 15 A
Current rating15 A
Current Stock97
DescriptionGrounding, Smooth
Dielectric strengthWithstands 2,000V minim.
Dimensions3.3 in x 1.58 in x 1.16.
Display TypeStandard Sized Product
ECCNEAR99
Environmental conditionsIndoor Dry Unless Prote.
Face Plate Height2.73 in
Face Plate Width1.32 in
Family SeriesHubbell Plugs & Recepta.
Flange TypeNon-Flanged
For LocationIndoor
GFCINo
GradeFederal Specification
Gross Weight0.15 lbs
GroundingGrounded
Height1.16 in., 1.16 in
Horsepower Rating1/2 hp
Housing ColorGray
Housing ColourGray
Housing MaterialNylon
HP0.5, 1/2 hp
IncludesGrounding Staple, Mount.
Includes Mounting Hardw.Yes
International ShippingNo
Isolated GroundNo
ItemReceptacle
Item - Plugs and Recept.Receptacle
Item NumberBR15GRYTR
Key Resistance Properti.Tamper Resistant
Lead TimeExpected to ship in 1-2.
Length3.3 in., 3.3 in
ManufacturerHubbell
Manufacturer Part NumberBR15GRYTR
MarketCommercial, Industrial
MaterialNylon
Material - mounting har.Screw Mounting
Max HP0.5
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
Mounting TypeFlush
Mounting Type - Plugs a.Flush
MpnBR15GRYTR
Multimedia OutletNo
NEMA Configuration5-15, 5-15R
NEMA Enclosure Rating1
Nema Rating5-15R
NEMA Receptacle Configu.5-15R
NEMA Receptacle Configu.5-15R
Net Weight0 lbs
No. of Poles2
No. of Wires3-Wire
Number of Gangs1
Number of poles2-Pole
Number of Poles2
Number of Poles & Wires2 Pole / 3 Wire
Number of Wires3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Outlet TypeDuplex
Outlet Type - Plugs and.Standard Duplex
Overall Depth1.16 in
Phase1, Single, Single phase
PolarizedYes
Power IndicatorNo
Primary Resistance Prop.Tamper Resistant - Tamp.
Product TypeReceptacle
Rated Voltage125V
Receptacle TypeDuplex
Resistance PropertiesTamper Resistant
ShroudedNo
SKUZO-G1334846
StandardCertified to CSA C22.2,.
StandardsCertified to CSA C22.2,.
StyleSmooth Face
Sub-CategoryDuplex Receptacles
SubCategoryElectrical
Surge ProtectionNo
Surge SuppressionNo
Tamper ResistantYes
TypeDuplex, Tamper-Resistant
UL 94 Flammability Rati.V-2
UNSPSC39121406
UPC783585144078
USBNo
Voltage125VAC, 125 V, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC
Voltage rating descript.125 V
Wattage1875 W
Weather ResistantNo
Weather Resistant - Plu.No
Width1.58 in.
Width (in)1.58
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wire size#14 AWG to #10 AWG
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comBR15GRYTR4.851In StockHUBBELL4.85 @ 1
Graybar251721276.02561In StockHubbell Wiring Device - Kellems6.0256 @ 1
thumbzoomZoroG13348467.311In StockHubbell1.857.31 @ 1
Onlinecomponents.comBR15GRYTR7.651In StockHubbell7.65 @ 1
thumbzoomMRO Supply10152568.55In StockHubbell Wiring8.5 @ 5
thumbzoomGalcoBR15GRYTR-HBBL8.751In StockHubbell0.158.75 @ 1
kirbyrisk.com224569610.351In StockHubbell10.35 @ 1
thumbzoomsustainablesupply.comC118025411.511In StockHubbell0.1611.51 @ 1
Newark84M895014.111In StockHUBBELL WIRING DEVICES14.11 @ 1
thumbzoomsimsupply.comZO-G133484614.63197Hubbell14.63 @ 1
thumbzoomRaptor SuppliesAC2AJW16.6038211In StockHUBBELL WIRING DEVICE-KELLEMS16.603821 @ 1
grainger.caHBLBR15GRYTR17.7822471In StockHUBBELL WIRING DEVICE-KELLEMS0.1617.782247 @ 1
