mpn:
brand:
manufacturer:
MPN:
Weight:
1.09
Weight:
0.44 LB
Preferred Price:
27.63
Price:
27.63
Min Simple Price:
15.0
Absolute Min Price:
21.48
Min Price:
21.48
Dimensions:
[7.0, 4.0, 2.0]
qty:
21
simpleSku:
MTQwNQ:::GFRST15BK
sku:
MTQwNQ::XZ:GFRST15BK@y0
condition:
11
seller:
standardelectricsupply.com
amzMan:
hubbell
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Additional Electrical Protection | GFCI |
| Additional Electrical Protections | GFCI Protection |
| AFCI | No |
| Amperage Rating | 15A, 15 |
| Amps | 15A |
| Amps - Plugs and Receptacles | 15 |
| Amps - Plugs and Receptacles | 15 A |
| Application Environment | Industrial |
| Approvals | CSA, UL |
| Boat Manufacturer | Tiara Yachts |
| Color | Black |
| Color - Plugs and Receptacles | Black |
| Color Family | Black |
| Comments | Commercial Grade |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Country of Origin | CN - China |
| Country of Origin (subject to change) | China |
| Cover Type | No Cover |
| Current Rating | 15 A |
| Cutout | 2 3/4" L x 1 3/4" W |
| Dimensions | 1.75 in W x 1.47 in D, 3.27 in H x 1.75 in W x 1.47 in D |
| ECCN | EAR99 |
| Electrical | 15A / 125V |
| Face Plate Height | 2.75 in |
| Face Plate Width | 1.75 in |
| Family Series | Hubbell Plugs & Receptacles |
| Features | Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection, Power Indicator, Trip Indicator, Automatically Monitors the Ability to Provide GFCI Protection Every 60 sec, Provides Power Denial If the Unit Can No Longer Provide Protection |
| Flange Type | Non-Flanged |
| Frequency Rating | 60 |
| GFCI | Yes |
| Grade | General Use |
| Gross Weight | 0.35 lbs |
| Grounding | Grounded |
| Horsepower | 1, 1/2 |
| Horsepower Rating | 1/2 hp |
| Housing Color | Black |
| Housing Colour | Black |
| Housing Material | Nylon (Face) |
| HP | 0.5 hp |
| Illuminated | No |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Isolated Ground | No |

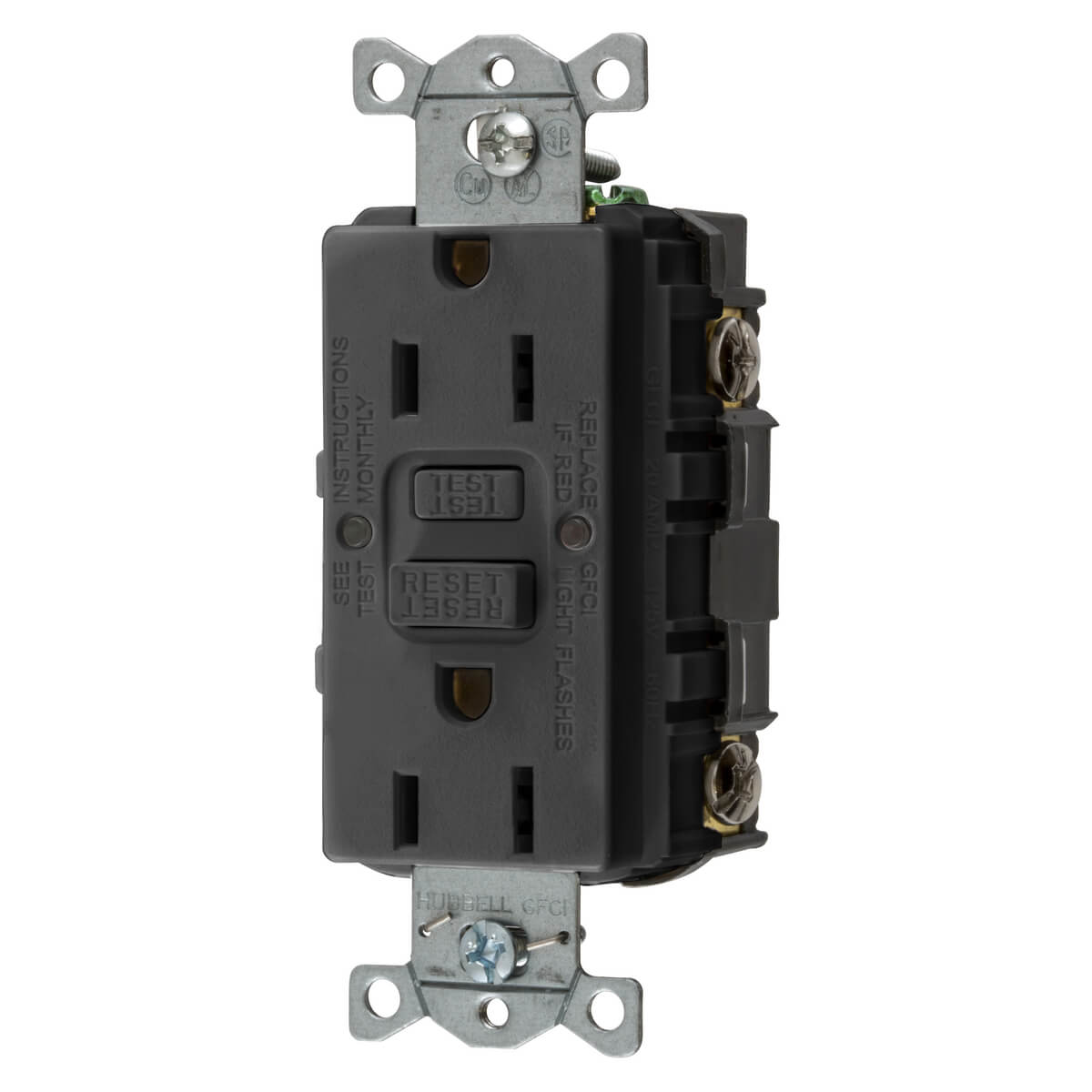

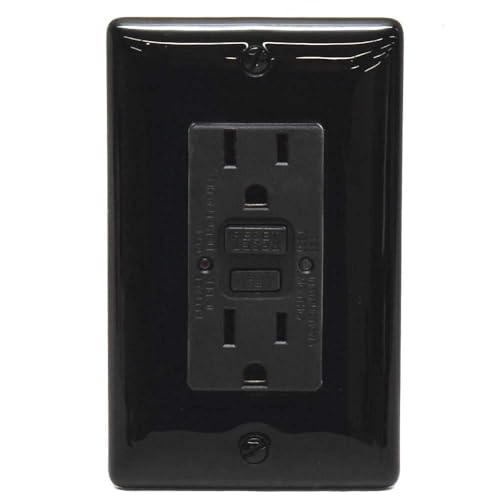

| Item | GFCI Receptacle |
| Item - Plugs and Receptacles | Receptacle |
| Item Number | GFRST15BK |
| Key Resistance Properties | Standard Resistance |
| Manufacturer | Hubbell |
| Manufacturer Part Number | GFRST15BK |
| Market | Commercial, Industrial |
| Material | Composite/Thermoplastic, Thermoplastic/Composite, Plastic |
| Mount Hole Center-to-Center Height | 3.27 in |
| Mount Type | Flush |
| Mounting Type | Flush |
| Mounting Type - Plugs and Receptacles | Flush |
| Mounts | (2) 1/8" Dia. Threaded Mounting Bolts |
| Multimedia Outlet | No |
| NEMA Configuration | 5-15R |
| NEMA Enclosure Rating | 1 |
| NEMA Rating | 5-15R, NEMA 5-15R |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Net Weight | 0 lbs |
| Number of Gangs | 1 |
| Number of Poles | 2 |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Number of Wires | 3 |
| Outlet Type | Decorator |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Overall Dimensions | 4 5/8" L x 2 7/8" W |
| Part Manufacturer | Hubbell |
| Part Number | GFRST15BK |
| Phase | 1, Single |
| Polarized | Yes |
| Power Indicator | No |
| Receptacle Type | Duplex |
| Reset Type | Automatic |
| Self Testing | Yes |
| Self-Testing | Yes |
| Shrouded | No |
| Standard | Meets All NEC? Requirements |
| Standards | UL, CSA, CSA Certified, UL Listed |
| Style | Standard |
| Surge Protection | No |
| Surge Suppression | No |
| Tamper Resistant | No |
| Temperature Rating (Degrees F) | -30 to 150 |
| Terminal Type | Back Wired/Screw, Back/Side Wired Screw, Screw |
| Type | Standard, 1-Phase Auto Grounding Decorator Duplex Heavy Duty Self-Test Standard, 1-Phase Decorator Duplex Self-Test, 1-Phase Decorator Duplex Self-Test Screw Mount |
| UNSPSC | 39121406 |
| UPC | 883778122019 |
| UPC Code | 883778122019 |
| USB | No |
| Voltage | 125VAC, 125 VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| Voltage Rating | 125V AC, 125 |
| Weather Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wiring Method | Back and Side, Back, Side |
| Wiring Method - Plugs and Receptacles | Back and Side |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | standardelectricsupply.com | 2301448 | 15.0 | 15.0 | 1 | In Stock | Hubbell | 15.0 @ Qty: 1+ | ||
 | cbtcompany.com | GFRST15BK | 17.97 | 17.97 | 1 | In Stock | Hubbell Wiring Device-Kellems | 17.97 @ Qty: 1+ | ||
 | Galco | GFRST15BK-HBBL | 18.01 | 18.01 | 1 | In Stock | Hubbell | 0.35 | 18.01 @ Qty: 1+ | |
 | greatlakesskipper.com | 1109135-FA883 | 19.95 | 19.95 | 1 | 6 | Hubbell | 19.95 @ Qty: 1+ | ||
 | Zoro | G0088140 | 23.06 | 23.06 | 1 | In Stock | Hubbell | 0.4 | 23.06 @ Qty: 1+ | |
| steinerelectric.com | 891448 | 25.6 | 25.6 | 1 | In Stock | Hubbell Wiring Device-Kellems | 25.6 @ Qty: 1+ | |||
| Onlinecomponents.com | GFRST15BK | 25.84 | 25.84 | 1 | 25 | Hubbell | 25.84 @ Qty: 1+ | |||
| Graybar | 25712091 | 25.8832 | 25.8832 | 1 | In Stock | Hubbell Wiring Device - Kellems | 25.8832 @ Qty: 1+ | |||
 | sustainablesupply.com | C2890131 | 30.99 | 30.99 | 1 | In Stock | Hubbell Kellems | 0.4 | 30.99 @ Qty: 1+ | |
| grainger.ca | HBLGFRST15BK | 31.12256128 | 31.12256128 | 1 | In Stock | HUBBELL | 0.36 | 31.12256128 @ Qty: 1+ | ||
| kirbyrisk.com | 3135951 | 32.25 | 32.25 | 1 | In Stock | Hubbell | 32.25 @ Qty: 1+ | |||
| us.rs-online.com | 71135391 | 34.11 | 34.11 | 1 | 400 | Hubbell Wiring Device-Kellems | 34.11 @ Qty: 1+ | |||
| Newark | 93Y4513 | 39.67 | 39.67 | 1 | In Stock | HUBBELL WIRING DEVICES | 39.67 @ Qty: 1+ | |||
 | National Supply Network | 54488861 | 46.53 | 46.53 | 1 | In Stock | Hubbell Wiring Device-Kellems | 46.53 @ Qty: 1+ | ||
 | Raptor Supplies | AH8ZZA | 53.744535 | 53.744535 | 1 | In Stock | HUBBELL WIRING DEVICE-KELLEMS | 53.744535 @ Qty: 1+ |
