Hubbell HBL1221GHCS

B00N7GMSCC

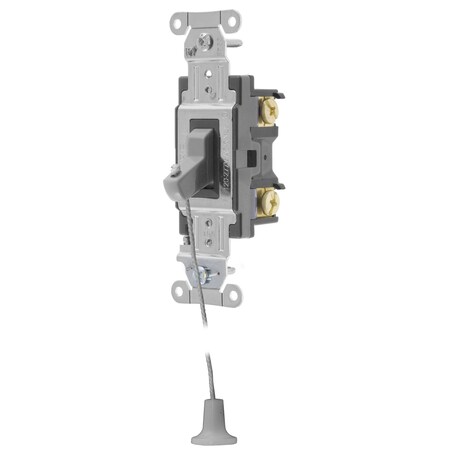

Hubbell HBL1221GHCS 18801 Switch, See Image

Hubbell HBL1221GHCS 18801 Switch, See Imagezoom

Attributes

Key Value
Amperage20 A
ApplicationBack and Side Wired
ApprovalsCSA, UL
Carton Quantity10
ColorGray
CommentsHospital Call Switch wi.
ConnectivityBack and Side Wired
Country of Origin (subj.United States
Current20 A
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric StrengthWithstands 1500V AC min.
Dielectric strengthWithstands 1500V AC min.
Dimensions4.18 in x 1.45 in x 1.8.
Face ColorGray
Family SeriesHubbell Switches
GradeHeavy Duty
Gross Weight0.25 lbs
GroundingScrew
Height1.82 in
HP @ 120 VAC1 hp
HP @ 240 VAC2 hp
IlluminatedNo
Industry Standard(s)UL Listed
Item NumberHBL1221GHCS
Length4.18 in
LockingNo
ManufacturerHubbell
Manufacturer Part NumberHBL1221GHCS
Max Temperature Rise30C maximum at rated cu.
Net Weight0 lbs
Number of polesSingle Pole
Number Of PolesSingle Pole
Operating temperatureMaximum continuous 75C .
OperatorToggle
Operator ColorGray
SeriesHeavy Duty
StyleSingle Pole
Switch ConfigurationSingle Pole
Switch typeBat Handle
Temp. Rise30?C maximum at rated c.
Temperature-40-167 ?F
TypeToggle
Voltage120-277 VAC, 120 VAC, 2.
Voltage Rating120-277 VAC
Voltage rating descript.120-277 VAC
Width (in)1.45
Wire Range#14 to #10 AWG Solid an.
Wire size#14 AWG to #10 AWG
Wire Size#14 AWG to #10 AWG
WiringBack and Side Wired

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL1221GHCS17.261In StockHubbell17.26 @ 1
thumbzoomZoroG30070178921.331In Stock46Hubbell Wiring Device-Kellems21.33 @ 1
thumbzoomMRO Supply101937523.792In StockHubbell Wiring23.79 @ 2
thumbzoomGalcoHBL1221GHCS-HBBL24.491In StockHubbell0.2524.49 @ 1
us.rs-online.com7198442325.221In StockHubbell Wiring Device-Kellems25.22 @ 1
thumbzoomcbtcompany.comHBL1221GHCS26.011In StockHubbell Wiring Device-Kellems26.01 @ 1
Newark93Y591435.81In StockHUBBELL WIRING DEVICES35.8 @ 1
