Hubbell HBL123

B000LEDM2I

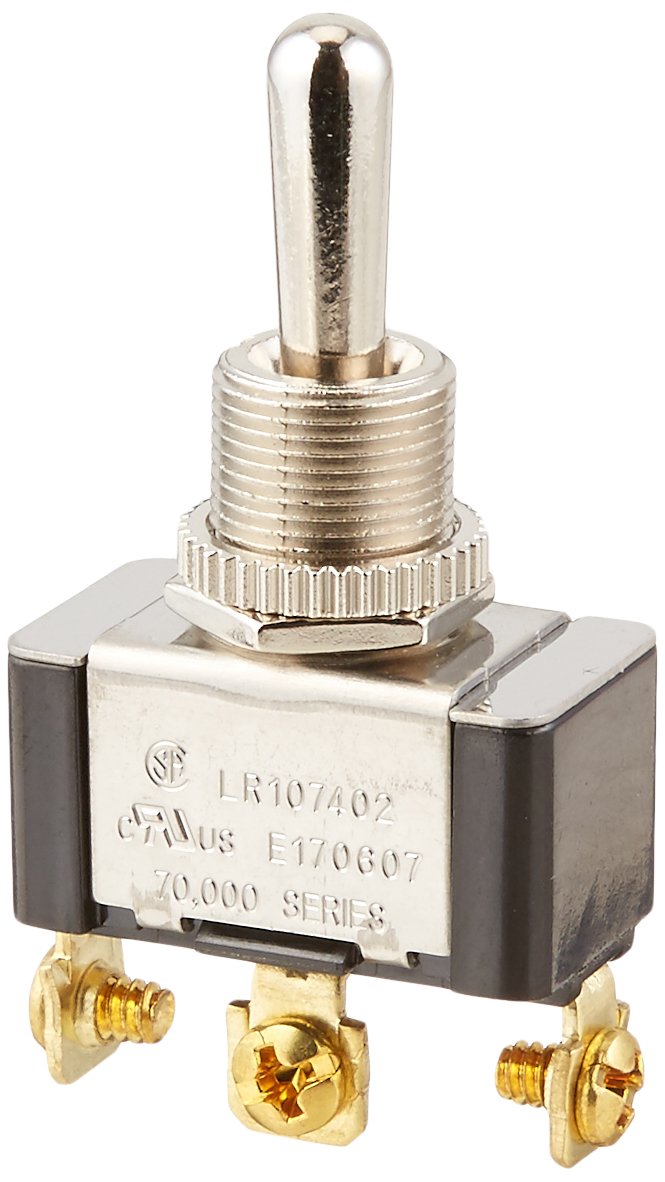

Hubbell HBL123 Panel Switch, Single Pole Double Throw, Screw Terminal

Hubbell HBL123 Panel Switch, Single Pole Double Throw, Screw Terminalzoom

Attributes

Key Value
ActionSPDT
Actuator ColorMetallic
Actuator Length0.65 "
Actuator MaterialNickel Plated Brass
Actuator TypeBat
Amperage10/20 A
Amperage Rating10/20 A
ApprovalsUL
Bushing (Dia.)x(L) (in)15/32 x 0.32 "
Carton Quantity10
Circuit ConfigurationON-OFF-ON
Class CodeA16
ColorMetallic
Color FamilyMetallic
ConnectivityScrew Terminals
ContactsSPDT
Country of OriginCN - China, CN
Current / Amperage Rati.10/20 A
Current / amperage rati.10/20 A
Current Rating10/20 A
Description - InvoicePANEL SW, SPDT, SCREW T.
Dimenions2.15 in. x 0.56 in. x 1.
Dimensions2.15 in x 0.56 in x 1.1.
Each - Height0.800 in
Each - Length3.500 in
Each - Width2.500 in
ECCNEAR99
EU RoHS IndicatorNo
Family SeriesHubbell Switches, TOGGL.
Freight Class Code06168002
Gross Weight0.05 lbs
Harmonization Code8536509040
Height1.12 in
Horsepower - Maximum0.75
HP @ 120 VAC0.75 hp
HP @ 220-250 VAC0.75 hp
IlluminatedNo
Image Actual Or Represe.A
Industry Standard(s)UL Listed
ItemPanel Mount and Bat Han.
Item NumberHBL123
Length2.15 in
Listing and Certificati.UL Recognized
ManufacturerHubbell
Manufacturer Part NumberHBL123
Max HP0.75
Maximum Horsepower0.75
Mounting Hole Size (in)0.5 "
Mounting methodPanel Mount
Mounting MethodPanel Mount
MSDS FlagNo
Net Weight0.05 lbs
No. of PolesSingle Pole
Number Of PolesSingle Pole
Number of polesSingle Pole
Number of PolesSingle Pole
Operating TemperatureMaximum continuous 75?C.
Operating temperatureMaximum continuous 75C .
Operating TemperaturesMax Continuous- 75?C, M.
Operator Type2-Position
Panel Switch StyleSingle Pole, Double Thr.
PerformanceEnvironmental - Operati.
Power Rating10A 250V AC, 20A 125V A.
Product SeriesTOGGLE
Rated Voltage250/125V ac
Rating (A) @ 120/125 VAC20 A
Rating (A) @ 220-250 VAC10 A
Replaced Catalog Number123
SeriesSingle Pole/Double Throw
Size2.15 in x 0.56 in x 1.1.
StandardUL Listed
StyleScrew Terminal
Sub Class CodeA16A240
Switch typeBat Handle
TerminalScrew
Terminal TypeScrew
TerminationScrew Terminals
TypeGeneral Purpose
UNSPSC39122239
Voltage250/125 VAC
Voltage Rating250/125 VAC
Weight0.05 lb.
Width0.56 in
Width (in)0.56

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB000LEDM2I4.31123Hubbell4.31 @ 1
Onlinecomponents.comHBL1235.83128HUBBELL5.83 @ 1
thumbzoomZoroG7007013347.541In StockHubbell Wiring Device-Kellems7.54 @ 1
thumbzoomMRO Supply10196038.295In StockHubbell Wiring8.29 @ 5
thumbzoomgordonelectricsupply.comHBL1238.411In StockHUBBELL8.41 @ 1
thumbzoomGalcoHBL123-HBBL8.531In StockHubbell0.058.53 @ 1
us.rs-online.com719845128.751In StockHubbell Wiring Device-Kellems8.75 @ 1
thumbzoommayerelectric.comHUBHBL12310.781In StockHUBBELL WIRING DEVICES0.0510.78 @ 1
Graybar8812594210.85281In StockHubbell Wiring Device - Kellems10.8528 @ 1
thumbzoomRadwellHBL12312.012HUBBELL KELLEMS12.0 @ 1
Newark35B41313.751In StockHUBBELL WIRING DEVICES13.75 @ 1
