Hubbell HBL223

B00N7GEAZA

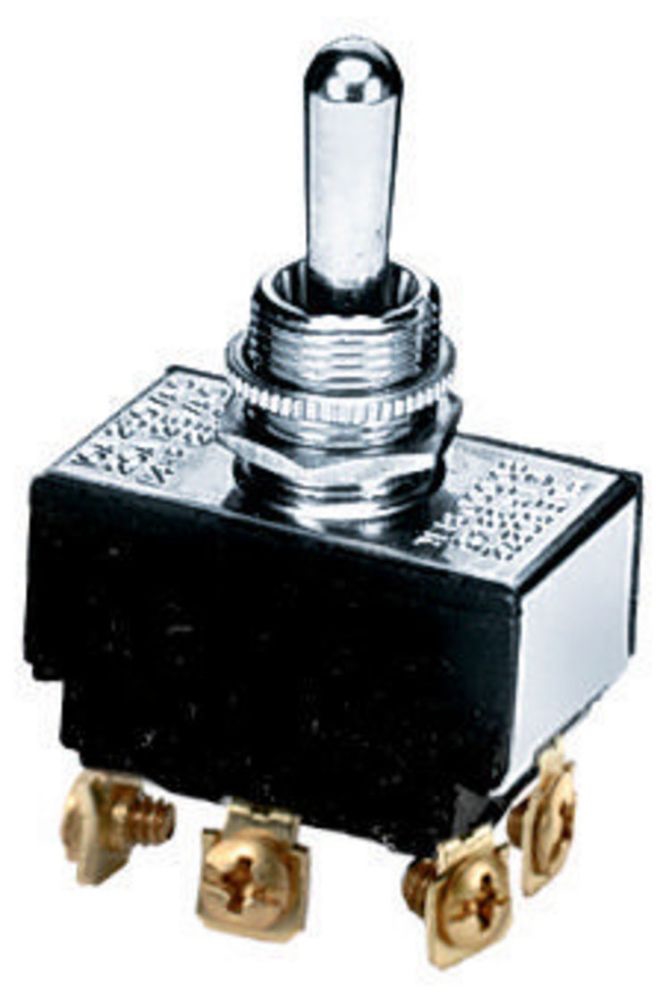

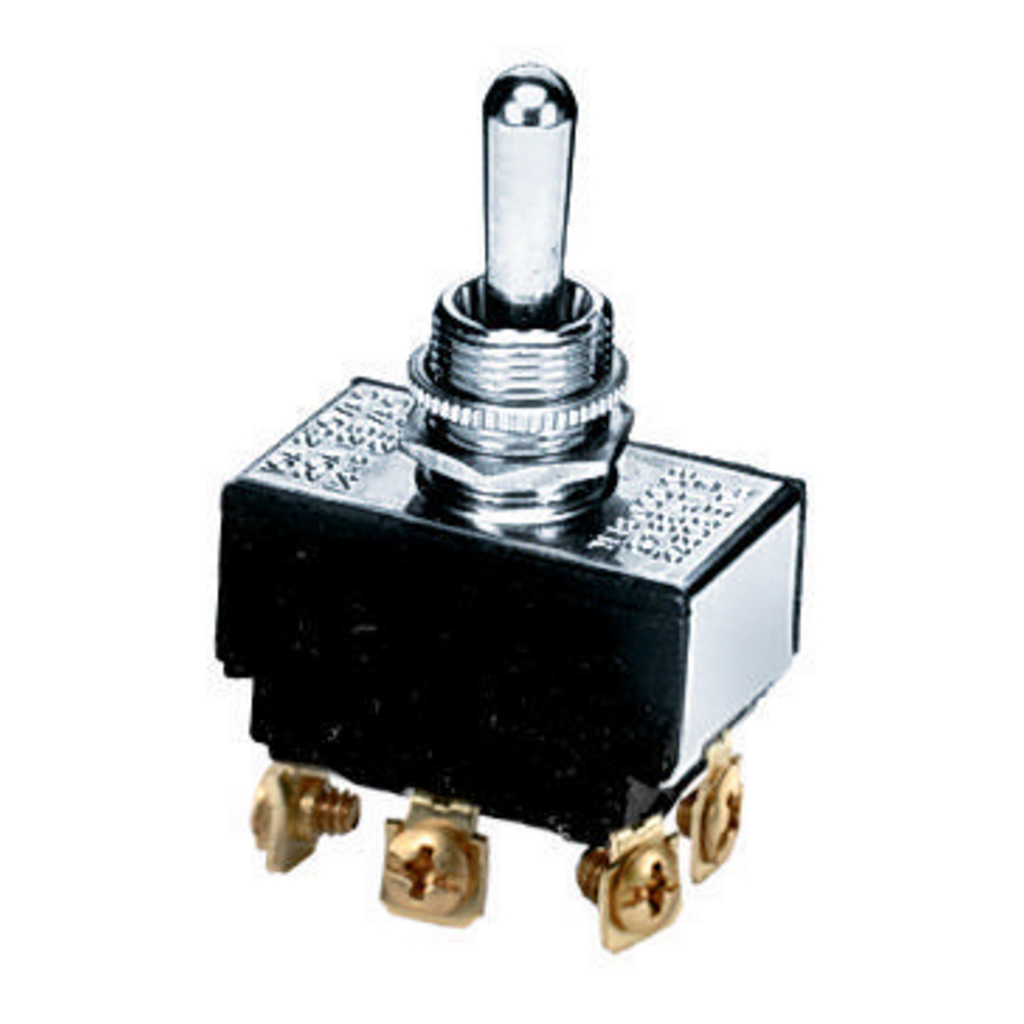

Hubbell HBL223 Panel Switch, Double Pole Double Throw, Center Off, Screw Terminal

Hubbell HBL223 Panel Switch, Double Pole Double Throw, Center Off, Screw Terminalzoom

Attributes

Key Value
ActionDPDT
ActuatorBat Handle
Actuator ColorMetallic
Actuator Length0.64 "
Actuator MaterialNickel Plated Brass
Actuator TypeBat
Amperage10/20 A
Amperage Rating10/20, 10/20 A, 10A, 10.
ApprovalsUL
Bushing (Dia.)x(L) (in)15/32 x 0.32 "
Carton Quantity10
Circuit ConfigurationON-OFF-ON
Class CodeA16
ColorMetallic
ConnectivityScrew Terminals
Contact Configuration3-Position, DPDT
ContactsDPDT
Country of OriginCN - China, US
Current / Amperage Rati.10/20 A
Current Rating10/20 A
Description - InvoicePANEL SW, DPDT, CTR OFF.
Dimenions2.27 in. x 0.76 in. x 1.
Dimensions2.27 in H x 0.76 in W x.
Each - Height0.800 in
Each - Length3.500 in
Each - Width3.000 in
ECCNEAR99
Environmental Conditions-40 to 75 deg C, -40 to.
EU RoHS IndicatorNo
Family SeriesHubbell Switches, TOGGL.
Freight Class Code06168002
Gross Weight0.1 lbs
Harmonization Code8536509040
Height1.3 in
Horsepower - Maximum1.5
HP @ 120 VAC1.5 hp
HP @ 220-250 VAC1.5 hp
IlluminatedNo
Image Actual Or Represe.A
Industry Standard(s)UL Listed
ItemPanel Mount and Bat Han.
Item NumberHBL223
Length2.27 in
ManufacturerHubbell
Manufacturer Part NumberHBL223
MaterialThermoplastic
Maximum Horsepower1.5
MountingPanel
Mounting Hole Size (in)0.5 "
Mounting MethodPanel Mount
MSDS FlagNo
Net Weight0.1 lbs
No. of Poles2
Number Of PolesDouble Pole
Number of PolesDouble Pole, 2
Operating TemperatureMaximum continuous 75?C.
Operator TypeMaintained ON-OFF-ON
PerformanceEnvironmental - Operati.
Power Rating2500 W, 2500 W, 1-1/2 hp
Product SeriesTOGGLE
Rated Voltage250/125V ac
Rating (A) @ 120/125 VAC20 A
Rating (A) @ 220-250 VAC10 A
Replaced Catalog Number223
SeriesDouble Pole/Double Throw
Size2.27 in x 0.76 in x 1.3.
StandardUL Listed
StyleScrew Terminal
Sub Class CodeA16A240
Switch Contact OperationDPDT
Switch typeBat Handle
Terminal TypeScrew
TerminationScrew Terminals
Type3-Position Commercial G.
UNSPSC39122239
Voltage Rating125/250 VAC, 250/125, 2.
Weight0.1 lb.
Width0.76 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL2239.011In StockHubbell9.01 @ 1
thumbzoomZoroG20070159912.851In Stock39Hubbell Wiring Device-Kellems12.85 @ 1
thumbzoomstandardelectricsupply.com225475912.861In StockHubbell12.86 @ 1
thumbzoomMRO Supply102031212.863In StockHubbell Wiring12.86 @ 3
thumbzoomgordonelectricsupply.comHBL22313.051In StockHUBBELL13.05 @ 1
thumbzoomGalcoHBL223-HBBL13.241In StockHubbell0.113.24 @ 1
us.rs-online.com7198464413.671In StockHubbell Wiring Device-Kellems13.67 @ 1
thumbzoomcbtcompany.comHBL22314.061In StockHubbell Wiring Device-Kellems14.06 @ 1
thumbzoomCarlton Bates Company7835850171316.121In StockHUBBELL16.12 @ 1
Graybar8812616616.217612Hubbell Wiring Device - Kellems16.2176 @ 1
thumbzoommayerelectric.comHUBHBL22316.731In StockHUBBELL WIRING DEVICES0.116.73 @ 1
thumbzoomNewark35B49026.641In StockHUBBELL WIRING DEVICES26.64 @ 1
kirbyrisk.com182398228.61In StockHubbell28.6 @ 1
