Hubbell HBL2410SR

B007IA2ESG

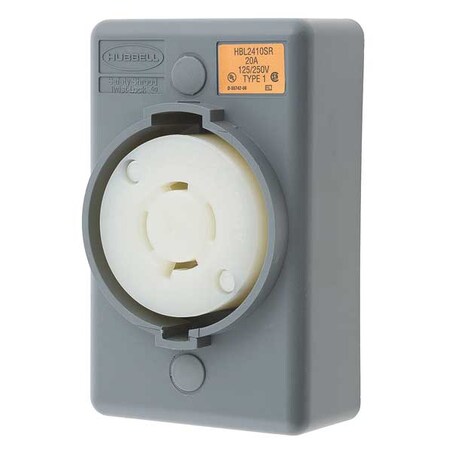

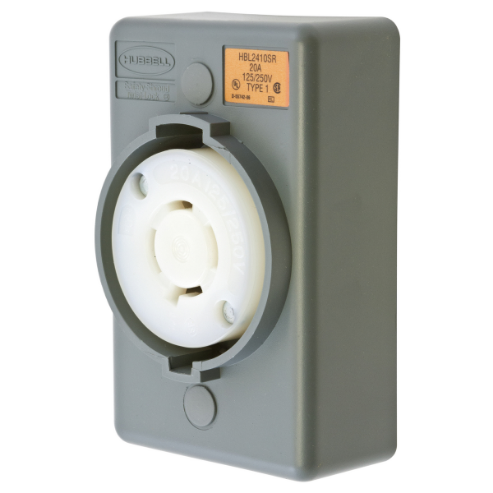

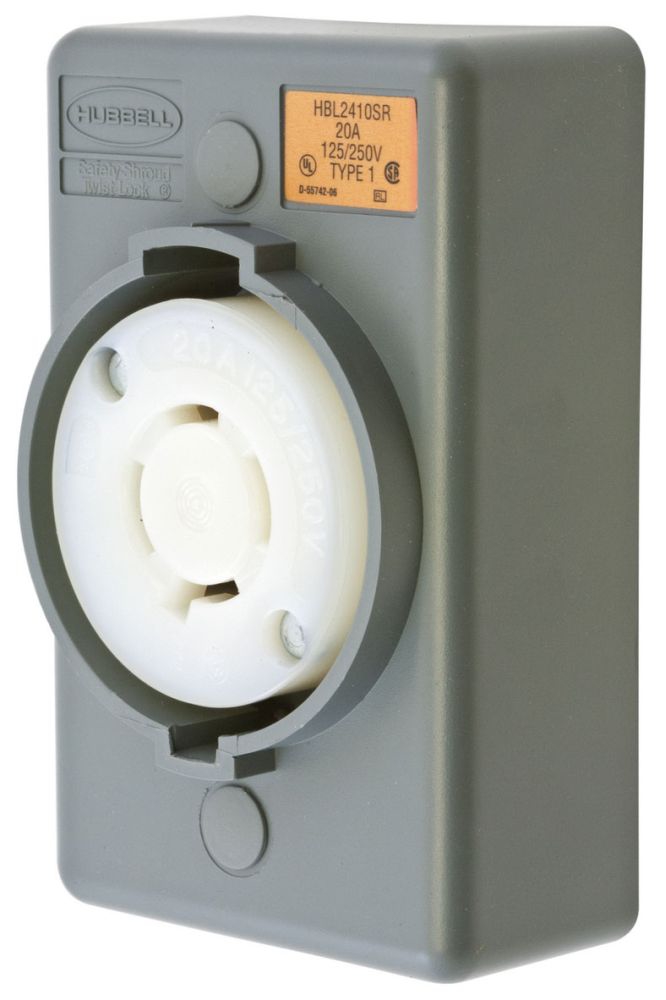

Hubbell - HBL2410SR - Receptacle, 250V, 20A, L14-20R, 3P, 4W, 1PH

Hubbell - HBL2410SR - Receptacle, 250V, 20A, L14-20R, 3P, 4W, 1PHzoom

Attributes

Key Value
AFCINo
Amperage Rating20A
Amps20
ApplicationHeavy Duty Industrial S.
AWG Range#16 AWG to #8 AWG
BrandTwist-Lock
ColorGray
Color FamilyGray
Connection OrientationStraight
Contact MaterialBrass
Country of OriginUS - United States
Country of Origin (subj.United States
Cover TypeNo Cover
Current Rating20 A
Display TypeStandard Sized Product
ECCNEAR99
Flange DiameterNot Applicable
Flange HeightNot Applicable
Flange TypeNon-Flanged
Flange WidthNot Applicable
For EnvironmentDry
For LocationIndoor
GradeIndustrial, Marine
GroundingGrounded
Height1.71 in.
Horsepower Rating2 hp
Housing ColorGray
Housing MaterialValox
HP1 Line to Neutral, 2 Li.
IP Rating66
ItemLocking Receptacle
Length4.56 in.
MarketIndustrial
MaterialNylon
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size16 AWG
Mount TypeSurface
Mounting TypeSurface Mount
NEMA ConfigurationL14-20R
NEMA Enclosure Rating1
NEMA Rating12, 4, 4X
NEMA Receptacle Configu.L14-20R
No. of Poles3
No. of Wires4
Number of Gangs1
Number of Poles3
Number of Wires4
Phase1
PolarizedYes
Product TypeLocking Receptacle
Rated Voltage125/250V
Resistance PropertiesCorrosion Resistant, Im.
ShroudedYes
Shrouded / Non-ShroudedShrouded
Special FeaturesCorrosion resistant
StandardCertified to CSA C22.2 .
StandardsUL/CSA/Fed Spec WC596
TypeSurface Mount Receptacle
UL 94 Flammability Rati.V-2
UNSPSC39121406
VoltageWithstands 2,000V minim.
Voltage Rating125/250V AC
Width2.84 in.
Wire Connection TypeScrew Terminals
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG303080637.061In StockHubbell0.537.06 @ 1
Onlinecomponents.comHBL2410SR49.331In StockHubbell Wiring Device-Kellems49.33 @ 1
thumbzoomsustainablesupply.comC119888149.381In StockHubbell0.549.38 @ 1
thumbzoomMRO Supply102070952.361In StockHubbell Wiring52.36 @ 1
thumbzoomgordonelectricsupply.comHBL2410SR53.151In StockHUBBELL53.15 @ 1
thumbzoomturtle.comHUB HBL2410SR60.681In StockHubbell60.68 @ 1
Graybar9602245665.49761In StockHubbell Wiring Device - Kellems65.4976 @ 1
thumbzoombscsource.comHBL2410SR69.391In StockHubbell Wiring Device-Kellems69.39 @ 1
steinerelectric.com31362073.01In StockHubbell Wiring Device-Kellems73.0 @ 1
thumbzoomNewark35B51981.731In StockHUBBELL WIRING DEVICES81.73 @ 1
kirbyrisk.com180466186.941In StockHubbell86.94 @ 1
thumbzoomNational Supply Network7312238487.721In StockHubbell Wiring Device-Kellems87.72 @ 1
thumbzoomRaptor SuppliesAD6ZHE116.46139051In StockHUBBELL WIRING DEVICE-KELLEMS116.4613905 @ 1
