Hubbell HBL3100CS1W

B00NGH9LY0

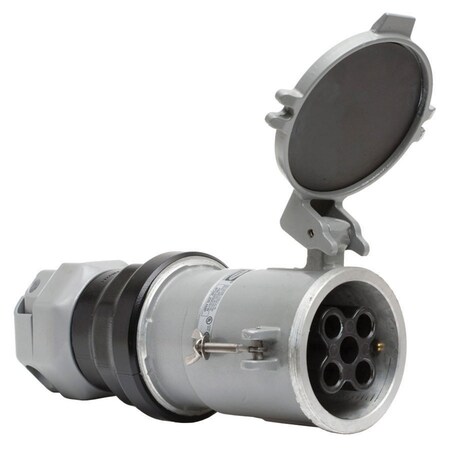

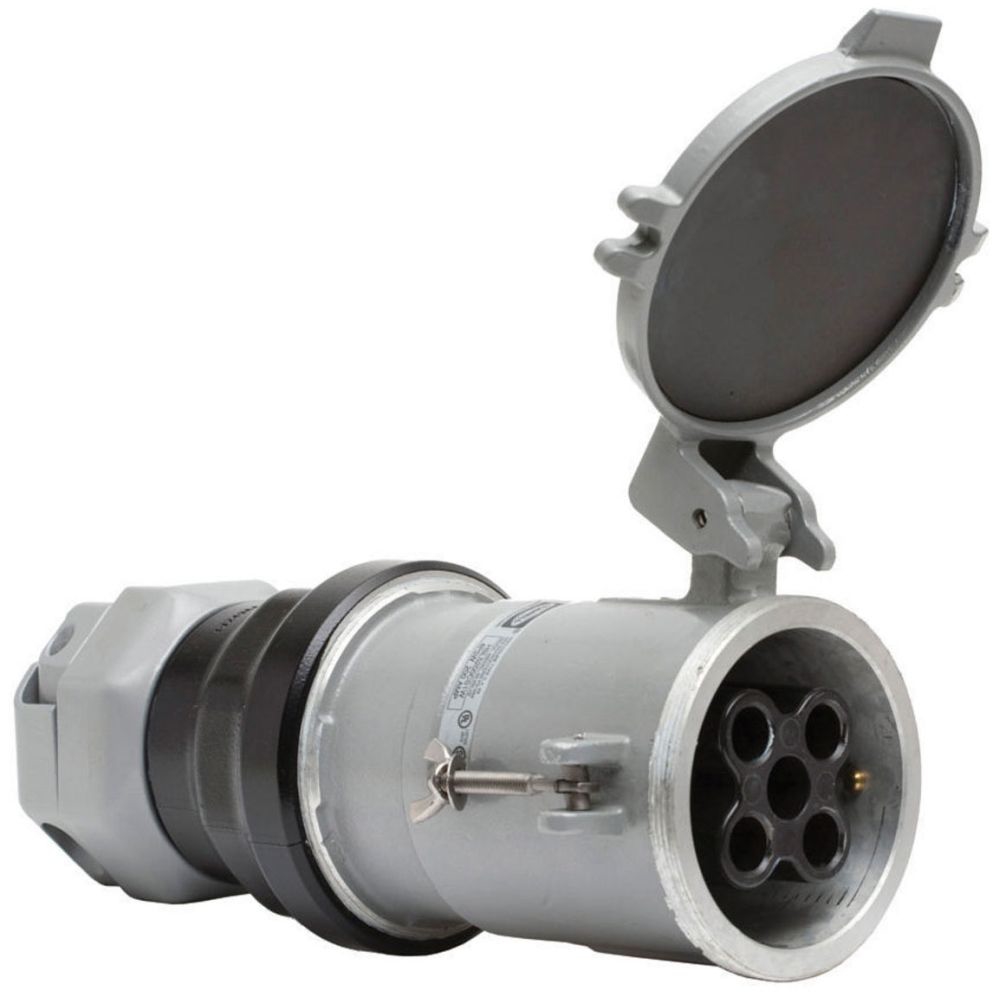

Hubbell HBL3100CS1W Pin and Sleeve Watertight Insulgrip Connector, 2 Pole, 3 Wire, Standard S1 Service, 100 amp, 600V

Hubbell HBL3100CS1W Pin and Sleeve Watertight Insulgrip Connector, 2 Pole, 3 Wire, Standard S1 Service, 100 amp, 600Vzoom

Attributes

Key Value
Amperage100 A
Amperage Rating100
ApplicationMetallic with Nylon Shr.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
BrandHubbell Wiring Device -.
Built-In Strain ReliefYes
Case MaterialNon-Metallic
Catalog NumberHBL3100CS1W
ColorBlack and Gray
Conductor range#4 AWG to #2 AWG
Connection DescriptionWater Resistant
ConnectivityPressure Terminal Screws
Current / amperage rati.100 A
Current Rating100 A
Current rating100 A
Display sizeStandard
Environmental conditionsWatertight
Family SeriesHubbell Plugs & Recepta.
Gross Weight3.95 lbs
GTIN00783585010922
InsulationInsulated Body
Item NumberHBL3100CS1W
Item typeStandard
Lockout-TagoutNo
ManufacturerHubbell wiring device-k.
Manufacturer Part NumberHBL3100CS1W
MaterialComposite
Material - mounting har.Cord Mounted
MountingCord
Nema RatingNon-NEMA
Net Weight0 lbs
Number of conductors3-Wire Grounding
Number of poles2-Pole
Number of Poles2
Number of wires3-Wire
Number of Wires3
OEM brand nameHubbell wiring device-k.
Package Quantity1
Product SeriesInsulgrip
SeriesUL 1686 Class 1 Insulgr.
StyleStandard Service,Style .
Temperature Range (F)-40-167 ?F
Temperature rating-40 C w/o impact, -25 w.
Terminal TypeScrew
UPC783585010922
Voltage600 V, 600 VAC/250 VDC
Voltage Color CodeBlack, Gray
Voltage Rating600 VAC/250
Voltage rating descript.600V AC/250V DC
Wire Size2 AWG, 3 AWG, 4 AWG
Wire Size Range4-2 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL3100CS1W427.311HUBBELL427.3 @ 1
thumbzoomZoroG600701694675.991In Stock53Hubbell Wiring Device-Kellems675.99 @ 1
thumbzoomMRO Supply1021909676.01In StockHubbell Wiring676.0 @ 1
thumbzoomgordonelectricsupply.comHBL3100CS1W735.151In StockHUBBELL735.15 @ 1
thumbzoomGalcoHBL3100CS1W-HBBL745.591In StockHubbell3.95745.59 @ 1
us.rs-online.com71982034768.121In StockHubbell Wiring Device-Kellems768.12 @ 1
Newark14C5116866.971In StockHUBBELL WIRING DEVICES866.97 @ 1
thumbzoomcrescentelectric.com336315900.981In StockHubbell Wiring Device - Kellems900.98 @ 1
kirbyrisk.com19253821121.191In StockHubbell1121.19 @ 1
