Hubbell HBL415

B00N75FS8Y

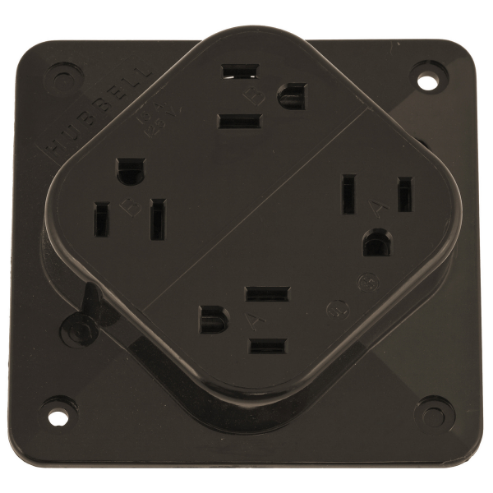

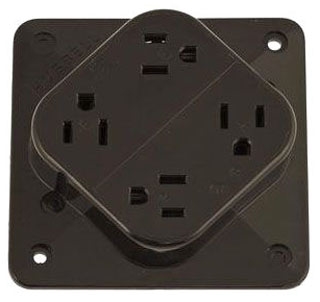

Hubbell HBL415 Connector Power

Hubbell HBL415 Connector Powerzoom

Attributes

Key Value
Additional Electrical P.Standard Protection
Additional Electrical P.Standard Protection
AFCINo
Amperage15A
Amperage Rating15A
Amps15
Amps - Plugs and Recep.15
Amps - Plugs and Recept.15 A
ApplicationIndustrial
Application EnvironmentCommercial
AWG Range#14 AWG to #12 AWG
ColorBrown
Color - Plugs and Recep.Brown
Color FamilyBrown
Connection OrientationStraight
Contact MaterialBrass
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.United States
Cover TypeNo Cover
Current Rating15 A
Display TypeStandard Sized Product
ECCNEAR99
Face Plate Height4.3 in
Face Plate Width4.3 in
Flange TypeNon-Flanged
For LocationIndoor
GFCINo
GradeFederal Specification
GroundGrounding
GroundingGrounded
Height4.3 in.
Horsepower Rating1/2 hp
Housing ColorBrown
Housing ColourBrown
Housing Materialpolycarbonate
HP0.5, 1/2 hp
Includes4-PLEX Adapter Plate, 4.
ItemReceptacle
Item - Plugs and Recept.Receptacle
Key Resistance Properti.Standard Resistance
Length4.3 in.
MarketCommercial, Industrial
Materialpolycarbonate
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size12 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.38 in
Mount Hole Center-to-Ce.3.38 in
Mount TypeSurface
Mounting TypeSurface
Mounting Type - Plugs a.Surface
NEMA Configuration5-15R
NEMA Enclosure Rating1
NEMA Receptacle Configu.5-15R
NEMA Receptacle Configu.5-15R
No. of Poles2
No. of Wires3
Number of Gangs2
Number of Outlets4
Number of Poles2
Number of Poles & Wires2 Pole / 3 Wire
Number of Wires3
Outlet TypeQuad
Outlet Type - Plugs and.Quad
Overall Depth4.3 in
Phase1, Single
PolarizedYes
Power IndicatorNo
Primary Resistance Prop.15 A
Product TypeReceptacle
Rated Voltage125V
Receptacle TypeQuad
ShroudedNo
StandardCertified to CSA 22.2, .
StandardsCSA, CSA Certified, UL .
Sub-CategoryFour Outlet Receptacles
Surge ProtectionNo
Surge SuppressionNo
Tamper ResistantNo
UL 94 Flammability Rati.V-2
UNSPSC39121406
Voltage125V, 125VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC
Weather ResistantNo
Weather Resistant - Plu.No
Width0.92 in.
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wiring MethodBack
Wiring Method - Plugs a.Back

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB000LF6PH619.991In StockHubbell19.99 @ 1
Onlinecomponents.comHBL41524.413HUBBELL24.4 @ 1
Grainger6C55931.11360HUBBELL WIRING DEVICE-KELLEMS31.1 @ 1
standardelectricsupply.com225668831.361In StockHubbell31.36 @ 1
thumbzoomMRO Supply102253931.362In StockHubbell Wiring31.36 @ 2
thumbzoomgordonelectricsupply.comHBL41531.471In StockHUBBELL31.47 @ 1
AmazonTPB0078RJH5M32.081In Stock2Hubbell Wiring Device-Kellems32.08 @ 1
thumbzoomZoroG098383234.113Hubbell0.434.1 @ 1
steinerelectric.com9144739.191In StockHubbell Wiring Device-Kellems39.19 @ 1
Graybar9213069939.22241In StockHubbell Wiring Device - Kellems39.2224 @ 1
thumbzoomsustainablesupply.comC120890942.761In StockHubbell0.442.76 @ 1
Newark35B63447.21In StockHUBBELL WIRING DEVICES47.2 @ 1
thumbzoombscsource.comHBL41557.191In StockHubbell Wiring Device-Kellems57.19 @ 1
thumbzoomNational Supply Network5403122459.51In StockHubbell Wiring Device-Kellems59.5 @ 1
kirbyrisk.com193687362.171In StockHubbell62.17 @ 1
grainger.caHBLHBL41569.249150461In StockHUBBELL WIRING DEVICE-KELLEMS0.469.24915046 @ 1
thumbzoomRaptor SuppliesAE7ZFW76.59434251In StockHUBBELL WIRING DEVICE-KELLEMS76.5943425 @ 1
