Hubbell HBL4200PS1W

B00NGPR0OA

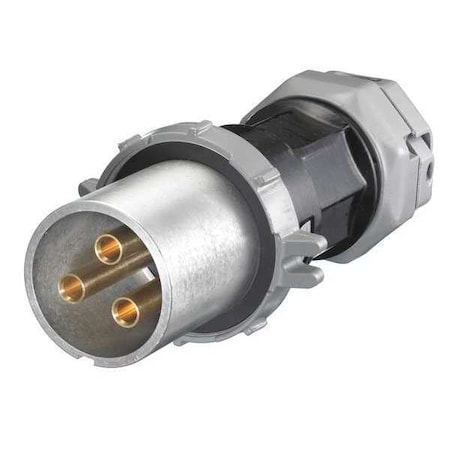

Hubbell HBL4200PS1W Pin and Sleeve Insulgrip Plug, 3 Pole, 4 Wire, 200 amp, 600V, S1

Hubbell HBL4200PS1W Pin and Sleeve Insulgrip Plug, 3 Pole, 4 Wire, 200 amp, 600V, S1zoom

Attributes

Key Value
Amperage200A
Amperage Rating200, 200A
ApplicationMetallic with Nylon Shr.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
AWG Range#1 AWG to #250MCM
Built-In Strain ReliefYes
Cap TypeNo Cap or Cover
Case MaterialNon-Metallic
ColorBlack/Gray
Color FamilyMulti
Connection DescriptionWater Resistant
Connection OrientationStraight
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.United States
Current Rating200 A
Dimensions6.35 in Dia x 11.13 in L
Display TypeStandard Sized
ECCNEAR99
Family SeriesHubbell Plugs & Recepta.
For Maximum Cable Diame.2.5 in
For Minimum Cable Diame.1 in
Frequency Rating50/400
Gross Weight10.69 lbs
GroundingGrounded
Housing ColorBlack, Gray
Housing MaterialNon-Metallic
IP RatingNot Rated
ItemPlug
Item NumberHBL4200PS1W
Lockout-TagoutNo
ManufacturerHubbell
Manufacturer Part NumberHBL4200PS1W
MarketIndustrial
MaterialComposite
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size250 kcmil
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size1 AWG
NEMA Enclosure Rating4X
NEMA RatingNEMA 4X
Net Weight9.845 lbs
No. of Poles3
No. of Wires4
Number of Poles3
Number of Wires4
Outside Diameter6.7 in
Overall Length11.13 in
Pin & Sleeve StandardsUL 1682
Power Indicating LightNo
Product SeriesInsulgrip
Rated Voltage600V ac/250V dc
Resistance PropertiesImpact Resistant, Moist.
Reverse ServiceNo
ShroudedYes
StandardCSA Certified to CSA Sp.
StyleStandard Service,Style .
Switch RatedNo
Temperature Range (F)-40-167 ?F
Temperature Rating (Deg.-40
Terminal TypeScrew, Pressure Screw
TypeType 1 Grounding Heavy .
UL 94 Flammability Rati.V-0
UNSPSC39121402
Voltage600 V, 250V DC/600V AC
Voltage Color CodeBlack, Gray
Voltage Rating250V DC, 600V AC, 600 V.
Wire Connection TypeScrew Terminals
Wire Size1 AWG, 1/0 AWG, 2/0 AWG.
Wire Size Range1 AWG-250 MCM

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL4200PS1W716.751In StockHubbell716.75 @ 1
thumbzoomMRO Supply10225841169.331In StockHubbell Wiring1169.33 @ 1
thumbzoomstandardelectricsupply.com23438701252.861In StockHubbell1252.86 @ 1
thumbzoomGalcoHBL4200PS1W-HBBL1308.961In StockHubbell10.691308.96 @ 1
thumbzoomZoroG08642301398.821In StockHubbell11.01398.82 @ 1
Graybar982905631444.25121In StockHubbell Wiring Device - Kellems1444.2512 @ 1
us.rs-online.com719820871471.841In StockHubbell Wiring Device-Kellems1471.84 @ 1
steinerelectric.com914281560.621In StockHubbell Wiring Device-Kellems1560.62 @ 1
thumbzoombow.com6340101754.01In StockHUBBELL WIRING1754.0 @ 1
kirbyrisk.com5002421939.411In StockHubbell1939.41 @ 1
thumbzoomNewark14C53301955.711In StockHUBBELL WIRING DEVICES1955.71 @ 1
