Hubbell HBL5362IWR

B00N8ZFG4O

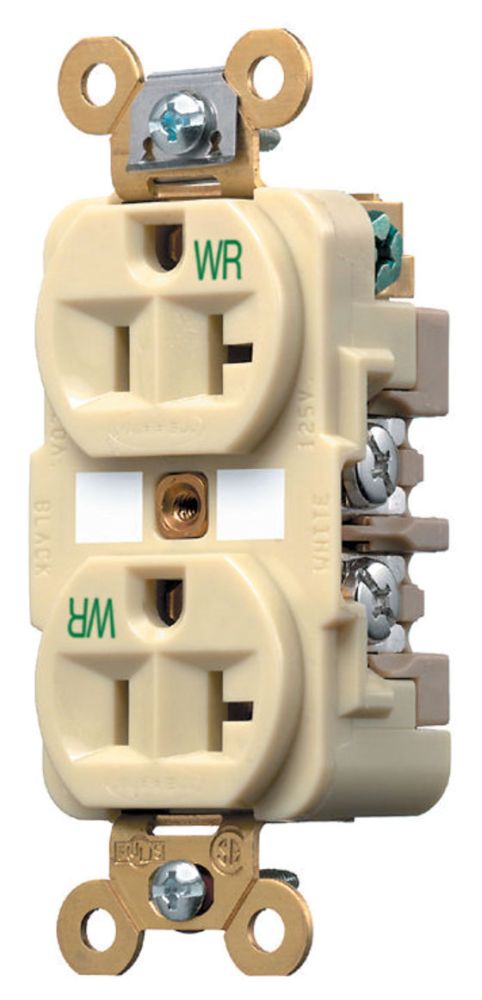

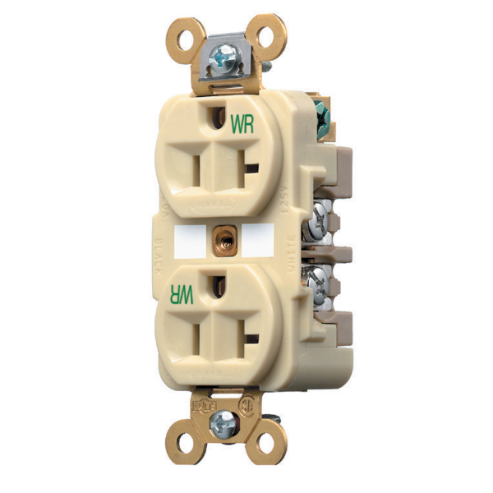

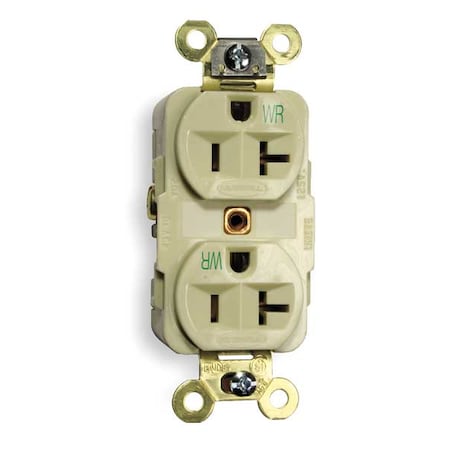

Hubbell HBL5362IWR Weather Resistant Receptacle, Duplex, Straight Blade, HD Specification, 20 amp, 125V, Ivory

Hubbell HBL5362IWR Weather Resistant Receptacle, Duplex, Straight Blade, HD Specification, 20 amp, 125V, Ivoryzoom

Attributes

Key Value
Accessory Group-
Additional Electrical P.Standard Protection
Additional Electrical P.Standard Protection
AFCINo
Amperage20 A
Amperage Rating20A
Amps20
Amps - Plugs and Recep.20
Amps - Plugs and Recept.20 A
ApplicationExtra Heavy Duty Specif.
Application EnvironmentHarsh and Heavy Use Ind.
ApprovalsCSA, UL
AWG Range#12 AWG to #10 AWG
Boot Code-
BrandHubbell Wiring Device-K.
Carton Quantity10
ColorIvory
Color - Plugs and Recep.Ivory
Color FamilyIvory
CommentsExtra Heavy Duty
Connection OrientationStraight
ConnectivityBack and Side Wired Scr.
Contact MaterialNickel-Plated Brass
Corrosion ResistantNo
Country of OriginUS - United States
Cover TypeNo Cover
Current / amperage rati.20 A
Current Rating15 A, 20 A
DescriptionFinder Groove, Grounding
Dielectric StrengthWithstands 2,000V minim.
Dielectric strengthWithstands 2,000V minim.
Dimensions3.28 in x 1.65 in x 1.1.
Display SizeStandard Sized Product
Display TypeStandard Sized Product
ECCNEAR99
Environmental conditionsWeather Resistant
Environmental RatingWeather Resistant
Face Plate Height2.72 in
Face Plate Width1.65 in
Family SeriesHubbell Plugs & Recepta.
Flange TypeNon-Flanged
GFCINo
GradeFederal Specification
Gross Weight0.25 lbs
GroundGrounding
GroundingGrounded
Height1.19 in
Horsepower Rating1 hp
Housing ColorIvory
Housing MaterialNylon, Reinforced PET
HP1, 1 hp
IlluminatedNo
IncludesGrounding Clip, Mountin.
Includes Mounting Hardw.Yes
Isolated GroundNo
ItemTraditional Duplex
Item - Plugs and Recept.Receptacle
Item NumberHBL5362IWR
Key Resistance Properti.Weather Resistant
Length3.28 in
ManufacturerHubbell
Manufacturer Part NumberHBL5362IWR
MarketIndustrial
MaterialNylon/Reinforced PET
Material - mounting har.Screw Mounting
Max HP1
Maximum Horsepower1
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size12 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
Mounting Hardware Mater.Screw Mounting
Mounting TypeFlush
Mounting Type - Plugs a.Flush
Multimedia OutletNo
NEMA Configuration5-20, 5-15R
NEMA Enclosure Rating1
Nema Rating5-20R
NEMA Receptacle Configu.5-20R
NEMA Receptacle Configu.5-20R
Net Weight0 lbs
No. of Poles2
No. of Wires3
Number of Gangs1
Number of poles2-Pole
Number of Poles2
Number Of Poles2-Pole
Number of Poles & Wires2 Pole / 3 Wire
Number Of Wires3-Wire
Number of Wires3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Operating TemperatureMaximum continuous 75?C.
Outlet TypeDuplex
Outlet Type - Plugs and.Standard Duplex
Overall Depth1.19 in
Phase1, Single Phase
PolarizedYes
Product TypeReceptacle
Rated Voltage125V AC
Receptacle TypeDuplex
Resistance PropertiesWeather Resistant
SeriesExtra Heavy Duty
ShroudedNo
StandardCertified to CSA 22.2, .
StandardsCSA Certified C22.2 No..
StyleFinder Groove Face
Sub-CategoryDuplex Receptacles
Surge ProtectionNo
Surge SuppressionNo
Tamper ResistantNo
TypeWeather Resistant
UL 94 Flammability Rati.V-0, V-2
UNSPSC39121406
UPC783585000000
USBNo
Voltage125VAC, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125 VAC
Voltage rating descript.125 V
Wattage2500 W
Weather ResistantYes
Weather Resistant - Plu.Yes
Weight0.25 lb
Width1.65 in
Width (in)1.65
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wire size#12 AWG to #10 AWG
Wire Size#12 AWG to #10 AWG
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL5362IWR26.091In StockHubbell26.09 @ 1
thumbzoomZoroG172647131.011In StockHubbell0.2731.01 @ 1
thumbzoomgordonelectricsupply.comHBL5362IWR34.951In StockHUBBELL34.95 @ 1
standardelectricsupply.com237933035.141In StockHubbell35.14 @ 1
thumbzoomMRO Supply102409435.141In StockHubbell Wiring35.14 @ 1
thumbzoomGalcoHBL5362IWR-HBBL36.181In StockHubbell0.2536.18 @ 1
thumbzoomturtle.comHUB HBL5362IWR36.881In StockHubbell36.88 @ 1
us.rs-online.com7198741339.951In StockHubbell Wiring Device-Kellems39.95 @ 1
thumbzoomsustainablesupply.comC118028943.961In StockHubbell0.2743.96 @ 1
Graybar2519583743.961In StockHubbell Wiring Device - Kellems43.96 @ 1
Newark84M948952.891In StockHUBBELL WIRING DEVICES52.89 @ 1
thumbzoomRaptor SuppliesAC2ALM68.8064131In StockHUBBELL WIRING DEVICE-KELLEMS68.806413 @ 1
kirbyrisk.com235273072.871In StockHubbell72.87 @ 1
