CAI - HUBBELL WIRING DEVICE-KELLEMS HBL560PS1W

B07J4VR1VQ

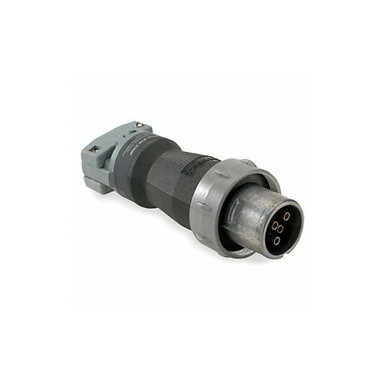

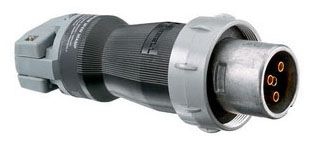

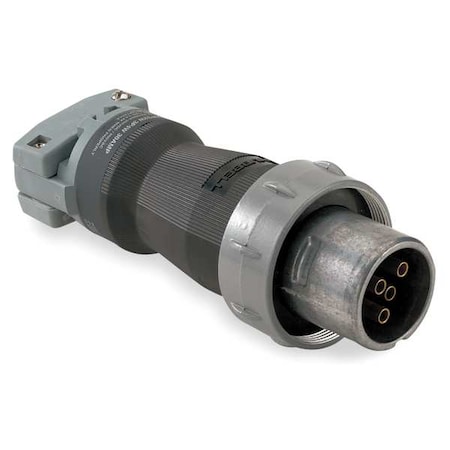

Hubbell Wiring Device-KELLEMS 60 Amp, 3-Phase Valox 357 Housing and Aluminum Shroud Watertight Pin and Sleeve Plug, Gray

Hubbell Wiring Device-KELLEMS 60 Amp, 3-Phase Valox 357 Housing and Aluminum Shroud Watertight Pin and Sleeve Plug, Grayzoom

Attributes

Key Value
Amperage60A
Amperage Rating60A
Amps60
Amps - Plugs and Recept.60
ApplicationMetallic with Nylon Shr.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
AWG Range#6 AWG to #4 AWG
Body MaterialValox 357 Housing and A.
Body Material - Pin and.Valox 357 Housing and A.
BrandHubbell
Built-In Strain ReliefYes
Cap TypeNo Cap or Cover
Case MaterialNon-Metallic
ColorGray
Color - Plugs and Recep.Gray
Color FamilyMulti
Compatible with SeriesInsulgrip
Connection DescriptionWater Resistant
Connection OrientationStraight
Country of OriginUS - United States
Country of Origin (subj.United States
Current Rating60 A
Current Stock9
Display TypeStandard Sized
ECCNEAR99
Family SeriesHubbell Plugs & Recepta.
FeaturesAll-Brass Sleeve Contac.
For Maximum Cable Diame.1.45 in
For Minimum Cable Diame.0.5 in
Gross Weight2.85 lbs
GroundingGrounded
Grounding Style1, Style 1
Housing ColorBlack, Gray
Housing ColourBlack, Gray
Housing MaterialNon-Metallic, Polybutyl.
HP-
International ShippingNo
IP RatingNot Rated
ItemType 4X Pin and Sleeve .
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL560PS1W
Lead TimeExpected to ship in 1-2.
Lockout-TagoutNo
ManufacturerHubbell
Manufacturer Part NumberHBL560PS1W
MaterialComposite
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size4 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size6 AWG
MpnHBL560PS1W
NEMA Enclosure Rating4X
Net Weight0 lbs
No. of Poles4
No. of Wires5
Number of Poles4
Number of Wires5, 4
Outside Diameter3.7 in
Overall Length9.6 in, 4
Phase3, Three
Phase - Electrical3
Pin & Sleeve StandardsUL 1682
Power Indicating LightNo
Product SeriesInsulgrip
Rated Voltage600V AC/250V DC
Resistance PropertiesImpact Resistant, Moist.
Reverse ServiceNo
ShroudedYes
SKUZO-G3193967
StandardCSA Certified to CSA Sp.
StandardsUL 1686-C1, CSA Certifi.
StyleStandard Service,Style .
SubCategoryElectrical
Switch RatedNo
Temperature Range (F)-40-167 ?F
Terminal TypeScrew
TypeWatertight Plug
UL 94 Flammability Rati.V-0
UNSPSC39121402
UPC783585010663
Voltage600VAC/250VDC, 600 V, 2.
Voltage - Plugs and Rec.600V AC/250V DC
Voltage Color CodeBlack, Gray
Voltage Rating250V DC, 600V AC
Wire Connection TypeScrew Terminals
Wire Size4 AWG, 5 AWG, 6 AWG
Wire Size Range6-4 AWG
