CAI - HUBBELL WIRING DEVICE-KELLEMS HBL8200HI

B07J2WM2KY

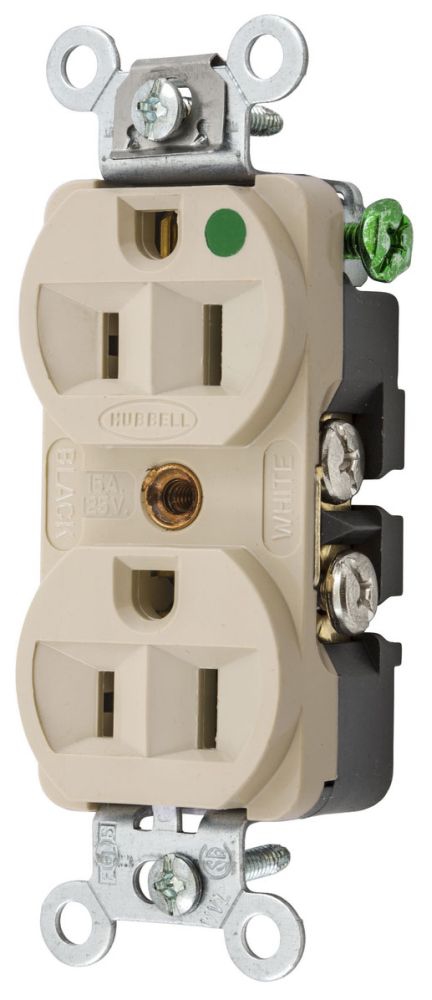

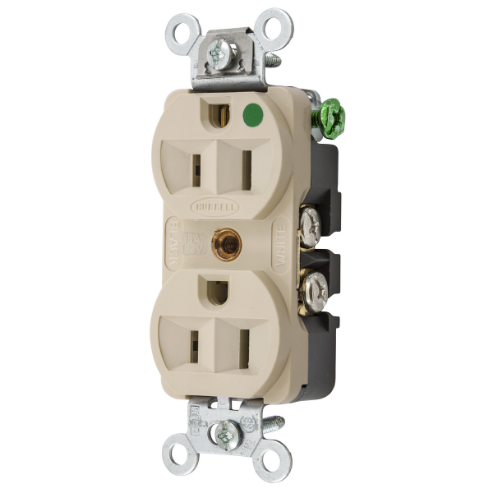

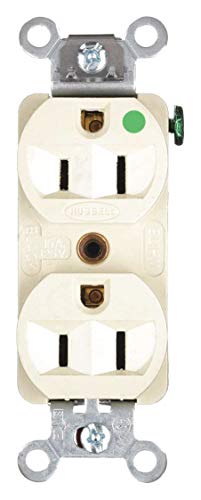

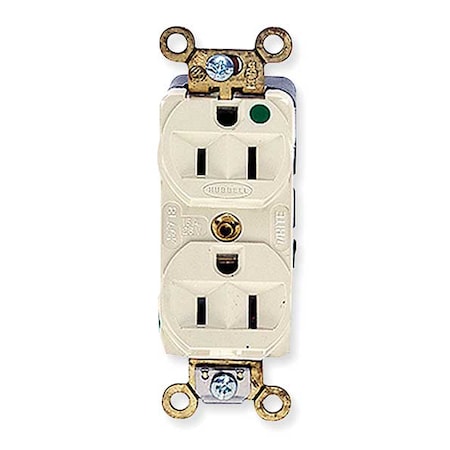

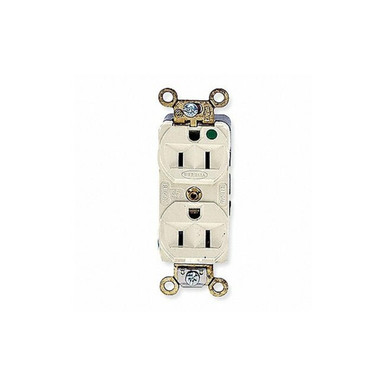

Hubbell Wiring Device-KELLEMS 15A Heavy Use Hospital Grade Receptacle, Ivory; Tamper Resistant: No

Hubbell Wiring Device-KELLEMS 15A Heavy Use Hospital Grade Receptacle, Ivory; Tamper Resistant: Nozoom

Attributes

Key Value
Additional Electrical P.Standard Protection
Additional Electrical P.Standard Protection
AFCINo
Amperage15 A
Amperage Rating15A, 15 Amp
Amps15
Amps - Plugs and Recept.15 A
ApplicationSlender/Compact Hospita.
Application EnvironmentHeavy Use Hospital Grade
ApprovalsCSA, UL
AWG Range#14 AWG to #10 AWG
BrandHubbell Wiring Device-K.
Brand NameHubbell-Wiring
Carton Quantity10
ColorIvoire, Ivory
Color - Plugs and Recep.Ivory
Color FamilyIvory
CommentsHospital Grade
Conductor Size14-10 AWG Solid/Strande.
Connection OrientationStraight
ConnectivityBack and Side Wired Scr.
Contact MaterialBrass, 0.031 Inch Tripl.
Corrosion ResistantNo
Country of OriginUS - United States
Country Of OriginUnited States of America
Country of Origin (subj.United States
Cover TypeNo Cover
Current / amperage rati.15 A
Current Rating15 A
Current rating15 A
Current Stock97
Degree of ProtectionIP20
DescriptionGrounding, Slender/Comp.
Dielectric StrengthWithstands 2,000V minim.
Dielectric strengthWithstands 2,000V minim.
Dimensions3.28 in x 1.33 in x 1.0.
Display SizeSlender/Compact
Display TypeSlender/Compact
ECCNEAR99
Energy Star FlagNo
Environmental ConditionsV0 Flammability Rated P.
Environmental conditionsIndoor Dry Unless Prote.
Environmental RatingIndoor Dry Unless Prote.
Face Plate Height2.72 in
Face Plate Width1.33 in
Family SeriesHubbell Plugs & Recepta.
Fiber TypeNo
FinishNo
Flange TypeNon-Flanged
For LocationIndoor
GFCINo
GradeHospital Grade Fed. Spe.
Gross Weight0.25 lbs
GroundingGrounding, Grounded
GTIN00783585015835
Height1.05 in., 1.05 in
Horsepower Rating1/2 hp
Housing ColorIvory
Housing ColourIvory
Housing MaterialThermoplastic
HP1/2 hp
IlluminatedNo
IncludesGrounding Staple, Mount.
Includes Mounting Hardw.Yes
International ShippingNo
IP RatingIP20
Isolated GroundNo
ItemTraditional Duplex, Rec.
Item - Plugs and Recept.Receptacle
Item NameStraight Blade Duplex R.
Item NumberHBL8200HI
Jacket MaterialNo
Key Resistance Properti.Standard Resistance
Lead TimeExpected to ship in 1-2.
Length3.28 in., 3.28 in
ManufacturerHubbell
Manufacturer NameHubbell-Wiring
Manufacturer Part NumberHBL8200HI
MarketCommercial
MaterialPBT Base and Face, Ther.
Material - mounting har.Screw Mounting
Max HP0.5
Maximum Horsepower0.5
Maximum Load Capacity1/2 hp
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
MountingFlush
Mounting Hardware Mater.Screw Mounting
Mounting TypeFlush
Mounting Type - Plugs a.Flush
MpnHBL8200HI
Multimedia OutletNo
NEMA ConfigurationNEMA 5-15R, 5-15, 5-15R
NEMA Enclosure Rating1
Nema Rating5-15R
NEMA Receptacle Configu.5-15R
NEMA Receptacle Configu.5-15R
Net Weight0 lbs
No. of Poles2
No. of Wires3
Number of Gangs1
Number of poles2-Pole
Number of Poles2
Number Of Poles2-Pole
Number of Poles & Wires2 Pole / 3 Wire
Number Of Wires3-Wire
Number of Wires3.0000, 3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Operating TemperatureMaximum continuous 75?C.
Outlet TypeDuplex
Outlet Type - Plugs and.Standard Duplex
Overall Depth1.05 in
Phase1, Single, Single Phase
PolarizedYes
Power IndicatorNo
Product TypeReceptacle
Rated Voltage125V
Resistance PropertiesImpact Resistant
RoHS FlagYes
SeriesHospital Grade
ShroudedNo
SKUZO-G1709093
StandardCSA Certified, C22.2, N.
StandardsCSA Certified C22.2 No..
Strap Material0.05 Inch Galvanized St.
StyleDuplex, Finder Groove F.
Sub BrandHBL?
Sub-CategoryDuplex Receptacles
SubCategoryElectrical
Surge ProtectionNo
Surge SuppressionNo
Tamper ResistantNo
Temperature Rating-40 to 75 deg C
Terminal ConnectionBack and Side Wired
TypeExtra Heavy-Duty, Heat-.
UL 94 Flammability Rati.V-0
UNSPSC39121406
UPC783585015835, 783585015.
USBNo
Voltage125VAC, 125 V, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC, 125 V, 125 Volt
Voltage rating descript.125 V
Wattage1875 W
Weather ResistantNo
Weather Resistant - Plu.No
Width1.33 in.
Width (in)1.33
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wire Size#14 AWG to #10 AWG
Wire size#14 AWG to #10 AWG
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG170909323.211In StockHubbell0.2823.21 @ 1
Onlinecomponents.comHBL8200HI23.7812HUBBELL23.78 @ 1
grainger.caHBLHBL8200HI23.958856061In StockHUBBELL WIRING DEVICE-KELLEMS0.2523.95885606 @ 1
thumbzoomsimsupply.comZO-G170909324.62197Hubbell24.62 @ 1
thumbzoomKelly HayesHBL8200HI24.8814Hubbell Wiring Device-Kellems24.88 @ 1
thumbzoomsustainablesupply.comC119901426.11In StockHubbell0.2826.1 @ 1
Monarch Electric12226427.01In StockHubbell-Wiring27.0 @ 1
AmazonTPB00N8ZRWXM27.341In Stock2Hubbell27.34 @ 1
thumbzoomgordonelectricsupply.comHBL8200HI30.021In StockHUBBELL30.02 @ 1
standardelectricsupply.com229671230.211In StockHubbell30.21 @ 1
thumbzoomMRO Supply102567330.212In StockHubbell Wiring30.21 @ 2
thumbzoomGalcoHBL8200HI-HBBL31.11In StockHubbell0.2531.1 @ 1
thumbzoomturtle.comHUB HBL8200HI31.681In StockHubbell31.68 @ 1
VericalHBL8200HI32.71211Hubbell Wiring Device-Kellems32.71 @ 2
thumbzoomRaptor SuppliesAD7ANZ34.9283611In StockHUBBELL WIRING DEVICE-KELLEMS34.928361 @ 1
Graybar8900322841.17121In StockHubbell Wiring Device - Kellems41.1712 @ 1
thumbzoomRadwellHBL8200HI42.01In StockHUBBELL KELLEMS42.0 @ 1
thumbzoomNewark35B82347.171In StockHUBBELL WIRING DEVICES47.17 @ 1
kirbyrisk.com48841956.141In StockHubbell56.14 @ 1
