Hubbell HBL9431C

B002E7YI82

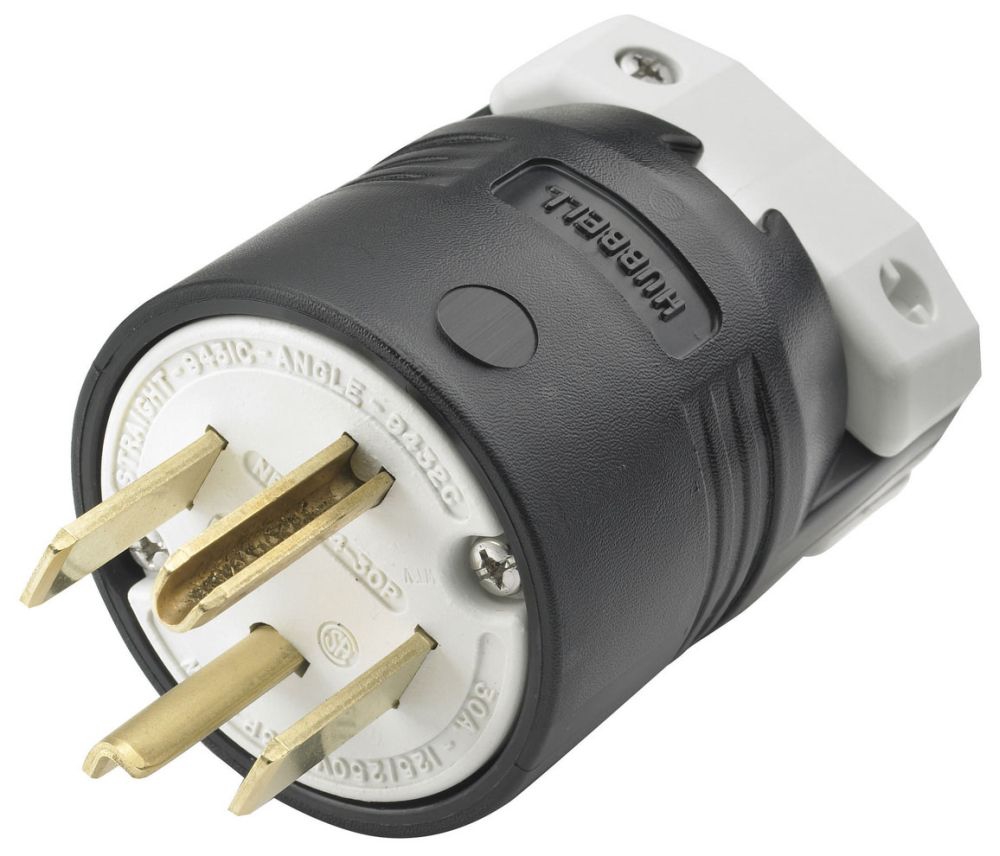

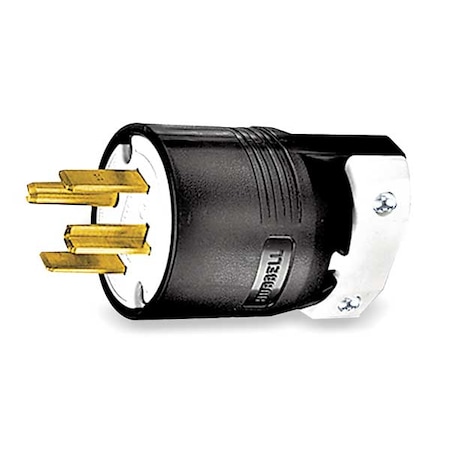

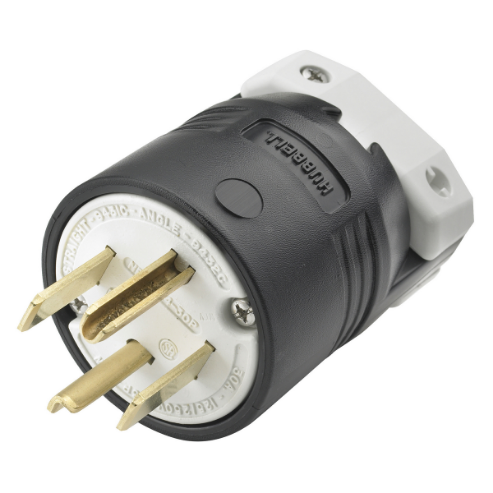

Hubbell HBL9431C Plug, 3 Pole, 4 Wire, 30 amp, 125/250V, 14-30P

Hubbell HBL9431C Plug, 3 Pole, 4 Wire, 30 amp, 125/250V, 14-30Pzoom

Attributes

Key Value
Amperage30A
Amperage Rating30 Amp, 30A
amperage rating30
Amps30
Amps - Plugs and Recept.30
AntimicrobialNo
ApplicationIndustrial/Commercial
Body Length4.13 in
Boot CodeC
BrandHubbell, WIRING DEVICE-.
Brand NameHubbell-Wiring
Carton1
Category DescriptionCommercial Cord Connect.
ClassificationCommercial Cord Connect.
ColorBlack/White, Black
Color - Plugs and Recep.Black/White
Color FamilyBlack
Color/FinishBlack, White
Conductor Size12-4 AWG
connectionTerminal Screws
Connection OrientationStraight
Contact MaterialBrass
Cord dia625 in-1.310in
Cord Size0.625 - 1.31 Inch, 0.62.
Cord TypeAll Portable
Corrosion ResistantYes
Country of OriginUS - United States
Country Of OriginUnited States of America
Country of Origin (subj.United States
Current Rating30, 30 A
Current Stock22
Degree of ProtectionIP20
DescriptionPlug, 3P4W, 30A 125/250.
Dielectric StrengthWithstands 2000 Volt Mi.
Dimensions2.88 Inch Dia x 4.13 In.
ECCNEAR99
Energy Star FlagNo
Environmental ConditionsHB or Better Flammabili.
environmental conditionsIndoor Dry unless prote.
extra long descriptionHWDK HBL9431C PLUG, 3P4.
FinishNo
For Maximum Cable Diame.1.31 in
For Minimum Cable Diame.0.625 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
GroundingGrounding, Grounded
GTIN00783585015309
Horsepower Rating2 hp
Housing ColorBlack
Housing ColourBlack
Housing MaterialNylon
HP2.0 Line to Line, 2.0 L.
Insulation MaterialNylon
International ShippingNo
IP Rating20, IP20
ItemStraight Blade Plug
Item - Plugs and Recept.Straight Blade Plug
Item NameStraight Blade Plug
Lead TimeExpected to ship in 1-2.
Long DescriptionStraight Blade Devices,.
Manufacturer NameHubbell-Wiring
Manufacturer Part NumberHBL9431C
Manufacturers Part Numb.HBL9431C
MarketCommercial, Industrial
MaterialNylon
Maximum Load Capacity(2) 2 hp
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size4 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size12 AWG
MountingCord Mounted
MpnHBL9431C
NEMA ConfigurationNEMA 14-30P, 14-30P
NEMA Plug Configuration14-30P
NEMA Plug Configuration.14-30P
nema rating14-30P
No. of Poles3
No. of Wires4
Number of Blades4
Number of Poles3
Number of Wires4.0000, 4
Outside Diameter2.88 in
Package5
pallet quantity765
Phase1, 3, Single, No
Phase - Plugs and Recep.3
PolarizedYes
Poles3
Product TypePlug, 3P4W, 30A 125/250.
Resistance PropertiesCorrosion resistant
RoHS FlagYes
seriesExtra Heavy Duty
Size4.13 in x 2.88 in x 2.8.
SKUZO-G1177513
Special FeaturesCorrosion resistant, St.
standardCertified to CSA;UL Lis.
StandardsUL, CSA, UL 498 E1706, .
sub brandStraight Blade Devices
Sub BrandInsulgrip?
SubCategoryElectrical
Temperature Rating-40 to 75 deg C
Terminal ConnectionScrew
TypePLUG
UL 94 Flammability Rati.HB
UNSPSC39121402, 39121402 - El.
UPC783585015309, 783585015.
Voltage125V/250V, 125/250VAC
Voltage - Plugs and Rec.125/250V AC
Voltage Rating125/250 Volt, 125/250;1.
Wattage7,500
Weight per each0.85
Wire Connection TypeScrew Terminals
Wire Size#12 AWG to #4 AWG
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomComponent Electronics438F-4A53.081In StockHUBBELL53.08 @ 1
Onlinecomponents.comHBL9431C58.531In StockHubbell58.53 @ 1
thumbzoomKelly HayesHBL9431C64.16113Hubbell Wiring Device-Kellems64.16 @ 1
thumbzoomZoroG117751368.25180Hubbell0.9568.25 @ 1
thumbzoomsustainablesupply.comC120747468.291In StockHubbell0.9568.29 @ 1
thumbzoomMonarch Electric7698873.491In StockHubbell-Wiring73.49 @ 1
thumbzoomCarlton Bates Company7835850153075.381In StockHUBBELL75.38 @ 1
thumbzoomsimsupply.comZO-G117751382.46122Hubbell82.46 @ 1
thumbzoomgordonelectricsupply.comHBL9431C86.131In StockHUBBELL86.13 @ 1
thumbzoomMRO Supply102611286.571In StockHubbell Wiring86.57 @ 1
thumbzoomturtle.comHUB HBL9431C90.91In StockHubbell90.9 @ 1
steinerelectric.com2620199.361In StockHubbell Wiring Device-Kellems99.36 @ 1
thumbzoomElliott ElectricHBL9431C101.051In StockWiring Device-Kellems0.85101.05 @ 1
thumbzoombscsource.comHBL9431C112.591In StockHubbell Wiring Device-Kellems112.59 @ 1
Newark35B919119.391In StockHUBBELL WIRING DEVICES119.39 @ 1
grainger.caHBLHBL9431C120.788634521In StockHUBBELL WIRING DEVICE-KELLEMS0.85120.78863452 @ 1
Graybar90077903125.24961In StockHubbell Wiring Device - Kellems125.2496 @ 1
thumbzoomNational Supply Network54033634134.411In StockHubbell Wiring Device-Kellems134.41 @ 1
kirbyrisk.com487908161.561In StockHubbell161.56 @ 1
thumbzoomRaptor SuppliesAE7LGN173.84848651In StockHUBBELL WIRING DEVICE-KELLEMS173.8484865 @ 1
