Hubbell HBL9461C

B000TK9B7E

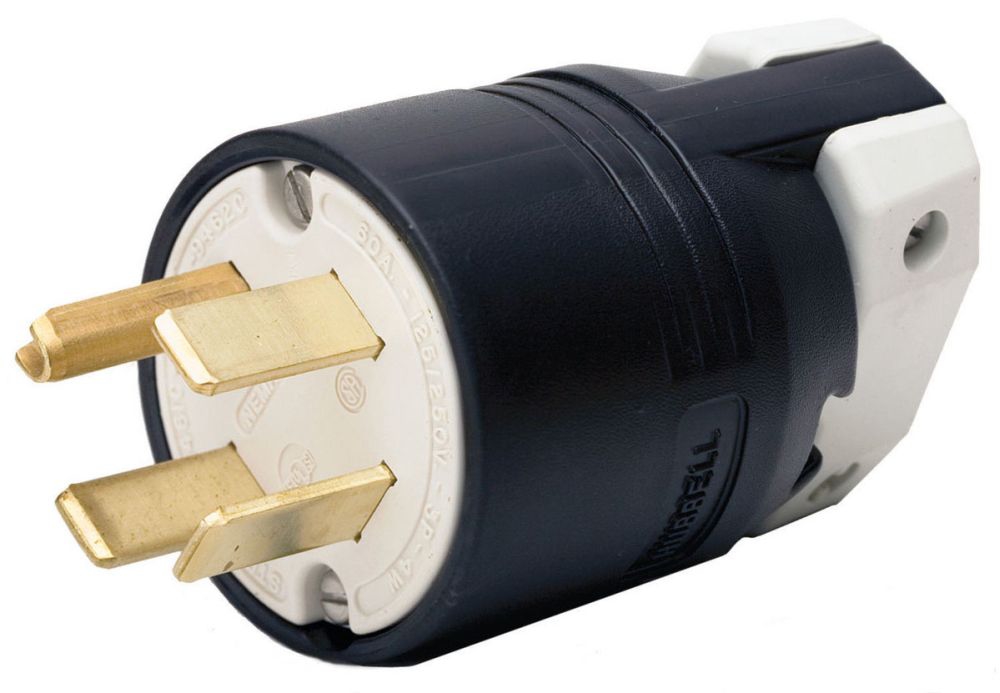

Hubbell HBL9461C Plug, 3 Pole, 4 Wire, 60 amp, 125/260V, 14-60P

Hubbell HBL9461C Plug, 3 Pole, 4 Wire, 60 amp, 125/260V, 14-60Pzoom

Attributes

Key Value
Amperage60 A
Amperage Rating60A
Amps60
Amps - Plugs and Recept.60
AntimicrobialNo
Body Length4.13 in
Boot CodeC
BrandHubbell
ColorBlack/White, Black
Color - Plugs and Recep.Black/White
Color FamilyBlack
Connection OrientationStraight
Cord dia625 in-1.310in
Cord range0.625 in-1.310 in
Cord Size0.625 in to 1.310 in
Corrosion ResistantYes
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.60 A
Current Rating60 A
Current rating60 A
Current Stock47
Dielectric strengthWithstands 2,000V minim.
Dimensions4.13 in x 2.88 in x 2.8.
ECCNEAR99
For Maximum Cable Diame.1.31 in
For Minimum Cable Diame.0.625 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
GroundingGrounded
Height2.88 in
Horsepower Rating2 hp, 3 hp
Housing ColorBlack
Housing ColourBlack
Housing MaterialNylon
HP3, 2.0 Line to Neutral,.
Insulation MaterialNylon
International ShippingNo
IP Rating20, IP20
ItemStraight Blade Plug
Item - Plugs and Recept.Straight Blade Plug
Lead TimeExpected to ship in 1-2.
Length4.13 in
MarketCommercial, Industrial
MaterialNylon
Max HP3
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size4 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size12 AWG
MpnHBL9461C
NEMA Configuration14-60P
NEMA Plug Configuration14-60P
NEMA Plug Configuration.14-60P
Nema Rating14-60P
No. of Poles3
No. of Wires4
Number of Blades4
Number of poles3-Pole
Number of Poles3
Number of wires4-Wire
Number of Wires4
Operating temperatureMaximum continuous 75C .
Outside Diameter2.88 in
Phase3, Single
Phase - Plugs and Recep.3
PolarizedYes
Resistance PropertiesCorrosion resistant
SKUZO-G0898414
Special FeaturesCorrosion resistant
StandardsUL/CSA
SubCategoryElectrical
UL 94 Flammability Rati.HB
UNSPSC39121402
UPC783585015354
Voltage125/250VAC
Voltage - Plugs and Rec.125/250V AC
Voltage Rating125/250V AC
Voltage rating descript.125/250 V
Width (in)2.88
Wire Connection TypeScrew Terminals
Wire size#12 AWG to #4 AWG
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL9461C75.921In StockHubbell75.92 @ 1
thumbzoomKelly HayesHBL9461C89.26116Hubbell Wiring Device-Kellems89.26 @ 1
thumbzoomsimsupply.comZO-G0898414112.05147Hubbell112.05 @ 1
thumbzoomsustainablesupply.comC2890295112.941In StockHubbell Kellems0.9112.94 @ 1
thumbzoomgordonelectricsupply.comHBL9461C119.851In StockHUBBELL119.85 @ 1
standardelectricsupply.com2337554120.431In StockHubbell120.43 @ 1
thumbzoomMRO Supply1026126120.431In StockHubbell Wiring120.43 @ 1
thumbzoomZoroG0898414121.111In StockHubbell0.9121.11 @ 1
steinerelectric.com91467138.31In StockHubbell Wiring Device-Kellems138.3 @ 1
Graybar90077899150.65121In StockHubbell Wiring Device - Kellems150.6512 @ 1
Newark35B925166.081In StockHUBBELL WIRING DEVICES166.08 @ 1
grainger.caHBLHBL9461C167.320057181In StockHUBBELL WIRING DEVICE-KELLEMS0.9167.32005718 @ 1
thumbzoomNational Supply Network54033675173.771In StockHubbell Wiring Device-Kellems173.77 @ 1
kirbyrisk.com488132222.551In StockHubbell222.55 @ 1
thumbzoombscsource.comHBL9461C227.091In StockHubbell Wiring Device-Kellems227.09 @ 1
thumbzoomRaptor SuppliesAE7LGT252.30880351In StockHUBBELL WIRING DEVICE-KELLEMS252.3088035 @ 1
