Hubbell HBL9965C

B005T5J9T4

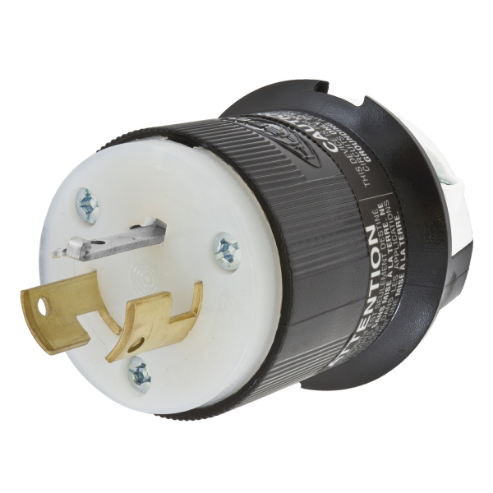

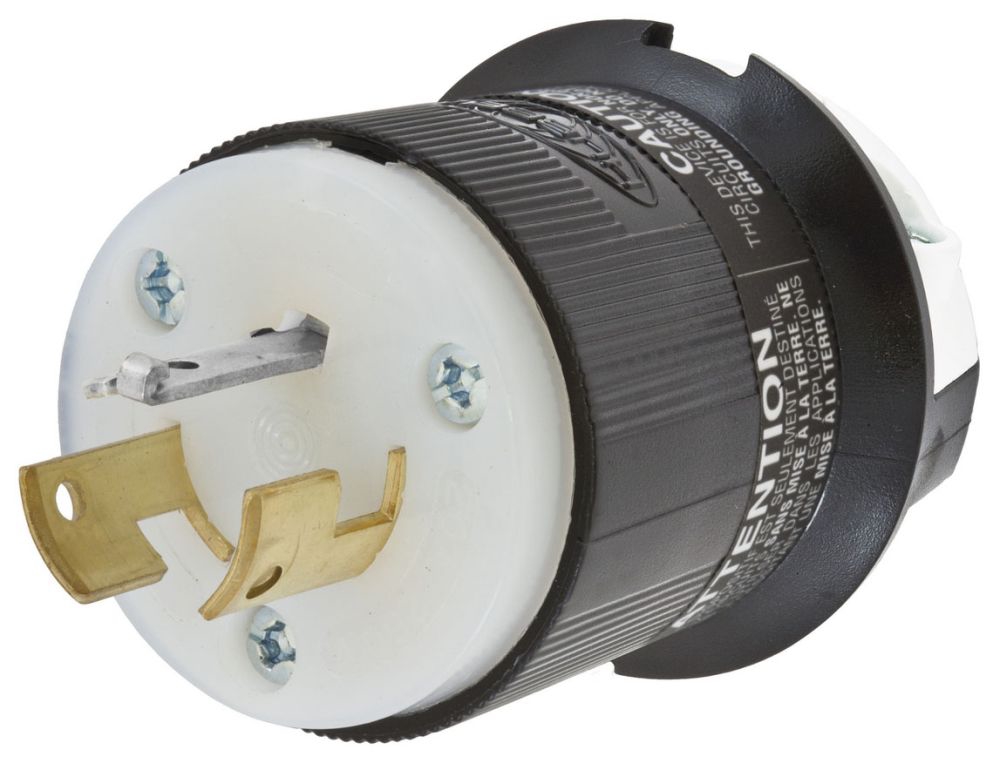

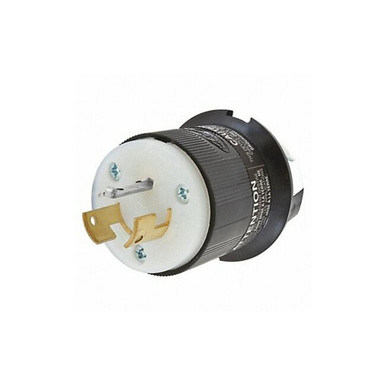

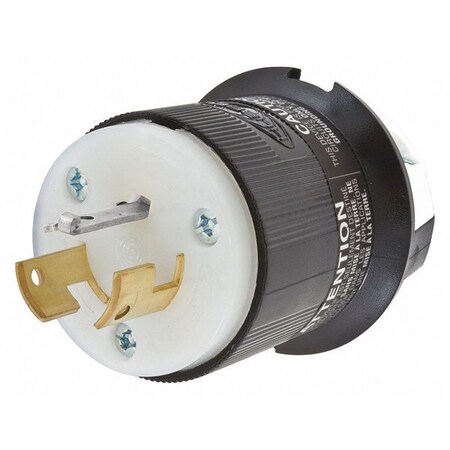

HBL9965C, LKG Plug, 3P3W, 20A 125/250V, B/W

HBL9965C, LKG Plug, 3P3W, 20A 125/250V, B/Wzoom

Attributes

Key Value
Amperage20 A
amperage rating20
Amperage Rating20A
Amps20
Amps - Plugs and Recept.20
AntimicrobialNo
ApplicationExtra Heavy Duty Indust.
AWG Range#16 AWG to #8 AWG
Blade MaterialBrass
Body Length2.26 in
Body TypeStraight
BrandTwist-Lock Insulgrip, H.
Cable range0.360 - 0.930 in
Cable Range0.360 - 0.930 in.
Carton1
Category DescriptionNema Rated Turnlok Plug.
ClassificationNema Rated Turnlok Plug.
ColorBlack/White, White, Bla.
Color - Plugs and Recep.Black/White
Color FamilyMulti
connectionTerminal Screws
Connection OrientationStraight
ConnectivityScrew Terminals
Contact TypePin
Cord dia360 in-0.930 in
Cord range0.360 in-0.930 in (9-24)
Cord Size0.36 - 0.93", 0.360 in .
Cord TypeAll Listed Portables
Cord typeAll Listed Portables
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.20 A
Current Rating20 A, 20
Current rating20 A
Current Stock393
DescriptionLKG Plug, 3P3W, 20A 125.
Dielectric strengthWithstands 2,000V minim.
Dimensions2.26 in x 2.26 in x 2.7.
Display TypeStandard Sized
ECCNEAR99
environmental conditionsIndoor Dry unless prote.
Environmental conditionsIndoor Dry unless prote.
extra long descriptionHWDK HBL9965C LKG PLUG,.
Face Diameter2.21 in
Family SeriesHubbell Plugs & Recepta.
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.0.93 in
For Minimum Cable Diame.0.36 in
GradeCommercial ; Industrial.
Grade - Plugs and Recep.Industrial
Gross Weight0.25 lbs
GroundingNon-Grounded
GTIN00783585037608
Height2.75 in., 2.75 in
Housing ColorBlack, White
Housing MaterialNylon
International ShippingNo
IP Rating20
Isolated GroundNo
ItemLocking Plug
Item - Plugs and Recept.Locking Plug
Item NumberHBL9965C
Item Type20A Male Insulgrip? Plug
Lead TimeExpected to ship in 1-2.
Length2.26 in., 2.26 in
Long DescriptionLocking Devices, Twist-.
ManufacturerHubbell
Manufacturer Part NumberHBL9965C
Manufacturers Part Numb.HBL9965C
MarketIndustrial
MaterialNylon
Material - mounting har.Cord Mounted
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size16 AWG
MountingCord Mounted
Mounting TypeCable
MpnHBL9965C
NEMA ConfigurationNon-NEMA, 3 Blade, Non-.
NEMA Plug ConfigurationNon-NEMA
NEMA Plug Configuration.Non-NEMA, 20 A, 20A, No.
Nema RatingNon-NEMA
nema ratingNon-NEMA
NEMA TypeNon-NEMA
Net Weight0 lbs
No. of Poles3
No. of Wires3
Number of Blades3
Number of poles3-Pole
Number of Poles3
Number of Wires3
Number of wires3-Wire
Operating temperatureMaximum continuous 75C .
Outside Diameter2.26 in
Overall Length2.26 in
Package30
pallet quantity2880
Phase1, Single phase
PolarizedYes
Poles3
Primary TypeTwist Lock
Product TypeLKG Plug, 3P3W, 20A 125.
Rated Voltage125/250V
Resistance PropertiesChemical Resistant, Imp.
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
Size2.26 in x 2.26 in x 2.7.
SKUZO-G3242671
Special FeaturesStandard Product
StandardCertified to CSA C22.2 .
standardCertified to CSA C22.2 .
StandardsUL/CSA
sub brandTwist-Lock Devices
SubCategoryElectrical
TerminationScrew
TypePlugs, Locking Plug
UL 94 Flammability Rati.HB
UNSPSC39121402, 39121402 - El.
UPC783585037608
Voltage125/250 V, 125/250VAC
Voltage - Plugs and Rec.125/250 VAC, 125/250V AC
Voltage Rating125/250, 125 ; 250 V, 1.
Voltage rating descript.125/250 V
WatertightNo
Wattage5,000
Weight per each0.25
Width2.26 in.
Width (in)2.26
Wire Connection TypeScrew Terminals
Wire Size#16 AWG to #8 AWG, 8-16.
Wire size#16 AWG to #8 AWG
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommostelectric.comHBL9965C21.21In StockHUBBELL WIRING DEVICE/KELLEMS21.2 @ 1
Onlinecomponents.comHBL9965C23.86115HUBBELL23.86 @ 1
thumbzoomKelly HayesHBL9965C24.311162Hubbell Wiring Device-Kellems24.31 @ 1
thumbzoomZoroG324267125.531In StockHubbell0.325.53 @ 1
AmazonTPB000LEB53G26.491In Stock2Hubbell Wiring Device-Kellems26.49 @ 1
thumbzoomCarlton Bates Company7835850376027.061In StockHUBBELL27.06 @ 1
standardelectricsupply.com28835332.791In StockHubbell32.79 @ 1
thumbzoomMRO Supply102614332.792In StockHubbell Wiring32.79 @ 2
thumbzoomgordonelectricsupply.comHBL9965C33.281In StockHUBBELL33.28 @ 1
grainger.caHBLHBL9965C33.691914521In StockHUBBELL WIRING DEVICE-KELLEMS0.333.69191452 @ 1
thumbzoomturtle.comHUB HBL9965C35.121In StockHubbell35.12 @ 1
thumbzoomElliott ElectricHBL9965C35.31In StockWiring Device-Kellems0.2535.3 @ 1
thumbzoomsimsupply.comZO-G324267135.311393Hubbell35.31 @ 1
thumbzoomsustainablesupply.comC120897136.441In StockHubbell0.336.44 @ 1
thumbzoomGalcoHBL9965C-HBBL36.721In StockHubbell0.2536.72 @ 1
steinerelectric.com2627536.881In StockHubbell Wiring Device-Kellems36.88 @ 1
thumbzoomUnited Electric9398638.021In StockWIRING DEVICE-KELLEMS38.02 @ 1
thumbzoombscsource.comHBL9965C38.291In StockHubbell Wiring Device-Kellems38.29 @ 1
thumbzoomRadwellHBL9965C44.012HUBBELL KELLEMS44.0 @ 1
Graybar8812801345.89761In StockHubbell Wiring Device - Kellems45.8976 @ 1
thumbzoomNational Supply Network5403527450.771In StockHubbell Wiring Device-Kellems50.77 @ 1
us.rs-online.com7152861550.9912Hubbell Wiring Device-Kellems50.99 @ 1
thumbzoomNewark81F291752.791In StockHUBBELL WIRING DEVICES52.79 @ 1
thumbzoomRaptor SuppliesAE7ZJM63.18614251In StockHUBBELL WIRING DEVICE-KELLEMS63.1861425 @ 1
kirbyrisk.com48410464.69116Hubbell64.69 @ 1
