Hubbell HBLDFR

mpnHBLDFR
brandname: Hubbell
manufacturername: Hubbell

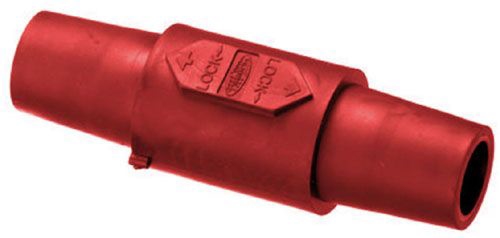

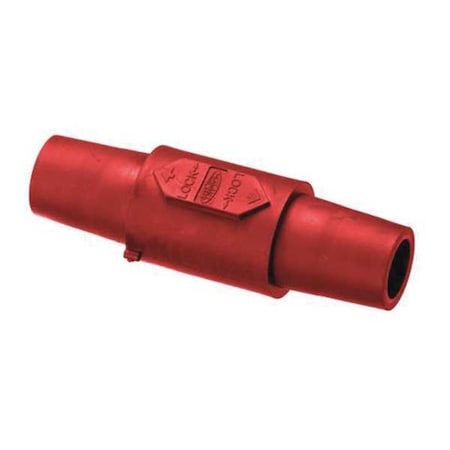

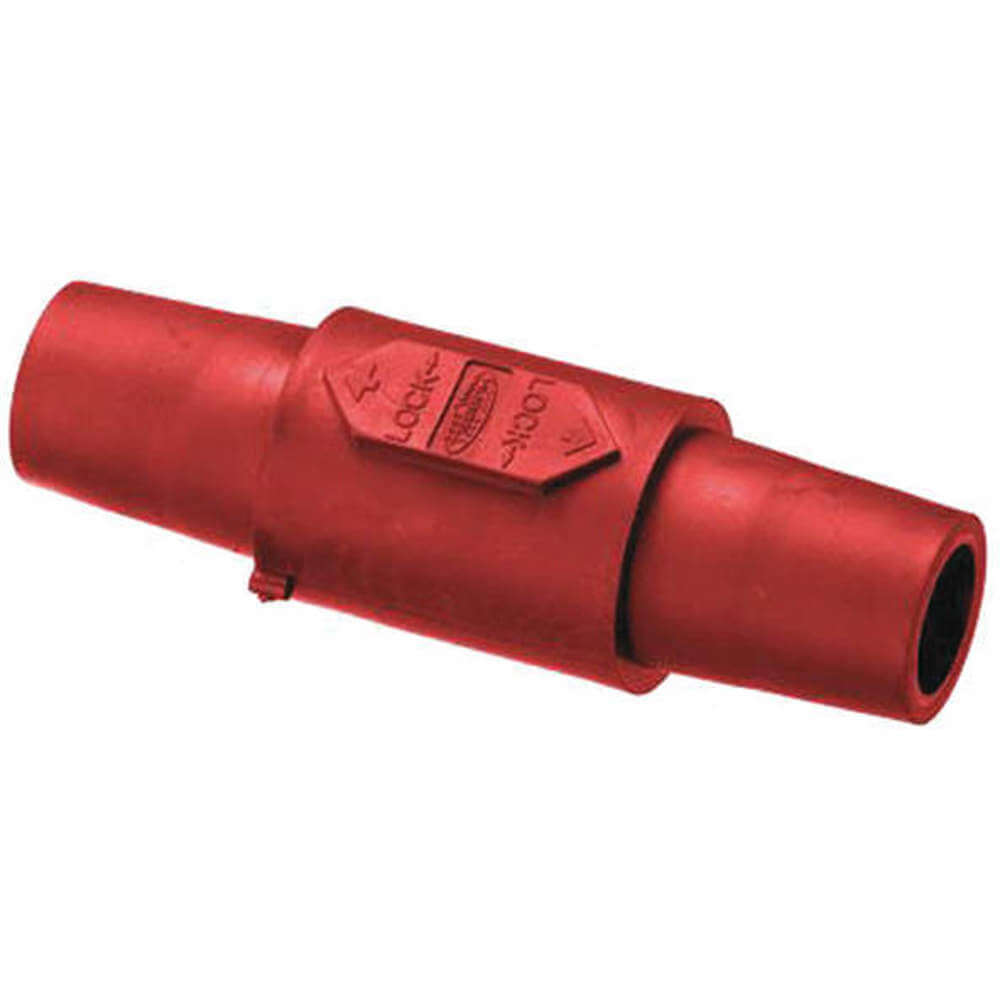

Double Connector,300/400A,Single Pin,Red

Double Connector,300/400A,Single Pin,Red

zoom

Brand: Hubbell
PartNumber: HBLDFR
Model: HBLDFR
Color: Red
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Amperage	400 A
Amperage Rating	400A
Amps AC/DC	300/400AC/DC
Application	High Ampacity
Approvals	cUL, UL
Brand	Hubbell
Cable Range	N/A
Color	Red
Color Family	Red
Comments	Gender Reversing
Compatible with Series	16
Conductor Material	Brass
Connection Description	F-F
Connector Color	Red
Contact Material	Brass
Country of Origin	CN - China
Current / amperage rati.	400 A
Current Rating	400 A
Current rating	400 A
ECCN	EAR99
Family Series	Hubbell Connectors, 16 .
Fits	UL1691
Gender Configuration	Female-Female
Gross Weight	0.9 lbs
Housing Color	Red
Housing Material	Thermoplastic Elastomer
Industry Standard(s)	UL 498 And UL1691
Insulation	Insulated Body
Insulator Material	Thermoplastic Elastomer.
International Shipping	No
Item	Double Connector
Item Number	HBLDFR
Lead Time	Expected to ship in 1-2.
Male/Female	Female-Female
Manufacturer	Hubbell
Manufacturer Part Number	HBLDFR
Material	Thermoplastic Elastomer.
Mpn	HBLDFR
NEMA Rating	12, 3R, 4X
Net Weight	0 lbs
No. of Pins	1) In, 1) Out
Number of pins	1) In, 1) Out
Operating temperature	Max Continuous- 75 Degr.
Overall Height	4.84 in
Overall Width	1.56 in
Product Series	16
Product Type	Double Connector
RoHS	,Gender Reversing
Series	16
Single Pole Device Style	Taper Nose
SKU	ZO-G6436001
Standard	UL 498 And UL1691
Standards	cUL, UL
Style	Double Female
SubCategory	Electrical
Temperature Range (F)	-40-167 ?F
Terminal Connection	N/A
Type	Gender Reversing
UNSPSC	39121710
UPC	783585516967
UPC Code	783585516967
Voltage	600 VAC
Voltage Rating	250V DC, 600V AC
Voltage rating descript.	600V AC/DC
Wattage	360000

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	HBLDFR	44.33	1	In Stock		Hubbell		44.33 @ 1
	Performance Audio	CAM HBLDFR	54.0	1	In Stock		HUBBELL		54.0 @ 1
	sustainablesupply.com	C1170218	67.68	1	In Stock		Hubbell	0.77	67.68 @ 1
	MRO Supply	1026600	67.93	1	In Stock		Hubbell Wiring		67.93 @ 1
	Zoro	G6436001	67.95	1	56		Hubbell	0.77	67.95 @ 1
	gordonelectricsupply.com	HBLDFR	68.95	1	In Stock		HUBBELL		68.95 @ 1
	Galco	HBLDFR-HBBL	69.93	1	In Stock		Hubbell	0.9	69.93 @ 1
	simsupply.com	ZO-G6436001	80.52	1	In Stock		Hubbell		80.52 @ 1
	Raptor Supplies	AF7BFX	90.6059115	1	In Stock		HUBBELL		90.6059115 @ 1
	us.rs-online.com	70575046	90.87	1	In Stock		Hubbell Wiring Device-Kellems		90.87 @ 1
	Graybar	25050722	118.0592	1	In Stock		Hubbell Wiring Device - Kellems		118.0592 @ 1
