Hubbell RR15SLATR

mpnRR15SLATR
brandname: Hubbell
manufacturername: Hubbell

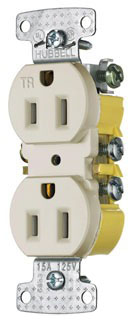

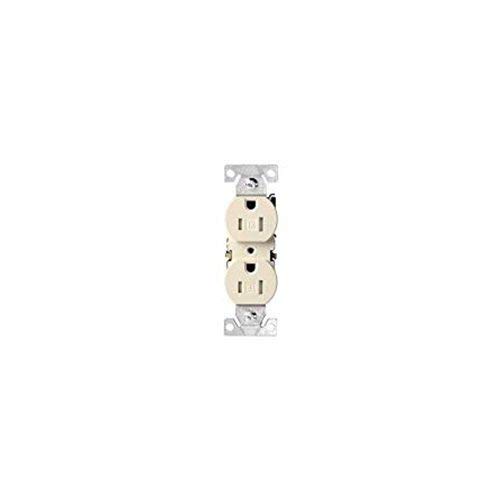

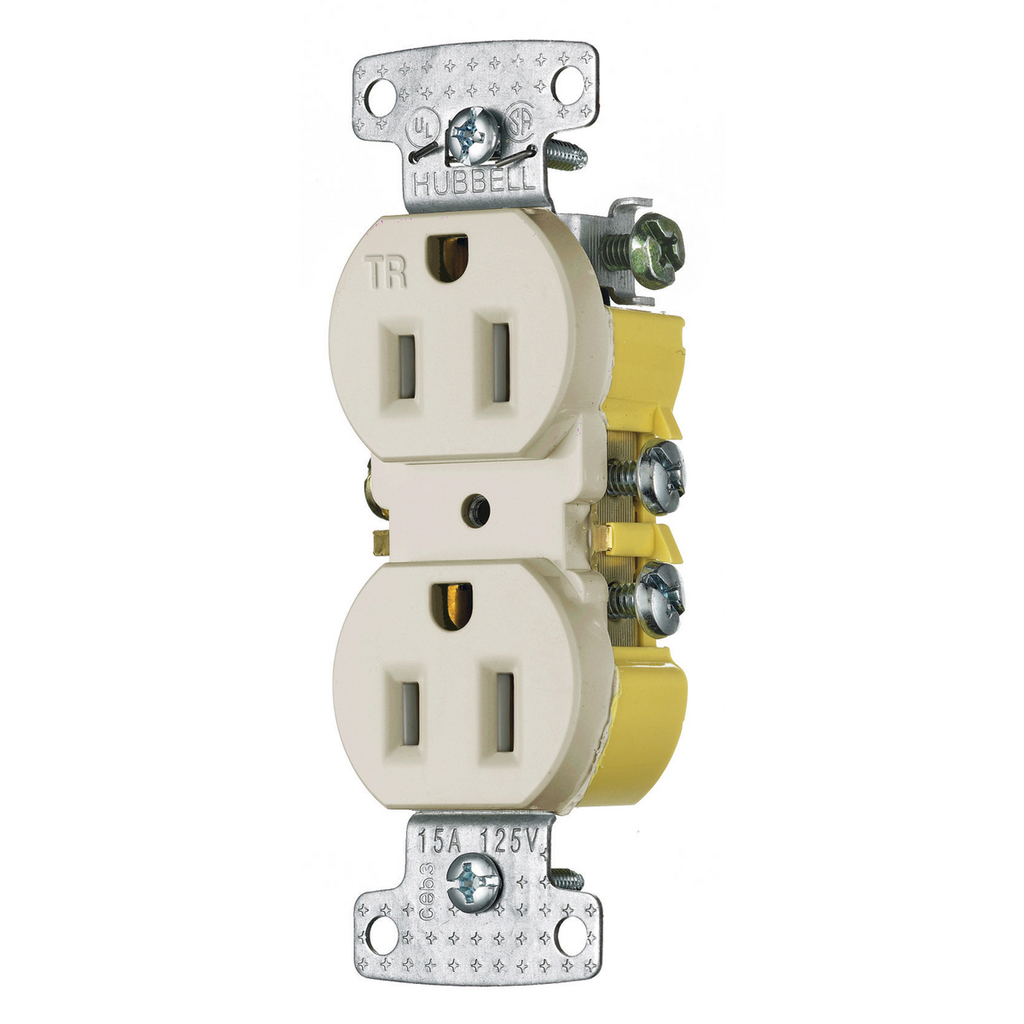

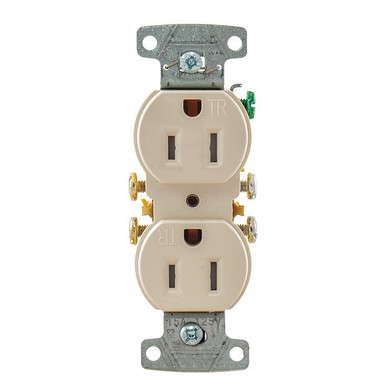

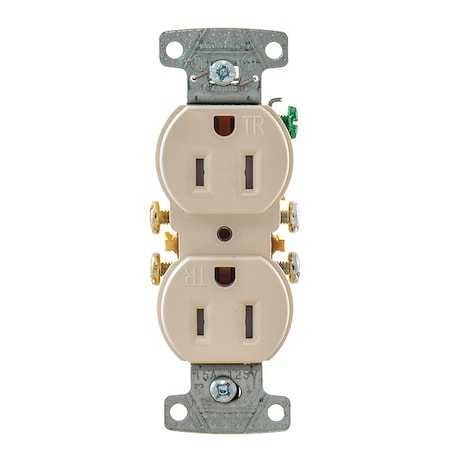

Pack of 10 Hubbell RR15SLATR Duplex Receptable

Brand: Hubbell
PartNumber: RR15SLATR
Model: RR15SLATR
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Additional Electrical P.	Standard Protection
Additional Electrical P.	Standard Protection
AFCI	No
Amperage	15 A, 15 Amp
Amperage Rating	15A, 15 A, 15
Amps - Plugs and Recept.	15 A
Application	Residential Receptacles
Application Environment	General Purpose
Approvals	CSA, UL
AWG Range	#14 AWG to #12 AWG
Blade Style	Straight Blade
Brand	Hubbell
Certifications	CSA, UL
Certifications and List.	CSA Certified, UL Listed
Class Code	A80
Color	Light Almond
Color - Plugs and Recep.	Light Almond
Color Family	Brown
Comments	Trade Select Residentia.
Connection Orientation	Straight
Connectivity	Push and Side Wire
Country of Origin	CN - China, CN
Country of Origin (subj.	China
Cover Type	No Cover
Current / amperage rati.	15 A
Current / Amperage Rati.	15 A
Current Rating	15 A
Current rating	15 A
Current Stock	57
Description - Invoice	RCPT, DUP, TR, 15A 125V.
Dimensions	1.3 in W x 1.03 in D x .
Display Size	Standard Sized Product
Display Type	Standard Sized Product
Each - Height	1.100 in
Each - Length	4.200 in
Each - Width	1.600 in
ECCN	EAR99
Environmental Conditions	Indoor Dry Unless Prote.
Environmental conditions	Indoor Dry Unless Prote.
EU RoHS Indicator	Yes
Face Plate Height	2.62 in
Face Plate Width	1.52 in
Family Series	Hubbell Plugs & Recepta.
Features	No Additional Features
Flange Type	Non-Flanged
For Location	Indoor
Freight Class Code	06168002
GFCI	No
Grade	Residential, General Use
Gross Weight	0.13 lbs
Ground	Self-Grounding
Grounding	Self-Grounding, Grounded
Harmonization Code	8536698000
Horsepower	1/2
Housing Color	Light Almond
Housing Material	Thermoplastic
Illuminated	No
Image Actual Or Represe.	A
Includes	Mounting Hardware
Includes Mounting Hardw.	Yes
Indoor/Outdoor	Indoor
International Shipping	No
Isolated Ground	No
Item	Receptacle
Item - Plugs and Recept.	Receptacle
Item Number	RR15SLATR
Key Resistance Properti.	Tamper Resistant
Manufacturer	Hubbell
Manufacturer Part Number	RR15SLATR
Market	Residential
Material	Composite/Thermoplastic.
Material - Mounting Har.	Screw Mounting
Material - mounting har.	Screw Mounting
Maximum Amperage	15, 15 amp
Maximum Operating Tempe.	60 Degrees C
Maximum Wire Size	12 AWG
Minimum Operating Tempe.	-20 Degrees C
Minimum Wire Size	14 AWG
Mount Hole Center-to-Ce.	3.28 in
Mount Type	Flush
Mounting Type	Wall Mounted
Mounting Type - Plugs a.	Flush
Mpn	RR15SLATR
MSDS Flag	No
Multimedia Outlet	No
NEMA Configuration	NEMA 1, 5-15R
NEMA Enclosure Rating	1
Nema Rating	5-15R
NEMA Rating	5-15R, NEMA 5-15R, 5-15R
NEMA Receptacle Configu.	5-15R
NEMA Receptacle Configu.	5-15R
Net Weight	0 lbs
No. of Poles	2
No. of Wires	3
Number of Gangs	1
Number of Outlets	2
Number of poles	2-Pole
Number of Poles	2, 2-Pole
Number Of Poles	2-Pole
Number of Poles & Wires	2 Pole / 3 Wire
Number of wires	3-Wire Grounding
Number of Wires	3, 3-Wire Grounding
Number Of Wires	3-Wire Grounding
Outlet Type - Plugs and.	Standard Duplex
Overall Depth	1.03 in
Pack Size	1
Performance	Environmental - Operati.
Phase	1, Single Phase
Polarized	Yes
Primary Resistance Prop.	Tamper Resistant - Tamp.
Product Type	Receptacle
Rated Voltage	125V AC
Receptacle Style	Standard
Receptacle Type	Duplex, Double
Replaced Catalog Number	RR15KLATR;RR15SAL;RR15S.
Resistance Properties	Tamper Resistant
Shrouded	No
SKU	ZO-G8179598
Special Features	Tamper Resistant- Self .
Standard Color Family	Almond
Sub Class Code	A80A805
SubCategory	Electrical
Surge Protection	No
Tamper Resistant	Yes
Temperature Rating (Deg.	-20 to 60
Terminal Type	Side Wire/Push-In, Side.
Type	1-Phase Duplex Self-Gro.
UNSPSC	39121406
UPC	883778301537
USB	No
USB Charger	No
Voltage	125 VAC, 125 volt
Voltage - Plugs and Rec.	125V AC
Voltage Rating	125V AC, 125, 125 VAC
Voltage Rating Descript.	125 VAC
Voltage rating descript.	125 VAC
Wall Plate Included	No
Warranty	1 Year
Wattage	1875
Weather Resistant	No
Weather Resistant - Plu.	No
Weatherproof	No
Wire Connection Type	Push In
Wire Connection Types	Push In
Wire size	#14 AWG to #12 AWG
Wire Size	#14 AWG to #12 AWG
Wiring Method - Plugs a.	Push and Side

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G8179598	1.88	1	53	Hubbell	0.14	1.88 @ 1
Onlinecomponents.com	RR15SLATR	2.08	1	53	Hubbell		2.08 @ 1
turtle.com	HEP RR15SLATR	2.14	1	53	Hubbell		2.14 @ 1
mayerelectric.com	HUBRR15SLATR	2.36	1	53	HUBBELL WIRING DEVICES		2.36 @ 1
steinerelectric.com	981737	2.52	1	53	Hubbell Wiring Device-Kellems		2.52 @ 1
MRO Supply	1100780	2.53	14	39	Hubbell Wiring		2.53 @ 14
gordonelectricsupply.com	RR15SLATR	2.57	1	53	HUBBELL		2.57 @ 1
Galco	RR15SLATR-HBBL	2.6	10	39	Hubbell	0.13	2.6 @ 10
Graybar	25171377	2.8112	1	39	Hubbell Wiring Device - Kellems		2.8112 @ 1
DK Hardware	RR15SLATR	4.13	1	39	Hubbell, Inc		4.13 @ 1
kirbyrisk.com	2210725	4.13	1	2	Hubbell		4.13 @ 1
simsupply.com	ZO-G8179598	8.2	1	57	Hubbell		8.2 @ 1
standardelectricsupply.com	2197914	25.3	1	53	Hubbell		25.3 @ 1
