Hubbell SNAP1221RNA

mpnSNAP1221RNA
brandname: Hubbell
manufacturername: Hubbell

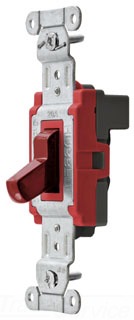

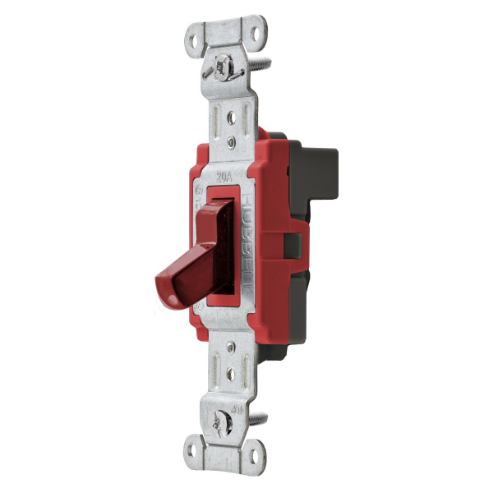

Hubbell SNAP1221RNA Ac Switch

Brand: Hubbell
PartNumber: SNAP1221RNA
Model: SNAP1221RNA
Color: Red
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell Wiring Device
Label: Hubbell Wiring Device

Attributes

Key	Value
Amperage	20 A
Amperage Rating	20A
Amps AC	20 A
Antimicrobial	No
Application Environment	Commercial
Approvals	CSA, UL
Color	Red
Color Family	Red
Country of Origin	US - United States
Country of Origin (subj.	China
Current	20 A
Current / amperage rati.	20 A
Current Rating	20 A
Current rating	20 A
Description/Special Fea.	Abuse-Resistant Thermop.
Dielectric strength	Withstands 1500V AC min.
Dimensions	4.18 in x 1.3 in x 1.74.
ECCN	EAR99
Face Color	Red
Family Series	Hubbell Switches
Features	Automatic Self-Groundin.
For Market	Industrial Grade
Grade	Heavy Duty, Industrial
Gross Weight	0.15 lbs
Grounding	Automatic, Grounded
Height	1.74 in
Horsepower Rating	2 hp
Housing Material	Thermoplastic
HP @ 120 VAC	1 hp
HP @ 240 VAC	2 hp
Illuminated	No
Industry Standard(s)	UL Listed
Item	Wall Switch
Item Number	SNAP1221RNA
Length	4.18 in
Locking	No
Locking Style	Not Applicable
Manufacturer	Hubbell
Manufacturer Part Number	SNAP1221RNA
Market	Industrial
Material	Thermoplastic
Max Temperature Rise	30C maximum at rated cu.
Maximum Operating Tempe.	75 Degrees C
Minimum Operating Tempe.	-40 Degrees C
Mounting Screw Type	Thread Cleaning Captive
Net Weight	0 lbs
No. of Poles	1
Number of poles	Single Pole
Number of Switches	1
Operating temperature	Maximum continuous 75C .
Operator	Toggle
Operator Color	Red
Overall Height	1.74 in
Overall Width	1.3 in
Performance	-40C without impact, Me.
Rated HP	1 to 2
Rated Voltage	120-277V ac
Resistance Properties	Impact Resistant
Standard	UL Listed
Standards	UL/CSA
Style	Single Pole
Switch Configuration	Single Pole
Switch Function	Maintained
Switch Style	Toggle, Toggle Switch
Switch Type	1-Pole
Temperature	-40-167 ?F
Type	Toggle
UNSPSC	39122211
Voltage	120-277 VAC, 120 VAC, 2.
Voltage AC	120 to 277
Voltage Rating	120/277V AC
Voltage rating descript.	120-277 VAC
Width (in)	1.3
Wire Connection Type	Modular Wiring
Wire Connection Types	Snap-In Module
Wiring	Snap Connector
Wiring Method	Back

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Onlinecomponents.com	SNAP1221RNA	7.73	1	In Stock	Hubbell		7.73 @ 1
Zoro	G4568487	10.0	1	In Stock	Hubbell	0.15	10.0 @ 1
gordonelectricsupply.com	SNAP1221RNA	10.66	1	In Stock	HUBBELL		10.66 @ 1
MRO Supply	1500021	11.07	4	In Stock	Hubbell Wiring		11.07 @ 4
Galco	SNAP1221RNA-HBBL	11.4	1	In Stock	Hubbell	0.15	11.4 @ 1
Graybar	25419137	13.9552	1	In Stock	Hubbell Wiring Device - Kellems		13.9552 @ 1
sustainablesupply.com	C1187244	15.46	1	In Stock	Hubbell	0.15	15.46 @ 1
kirbyrisk.com	2460080	22.68	1	In Stock	Hubbell		22.68 @ 1
Raptor Supplies	AC4XEC	25.743744	1	In Stock	HUBBELL WIRING DEVICE-KELLEMS		25.743744 @ 1
