Hubbell HBL8200HW

B00N8ZRWN2

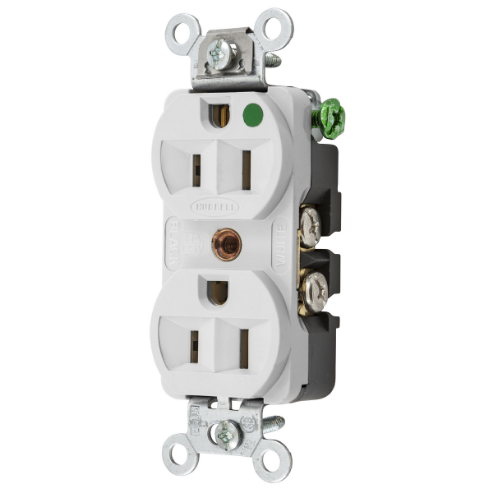

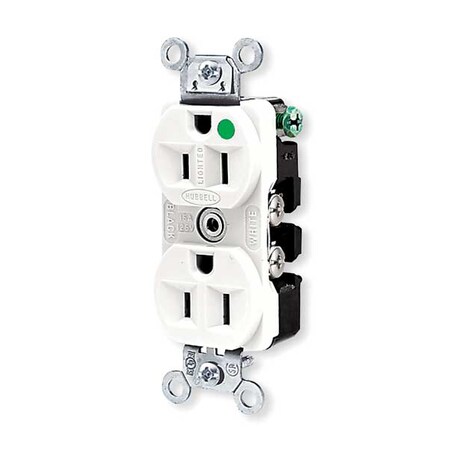

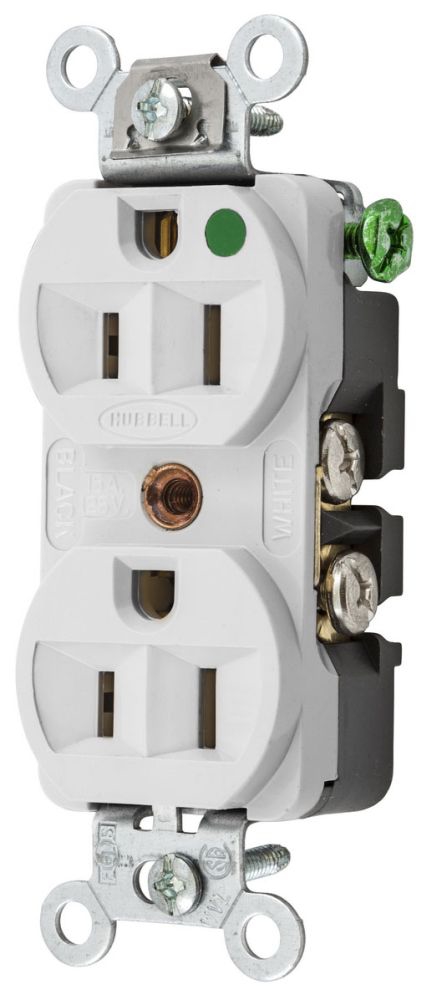

Hubbell HBL8200HW Duplex Receptacle, Compact Hospital Grade, 15 amp, 125V, 5-15R, White

Hubbell HBL8200HW Duplex Receptacle, Compact Hospital Grade, 15 amp, 125V, 5-15R, Whitezoom

Attributes

Key Value
Additional Electrical P.Standard Protection
Additional Electrical P.Standard Protection
AFCINo
Amperage15A, 15 A
Amps15
Amps - Plugs and Recept.15 A
ApplicationSlender/Compact Hospita.
Application EnvironmentHeavy Use Hospital Grade
ApprovalsCSA, UL
BrandHubbell Wiring Device-K.
Carton Quantity10
ColorWhite, Blanc
Color - Plugs and Recep.White
CommentsHospital Grade
Connection OrientationStraight
ConnectivityBack and Side Wired Scr.
Contact MaterialBrass
Contact TypeSocket
Corrosion ResistantNo
Country of Origin (subj.United States
Cover TypeNo Cover
Current Rating15 A
DescriptionSlender/Compact
Dielectric StrengthWithstands 2,000V minim.
Dimensions3.28 in x 1.33 in x 1.0.
Display SizeSlender/Compact
Environmental RatingIndoor Dry Unless Prote.
Face Plate Height2.72 in
Face Plate Width1.33 in
Family SeriesHubbell Plugs & Recepta.
Flange TypeNon-Flanged
For LocationIndoor
GFCINo
GradeHospital Grade Fed. Spe.
Gross Weight0.2 lbs
GroundingGrounded
Horsepower Rating1/2 hp
Housing ColorWhite
Housing ColourWhite
Housing MaterialThermoplastic
HP1/2 hp
IlluminatedNo
IncludesGrounding Staple, Mount.
Includes Mounting Hardw.Yes
IP RatingIP20
Isolated GroundNo
ItemTraditional Duplex, Rec.
Item - Plugs and Recept.Receptacle
Item NumberHBL8200HW
Key Resistance Properti.Standard Resistance
ManufacturerHubbell
Manufacturer Part NumberHBL8200HW
MarketCommercial
MaterialThermoplastic
Maximum Horsepower0.5
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
Mounting Hardware Mater.Screw Mounting
Mounting TypeTabs, Flush
Mounting Type - Plugs a.Flush
Multimedia OutletNo
NEMA Configuration5-15, 5-15R
NEMA Enclosure Rating1
Nema Rating5-15R
NEMA Receptacle Configu.5-15R
NEMA Receptacle Configu.5-15R
NEMA Type5-15R
Net Weight0 lbs
Number of Gangs1
Number of Poles2
Number Of Poles2-Pole
Number of Poles & Wires2 Pole / 3 Wire
Number Of Wires3-Wire
Number of Wires3
Operating TemperatureMaximum continuous 75?C.
Outlet TypeDuplex
Outlet Type - Plugs and.Standard Duplex
Overall Depth1.05 in
Phase1, Single, Single Phase
PolarizedYes
Power IndicatorNo
Primary TypeStraight Blade
Product TypeReceptacle
Resistance PropertiesImpact Resistant
SeriesHospital Grade
ShroudedNo
StandardsCSA Certified C22.2 No..
StyleFinder Groove Face
Sub-CategoryDuplex Receptacles
Surge ProtectionNo
Surge SuppressionNo
Tamper ResistantNo
TerminationScrew
TypeReceptacle, Duplex Rece.
UL 94 Flammability Rati.V-0
USBNo
Voltage125VAC, 125V AC, 125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC, 125 V
Wattage1875 W
Weather ResistantNo
Weather Resistant - Plu.No
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wire Size10-14 AWG, #14 AWG to #.
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG224614221.691In StockHubbell0.121.69 @ 1
thumbzoomsustainablesupply.comC119901722.311In StockHubbell0.122.31 @ 1
grainger.caHBLHBL8200HW30.019336161In StockHUBBELL WIRING DEVICE-KELLEMS0.2530.01933616 @ 1
thumbzoomgordonelectricsupply.comHBL8200HW30.021In StockHUBBELL30.02 @ 1
thumbzoomRaptor SuppliesAD7APC30.11258251In StockHUBBELL WIRING DEVICE-KELLEMS30.1125825 @ 1
standardelectricsupply.com229665030.211In StockHubbell30.21 @ 1
thumbzoomMRO Supply102568230.212In StockHubbell Wiring30.21 @ 2
Onlinecomponents.comHBL8200HW30.441In StockHubbell Wiring Device-Kellems30.44 @ 1
thumbzoomGalcoHBL8200HW-HBBL31.11In StockHubbell0.231.1 @ 1
thumbzoomturtle.comHUB HBL8200HW31.681In StockHubbell31.68 @ 1
steinerelectric.com9148843.161In StockHubbell Wiring Device-Kellems43.16 @ 1
thumbzoomNewark35B82747.171In StockHUBBELL WIRING DEVICES47.17 @ 1
us.rs-online.com7155703049.531879Hubbell Wiring Device-Kellems49.53 @ 1
kirbyrisk.com48351656.141In StockHubbell56.14 @ 1
