CAI - HUBBELL WIRING DEVICE-KELLEMS AFR15TR

mpnAFR15TR
brandname: HUBBELL WIRING DEVICE-KELLEMS
manufacturername: HUBBELL WIRING DEVICE-KELLEMS

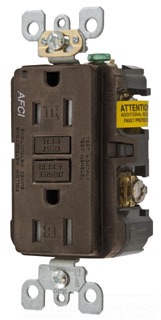

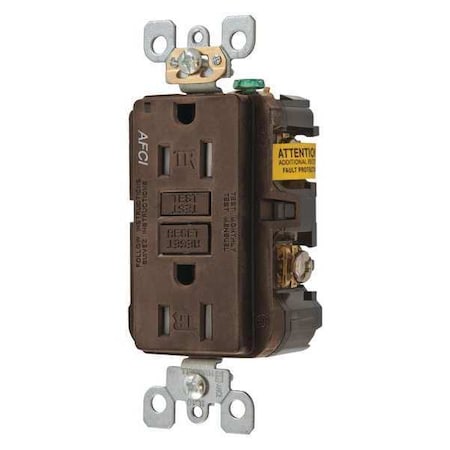

Hubbell Wiring Device-KELLEMS 15A Commercial Environments Arc Fault Receptacle, Brown; Tamper Resistant: Yes

Brand: CAI - HUBBELL WIRING DEVICE-KELLEMS
PartNumber: AFR15TR
PackageQuantity: 1
Manufacturer: CAI - HUBBELL WIRING DEVICE-KELLEMS
Label: CAI - HUBBELL WIRING DEVICE-KELLEMS

Attributes

Key	Value
Additional Electrical P.	AFCI
Additional Electrical P.	AFCI
AFCI	Yes
Amps	15
Amps - Plugs and Recep.	15
Amps - Plugs and Recept.	15 A
Application Environment	Commercial
Approvals	CSA, UL
Color	Brown
Color - Plugs and Recep.	Brown
Connection Orientation	Straight
Corrosion Resistant	No
Country of Origin (subj.	China
Cover Type	No Cover
Current Rating	15 A
Description	Finder Groove
Face Plate Height	2.6 in
Face Plate Width	1.68 in
Family Series	Hubbell Plugs & Recepta.
Flange Type	Non-Flanged
GFCI	Yes, No
Grade	General Use
Gross Weight	0.25 lbs
Grounding	Grounded
Horsepower Rating	1/2 hp
Housing Color	Brown
Housing Material	Nylon
HP	1/2 hp
Illuminated	Yes
IP Rating	20
Isolated Ground	No
Item	Receptacle
Item - Plugs and Recept.	Arc Fault Receptacle
Item Number	AFR15TR
Key Resistance Properti.	Tamper Resistant
Manufacturer	Hubbell
Manufacturer Part Number	AFR15TR
Market	Commercial
Material	Nylon
Maximum Operating Tempe.	150 Degrees F
Minimum Operating Tempe.	-30 Degrees F
Mount Hole Center-to-Ce.	3.81 in
Mount Type	Flush
Mounting Type	Flush
Mounting Type - Plugs a.	Flush
Multimedia Outlet	No
NEMA Configuration	5-15R
NEMA Enclosure Rating	1
NEMA Rating	1
NEMA Receptacle Configu.	5-15R
NEMA Receptacle Configu.	5-15R
Net Weight	0 lbs
Number of Gangs	1
Number of Poles	2
Number of Poles & Wires	2 Pole / 3 Wire
Number of Wires	3
Outlet Type	Duplex
Outlet Type - Plugs and.	Standard Duplex
Overall Depth	1.35 in
Phase	1
Polarized	Yes
Power Indicator	No
Primary Resistance Prop.	Tamper Resistant - Tamp.
Product Type	Receptacle
Receptacle Type	Duplex
Resistance Properties	Tamper Resistant
Self Testing	Yes
Shrouded	No
Special Features	Standard
Standards	CSA Certified, UL Listed
Sub-Category	Duplex Receptacles
Surge Protection	No
Surge Suppression	No
Tamper Resistant	Yes
UL 94 Flammability Rati.	V-2
USB	No
Voltage	125VAC, 125 VAC
Voltage - Plugs and Rec.	125V AC
Voltage Rating	125V AC
Weather Resistant	No
Weather Resistant - Plu.	No
Wire Connection Type	Screw Terminals
Wire Connection Types	Screw Terminals
Wiring Method	Back and Side
Wiring Method - Plugs a.	Back and Side

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
AmazonSC	B07695NHTJ	17.74	1	2		HUBBELL WIRING DEVICES		17.74 @ 2
MRO Supply	5016403	63.0	1	2	14	HUBBELL-WIRING		63.0 @ 2
sustainablesupply.com	C2890284	63.05	1	2		Hubbell Kellems	0.25	63.05 @ 2
gordonelectricsupply.com	AFR15TR	63.95	1	2		HUBBELL		63.95 @ 2
Zoro	G4571887	65.59	1	2	19	Hubbell	0.25	65.59 @ 2
Galco	AFR15TR-HBBL	67.5	1	2		Hubbell	0.25	67.5 @ 2
turtle.com	HUB AFR15TR	76.0	1	2		Hubbell		76.0 @ 2
Newark	82X4787	105.12	1	2		HUBBELL WIRING DEVICES		105.12 @ 2
