CAI - HUBBELL WIRING DEVICE-KELLEMS AFR20TR

mpnAFR20TR
brandname: HUBBELL WIRING DEVICE-KELLEMS
manufacturername: HUBBELL WIRING DEVICE-KELLEMS

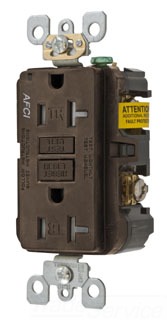

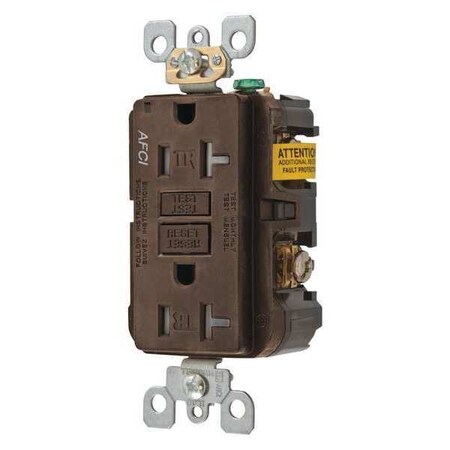

Hubbell Wiring Device-KELLEMS 20A Commercial Environments Arc Fault Receptacle, Brown; Tamper Resistant: Yes

Brand: CAI - HUBBELL WIRING DEVICE-KELLEMS
PartNumber: AFR20TR
PackageQuantity: 1
Manufacturer: CAI - HUBBELL WIRING DEVICE-KELLEMS
Label: CAI - HUBBELL WIRING DEVICE-KELLEMS

Attributes

Key	Value
Additional Electrical P.	AFCI, GFCI
Additional Electrical P.	AFCI & GFCI
AFCI	Yes
Amps	20
Amps - Plugs and Recep.	20
Amps - Plugs and Recept.	20 A
Application Environment	Commercial
Approvals	CSA, UL
Color	Brown
Color - Plugs and Recep.	Brown
Connection Orientation	Straight
Corrosion Resistant	No
Country of Origin (subj.	China
Cover Type	No Cover
Current Rating	20 A
Description	Finder Groove
Face Plate Height	2.6 in
Face Plate Width	1.68 in
Family Series	Hubbell Plugs & Recepta.
Flange Type	Non-Flanged
GFCI	Yes
Grade	General Use
Gross Weight	0.25 lbs
Grounding	Grounded
Horsepower Rating	1 hp
Housing Color	Brown
Housing Material	Nylon
HP	1 hp
Illuminated	Yes
IP Rating	20
Isolated Ground	No
Item	Receptacle
Item - Plugs and Recept.	Arc Fault Receptacle
Item Number	AFR20TR
Key Resistance Properti.	Tamper Resistant
Manufacturer	Hubbell
Manufacturer Part Number	AFR20TR
Market	Commercial
Material	Nylon
Maximum Operating Tempe.	150 Degrees F
Minimum Operating Tempe.	-30 Degrees F
Mount Hole Center-to-Ce.	3.81 in
Mount Type	Flush
Mounting Type	Flush
Mounting Type - Plugs a.	Flush
Multimedia Outlet	No
NEMA Configuration	5-20R
NEMA Enclosure Rating	1
NEMA Rating	1
NEMA Receptacle Configu.	5-20R
NEMA Receptacle Configu.	5-20R
Net Weight	0 lbs
Number of Gangs	1
Number of Poles	2
Number of Poles & Wires	2 Pole / 3 Wire
Number of Wires	3
Outlet Type	Duplex
Outlet Type - Plugs and.	Standard Duplex
Overall Depth	1.35 in
Phase	1
Polarized	Yes
Power Indicator	No
Primary Resistance Prop.	Tamper Resistant - Tamp.
Product Type	Receptacle
Receptacle Type	Duplex
Resistance Properties	Tamper Resistant
Self Testing	Yes
Shrouded	No
Special Features	Standard
Standards	CSA Certified, UL Listed
Sub-Category	Duplex Receptacles
Surge Protection	No
Surge Suppression	No
Tamper Resistant	Yes
UL 94 Flammability Rati.	V-2
USB	No
Voltage	125VAC, 125 VAC
Voltage - Plugs and Rec.	125V AC
Voltage Rating	125V AC
Weather Resistant	No
Weather Resistant - Plu.	No
Wire Connection Type	Screw Terminals
Wire Connection Types	Screw Terminals
Wiring Method	Back and Side
Wiring Method - Plugs a.	Back and Side

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
sustainablesupply.com	C2890223	66.72	1	In Stock		Hubbell Kellems	0.25	66.72 @ 1
Zoro	G4571905	67.36	1	In Stock		Hubbell	0.25	67.36 @ 1
gordonelectricsupply.com	AFR20TR	68.37	1	In Stock		HUBBELL		68.37 @ 1
MRO Supply	5016411	70.07	1	In Stock	14	Hubbell Wiring		70.07 @ 1
Galco	AFR20TR-HBBL	72.13	1	In Stock		Hubbell	0.25	72.13 @ 1
cbtcompany.com	AFR20TR	76.63	1	In Stock		Hubbell Wiring Device-Kellems		76.63 @ 1
Newark	82X4796	115.76	1	In Stock		HUBBELL WIRING DEVICES		115.76 @ 1
