Hubbell HBL4716C

B00GQQQEVQ

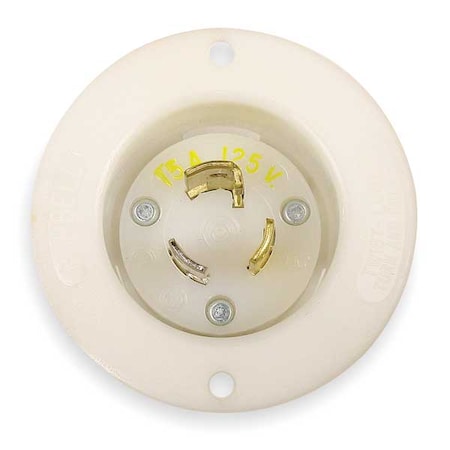

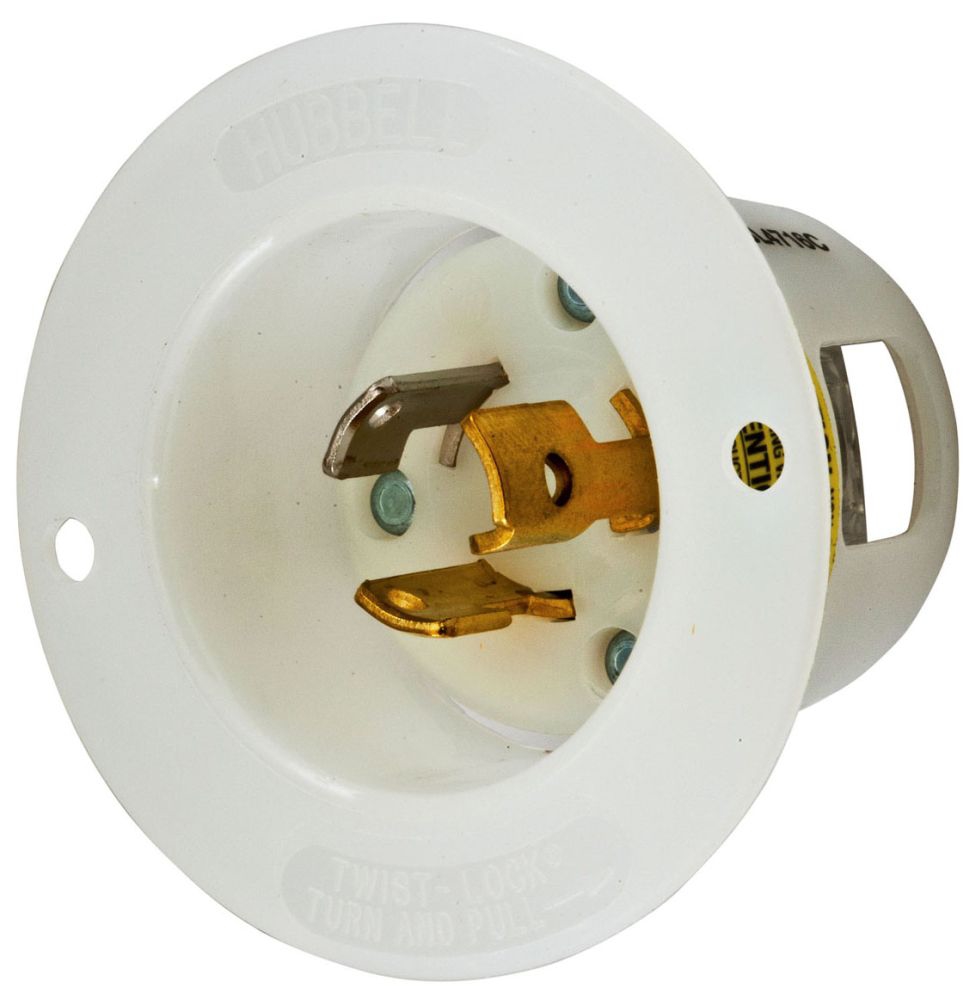

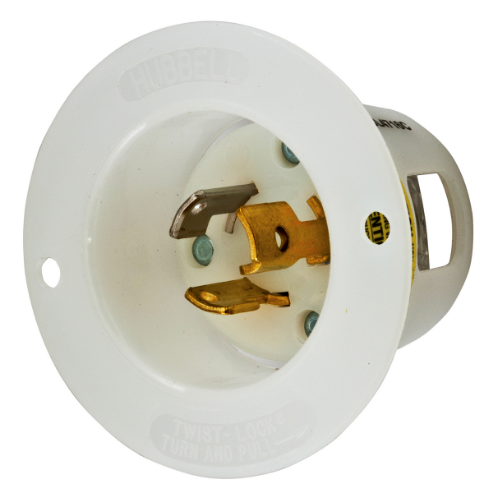

Hubbell HBL4716C Connector Power

Hubbell HBL4716C Connector Powerzoom

Attributes

Key Value
ActuatorNo
Agency ApprovalsUL ; CSA
Amperage15 A
Amperage Rating15A, 15 Amp
Amps15
ApplicationHeavy Duty Industrial
ApprovalsCSA, UL
AWG Range#18 AWG to #10 AWG
Blade MaterialBrass
Body TypeStraight
Brand NameHubbell-Wiring
ColorWhite
Color FamilyWhite
Color/FinishWhite
Conductor Size18-10 AWG
Connection OrientationStraight
ConnectivityBack Wired Screw Termin.
Contact TypePin
Corrosion ResistantNo
Country of OriginUS - United States
Country Of OriginUnited States of America
Current / amperage rati.15 A
Current Rating15 A
Current rating15 A
Degree of ProtectionIP20
Dielectric Strength2000 Volt
Dielectric strengthWithstands 2,000V minim.
Dielectric Voltage2000 V (Min.)
Dimensions2.56 in x 2.56 in x 1.7.
Display SizeStandard Sized Product
Display sizeStandard Sized Product
Display TypeStandard Sized Product
ECCNEAR99
Energy Star FlagNo
Environmental ConditionsHB or Better Flammabili.
Environmental conditionsIndoor Dry Unless Prote.
Face Diameter1.69 in
Face Plate Width0.06 in
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
FeaturesAccepts Slotted, Philli.
FinishNo
Flange Diameter2.19 in
Flange TypeFlanged
For EnvironmentDry
For LocationIndoor
GradeGeneral Use, Industrial
Gross Weight0.15 lbs
GroundingGrounded, Grounding
GTIN00783585171050
Height1.72 in, 1.72 in.
Horsepower Rating1/2 hp
Housing ColourWhite
Housing MaterialNylon
IncludesMounting Screws
Includes Mounting Hardw.Yes
InsulationInsulated Body
IP RatingIP20
Isolated GroundNo
ItemFlanged Locking Inlet
Item NameLocking Flanged Inlet
Item NumberHBL4716C
Item type15A Grounding Insulgrip.
Length2.56 in, 2.56 in.
ManufacturerHubbell
Manufacturer NameHubbell-Wiring
Manufacturer Part NumberHBL4716C
MarketIndustrial
MaterialNylon
Material - mounting har.Screw Mounting
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size18 AWG
Mount TypeFlush
MountingScrew
Mounting TypeFlange Mount, Flush Mou.
NEMA ConfigurationL5-15, L5-15P, NEMA L5-.
NEMA Enclosure Rating12, 4X
NEMA Plug ConfigurationL5-15P
Nema RatingL5-15P
NEMA Rating12, 4X
NEMA TypeL5-15P
Net Weight0.1 lbs
No. of Poles2
No. of Wires3
Number of Blades3
Number of Contacts3
Number of poles2-Pole
Number of Poles2 ; 1 E, 2
Number of Wires3.0000, 3
Number of wires3-Wire
OEM brand nameHubbell wiring device-k.
Operating temperatureMaximum continuous 75C .
Overall Depth1.719 in
Phase1, Single, Single phase
Power Rating0.5 hp
Primary TypeTwist Lock
Rated Voltage125V
Resistance PropertiesImpact Resistant, Moist.
RoHS FlagYes
SeriesInsulgrip Series
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
Special FeaturesFlanged
StandardCertified to CSA C22.2 .
StandardsUL/CSA, UL 498 Listed, .
Sub BrandInsulgrip? Twist-Lock?
Temperature Rating-40 to 75 deg C
Temperature rating-40 C w/o impact, -25 w.
Terminal Clamp MaterialSteel-Nickel Plated
Terminal Screw MaterialBrass
TerminationScrew
TypeFlanged Inlet, Flanged .
UL 94 Flammability Rati.HB
UNSPSC39121406
UPC78358517105
UPC Code783585171050
Voltage125V AC, 125 V
Voltage Rating125 Volt AC, 125V AC, 1.
Voltage rating descript.125 V
WatertightNo
Width2.56 in, 2.56 in.
Width (in)2.56
Wire Connection TypeScrew Terminals
Wire Size#18 AWG - #10 AWG solid.
Wire size#18 AWG to #10 AWG
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesHBL4716C17.95156Hubbell Wiring Device-Kellems17.95 @ 1
Onlinecomponents.comHBL4716C18.841In StockHUBBELL18.84 @ 1
thumbzoomZoroG118148519.051251Hubbell0.119.05 @ 1
thumbzoomCarlton Bates Company7835851710521.51In StockHUBBELL21.5 @ 1
AmazonTPB00DJUJEH822.951In Stock2Hubbell Wiring Device-Kellems22.95 @ 1
Heilind ElectronicsHBL4716C23.019Hubbell Wiring Device-Kellems23.0 @ 1
Monarch Electric10734123.291In StockHubbell-Wiring23.29 @ 1
standardelectricsupply.com1860424.211In StockHubbell24.21 @ 1
thumbzoomMRO Supply102312924.212In StockHubbell Wiring24.21 @ 2
thumbzoomgordonelectricsupply.comHBL4716C24.581In StockHUBBELL24.58 @ 1
thumbzoomGalcoHBL4716C-HBBL24.931In StockHubbell0.1524.93 @ 1
thumbzoomturtle.comHUB HBL4716C25.941In StockHubbell25.94 @ 1
cbtcompany.comHBL4716C26.481In StockHubbell Wiring Device-Kellems26.48 @ 1
Grainger3D17026.6512010HUBBELL WIRING DEVICE-KELLEMS26.65 @ 1
steinerelectric.com2644327.761In StockHubbell Wiring Device-Kellems27.76 @ 1
thumbzoomsustainablesupply.comC119280528.321In StockHubbell0.128.32 @ 1
Graybar9500551832.09921In StockHubbell Wiring Device - Kellems32.0992 @ 1
thumbzoomRadwellHBL4716C34.0110HUBBELL KELLEMS34.0 @ 1
us.rs-online.com7023414937.66159Hubbell Wiring Device-Kellems37.66 @ 1
grainger.caHBLHBL4716C38.054008581In StockHUBBELL WIRING DEVICE-KELLEMS0.138.05400858 @ 1
thumbzoomNewark98F89138.99151HUBBELL WIRING DEVICES38.99 @ 1
kirbyrisk.com48671947.78124Hubbell47.78 @ 1
thumbzoomRaptor SuppliesAC8QAU50.31427051In StockHUBBELL WIRING DEVICE-KELLEMS50.3142705 @ 1
thumbzoomebay.com_cva661HBL4716C114.941In StockHUBBELL-WIRING114.94 @ 1
thumbzoomebay.com_onlymonthrufridayHBL4716C114.981In StockHUBBELL-WIRING114.98 @ 1
thumbzoomebay.com_jj*industrialHBL4716C114.991In StockHUBBELL-WIRING114.99 @ 1
thumbzoomebay.com_semifabincHBL4716C119.981In StockHUBBELL-WIRING119.98 @ 1
thumbzoomebay.com_tooling_supplyHBL4716C122.991In StockHUBBELL-WIRING122.99 @ 1
thumbzoomebay.com_saleaxisHBL4716C144.721In StockHUBBELL-WIRING144.72 @ 1
thumbzoomebay.com_il-abadHBL4716C157.991In StockHUBBELL-WIRING157.99 @ 1
