Kellems HBL2420SW

B0078S98TG

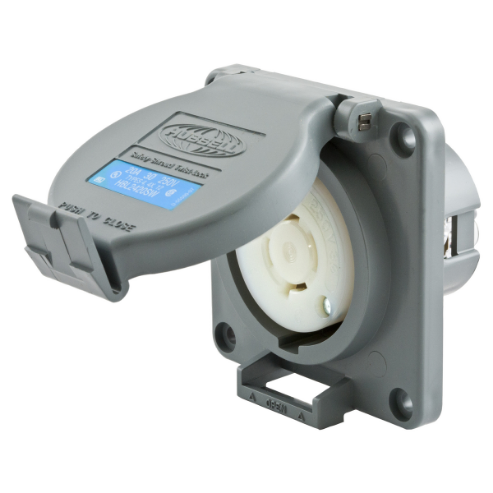

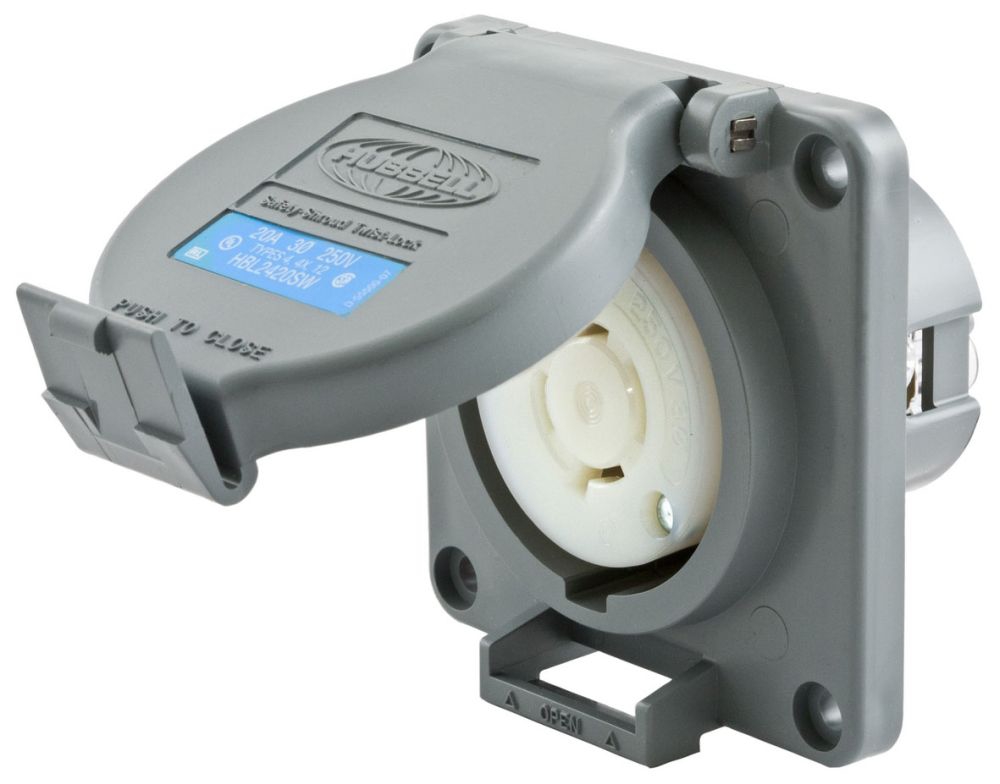

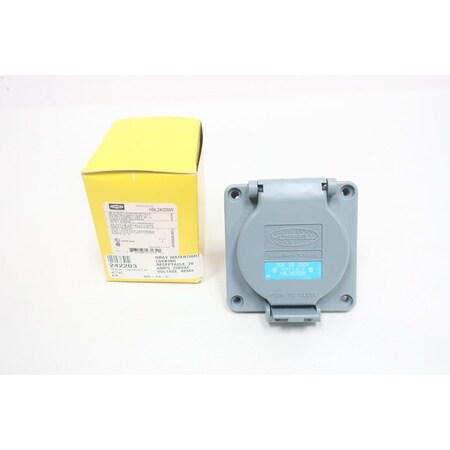

KELLEMS HBL2420SW 3 Pole, NEMA L15-20R, Gray, Heavy Duty Receptacle, 250 V AC, PBT HOUSING and Flange, 20 AMP, Watertight, Screw Terminal, Industrial Shrouded, 3 Phase, 4 Wire

KELLEMS HBL2420SW 3 Pole, NEMA L15-20R, Gray, Heavy Duty Receptacle, 250 V AC, PBT HOUSING and Flange, 20 AMP, Watertight, Screw Terminal, Industrial Shrouded, 3 Phase, 4 Wirezoom

Attributes

Key Value
AFCINo
Amperage20A
Amperage Rating20A
ApplicationHeavy Duty Industrial S.
ApprovalsCSA, UL
AWG Range#16 AWG to #8 AWG
BrandWatertight Safety Shroud
ColorGray, Black
Color FamilyGray
Connection OrientationStraight
Contact MaterialBrass
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.Unknown
Cover TypeLocking Flip-Up Cover
Current Rating20 A
Display TypeStandard Sized Product
ECCNEAR99
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
Flange DiameterNot Applicable
Flange HeightNot Applicable
Flange TypeNon-Flanged
Flange WidthNot Applicable
GradeIndustrial
Gross Weight0.635 lbs
GroundingGrounded
Height2.9 in.
Horsepower Rating3 hp
Housing ColourGray
Housing MaterialValox
HP3
IP RatingIP69K
Isolated GroundNo
ItemWatertight Locking Rece.
Item NumberHBL2420SW
Length3.75 in.
ManufacturerHubbell
Manufacturer Part NumberHBL2420SW
MarketIndustrial
MaterialThermoplastic
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size16 AWG
Mount TypeFlush
NEMA ConfigurationL15-20R
NEMA Enclosure Rating12, 4, 4X
NEMA Receptacle Configu.L15-20R
NEMA TypeL15-20
Net Weight0.535 lbs
No. of Poles3
No. of Wires4
Number of Gangs1
Number of Poles3
Number of Wires4
Phase3, Three
PolarizedYes
Rated Voltage250V
Resistance PropertiesMoisture Resistant, Wat.
SeriesInsulgrip Series
ShroudedYes
Special FeaturesLocking
StandardUL Listed, CSA Certifie.
StandardsUL 94V-0/CSA
TerminationScrew
TypeFlanged Locking Outlet,.
UL 94 Flammability Rati.V-2
UNSPSC39121406
UPC Code783585231341
Voltage3 Phase 250V AC
Voltage Rating250V AC, 250 V
WatertightYes
Width3.75 in.
Wire Connection TypeScrew Terminals
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB007IA21CU99.991In StockHubbell Wiring Device-Kellems99.99 @ 1
thumbzoomsustainablesupply.comC1198889100.031In StockHubbell0.5100.03 @ 1
AmazonTPB0078S98TG100.791In Stock3HUBBELL100.79 @ 1
Onlinecomponents.comHBL2420SW114.2311Hubbell Wiring Device-Kellems114.23 @ 1
thumbzoomgordonelectricsupply.comHBL2420SW119.191In StockHUBBELL119.19 @ 1
standardelectricsupply.com2266385121.01In StockHubbell121.0 @ 1
thumbzoomMRO Supply1020782121.01In StockHubbell Wiring121.0 @ 1
thumbzoomGalcoHBL2420SW-HBBL124.561In StockHubbell0.635124.56 @ 1
cbtcompany.comHBL2420SW132.321In StockHubbell Wiring Device-Kellems132.32 @ 1
thumbzoomRadwellHBL2420SW145.012HUBBELL KELLEMS145.0 @ 1
thumbzoombscsource.comHBL2420SW150.691In StockHubbell Wiring Device-Kellems150.69 @ 1
Graybar95024629152.61121In StockHubbell Wiring Device - Kellems152.6112 @ 1
thumbzoomNewark35B529153.311In StockHUBBELL WIRING DEVICES153.31 @ 1
steinerelectric.com26557157.01In StockHubbell Wiring Device-Kellems157.0 @ 1
thumbzoomZoroG506049029157.11In StockHubbell157.1 @ 1
us.rs-online.com70575087164.812Hubbell Wiring Device-Kellems164.8 @ 1
grainger.caHBLHBL2420SW173.119247121In StockHUBBELL WIRING DEVICE-KELLEMS0.65173.11924712 @ 1
thumbzoomNational Supply Network73122483173.351In StockHubbell Wiring Device-Kellems173.35 @ 1
kirbyrisk.com488570204.351In StockHubbell204.35 @ 1
thumbzoomRaptor SuppliesAD6ZHN217.33574851In StockHUBBELL WIRING DEVICE-KELLEMS217.3357485 @ 1
