Hubbell Wiring Systems HBL2423SW

B000LEZ1LI

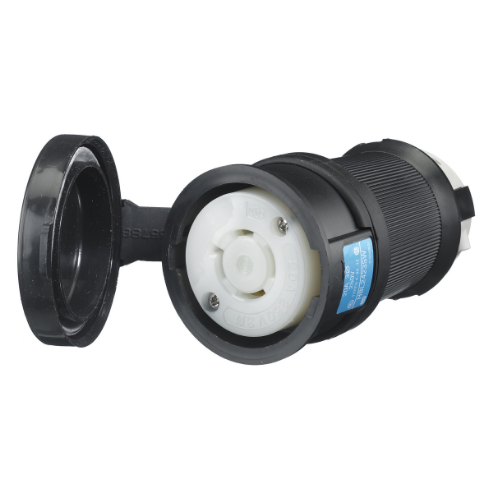

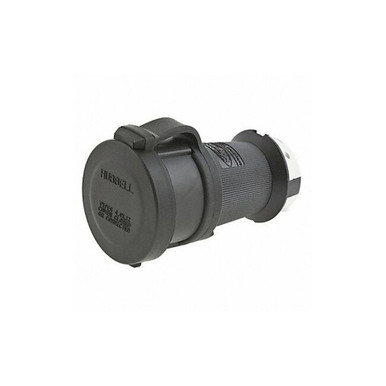

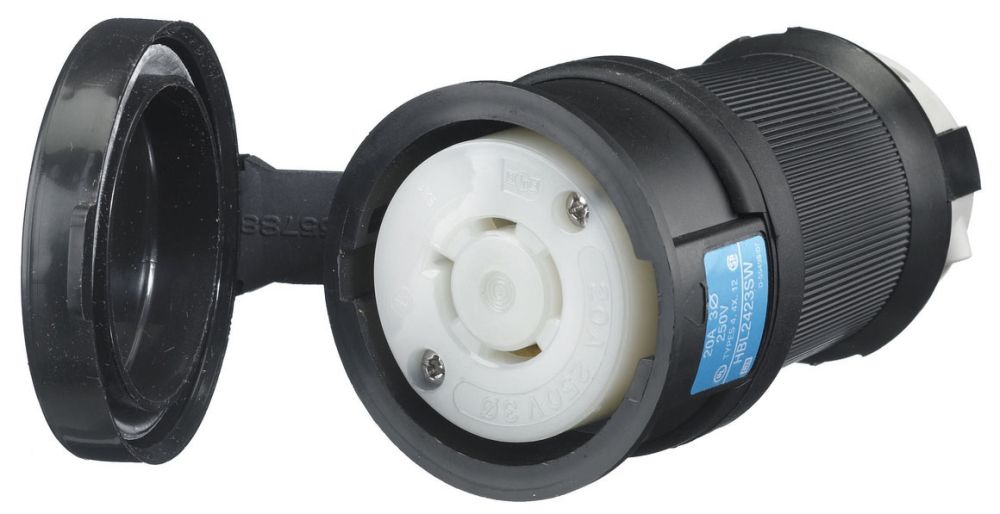

Hubbell Wiring Systems HBL2423SW Twist-Lock Watertight Safety Shroud Female Connector, 20 amp, 3-Phase 250VAC, 3-Pole, 4-Wire Grounding, L15-20R, Black/White

Hubbell Wiring Systems HBL2423SW Twist-Lock Watertight Safety Shroud Female Connector, 20 amp, 3-Phase 250VAC, 3-Pole, 4-Wire Grounding, L15-20R, Black/Whitezoom

Attributes

Key Value
Amperage Rating20A, 20
Amps20
Amps - Plugs and Recept.20
AntimicrobialNo
ApplicationHeavy Duty Industrial
ApprovalsCSA, UL
AWG Range#16 AWG to #8 AWG
Body TypeStraight
BrandWatertight Safety Shrou.
Cable Range0.350 - 1.150 in.
Cap TypePress-On Cap
Catalog NumberHBL2423SW
ColorBlack/White, Black, Bla.
Color - Plugs and Recep.Black/White
Color FamilyMulti
Conductor Range#12AWG to #10AWG
ConnectionPressure Screw Terminal
Connection OrientationStraight
Contact MaterialBrass
Cord Size0.350 in to 1.150 in
Corrosion ResistantNo
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Current Rating20 A
Current Stock47
Display TypeStandard
ECCNEAR99
Environmental ConditionsWatertight
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
For Maximum Cable Diame.1.15 in
For Minimum Cable Diame.0.35 in
GradeIndustrial, Industrial/.
Grade - Plugs and Recep.Industrial
Gross Weight0.86 lbs
GroundingGrounded
GTIN00783585231389
Height4.4 in.
Horsepower Rating2 hp
Housing ColorBlack, White
Housing ColourBlack, White
Housing MaterialValox
HP3.0
InsulationInsulated Body
Insulation MaterialThermoplastic
International ShippingNo
IP RatingIP66
Isolated GroundNo
ItemWatertight Locking Conn.
Item - Plugs and Recept.Watertight Locking Conn.
Item NumberHBL2423SW
Item TypeConnector Body
Lead TimeExpected to ship in 1-2.
Length2.75 in.
Made in USAYes
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberHBL2423SW
MarketIndustrial
MaterialComposite, Impact Modif.
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size8 AWG
Midget LockingNo
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size16 AWG
MountingCord
MpnHBL2423SW
NEMA ConfigurationL15-20R, L15-20
NEMA Enclosure Rating12, 4, 4X
NEMA Plug Configuration.L15-20R
NEMA Rating12, 4, 4X, 5
NEMA Receptacle Configu.L15-20R
NEMA TypeL15-20
Net Weight0.57 lbs
No. of Poles3
No. of Wires4
Number of Conductors4-Wire Grounding
Number of Poles3
Number of Wires4
Outside Diameter2.75 in
Overall Length2.75 in
Phase3, Three
Power Indicating LightNo
Power IndicatorNo
Rated Voltage250V
Resistance PropertiesImpact Resistant, Moist.
SeriesInsulgrip Series
ShroudedYes
Shrouded / Non-ShroudedShrouded
Size2.75 in x 2.75 in x 4.4.
SKUZO-G0646432
Special FeaturesStandard Product, Locki.
StandardUL Listed, CSA Certifie.
StandardsCSA Certified Type 4, 4.
Sub BrandTwist-Lock
SubCategoryElectrical
Temperature RatingMaximum Continuous: 75?.
TerminationScrew
TypeLocking Socket, Connect.
UL 94 Flammability Rati.V-0
UNSPSC39121421
UPC783585231389
UPC Code783585231389
Voltage250VAC
Voltage - Plugs and Rec.250V AC
Voltage Rating250V AC, 250, 250 V
WatertightYes
Width2.75 in.
Wire Connection TypeScrew Terminals
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC1198892111.941In StockHubbell0.7111.94 @ 1
thumbzoomZoroG0646432119.71In StockHubbell0.7119.7 @ 1
VericalHBL2423SW121.8916Hubbell Wiring Device-Kellems121.89 @ 1
thumbzoomgordonelectricsupply.comHBL2423SW126.31In StockHUBBELL126.3 @ 1
standardelectricsupply.com2251586128.211In StockHubbell128.21 @ 1
cbtcompany.comHBL2423SW140.211In StockHubbell Wiring Device-Kellems140.21 @ 1
thumbzoomGalcoHBL2423SW-HBBL143.61In StockHubbell0.86143.6 @ 1
thumbzoomturtle.comHUB HBL2423SW144.211In StockHubbell144.21 @ 1
thumbzoomsimsupply.comZO-G0646432146.84147Hubbell146.84 @ 1
thumbzoombscsource.comHBL2423SW150.391In StockHubbell Wiring Device-Kellems150.39 @ 1
thumbzoomRadwellHBL2423SW155.011HUBBELL KELLEMS155.0 @ 1
Graybar95024631160.395211Hubbell Wiring Device - Kellems160.3952 @ 1
steinerelectric.com26559166.451In StockHubbell Wiring Device-Kellems166.45 @ 1
thumbzoomcrescentelectric.com16430169.461In StockHubbell Wiring Device - Kellems169.46 @ 1
grainger.caHBLHBL2423SW171.97973171In StockHUBBELL WIRING DEVICE-KELLEMS0.3171.9797317 @ 1
us.rs-online.com70575085196.7811Hubbell Wiring Device-Kellems196.78 @ 1
thumbzoomNewark35B532200.151In StockHUBBELL WIRING DEVICES200.15 @ 1
thumbzoomNational Supply Network73122517203.221In StockHubbell Wiring Device-Kellems203.22 @ 1
kirbyrisk.com488586216.531In StockHubbell216.53 @ 1
thumbzoomRaptor SuppliesAD6ZHR236.57651551In StockHUBBELL WIRING DEVICE-KELLEMS236.5765155 @ 1
