CAI - HUBBELL WIRING DEVICE-KELLEMS HBL2435SW

B07J2X7LFV

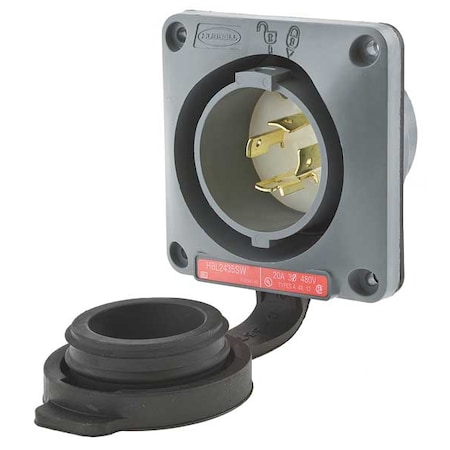

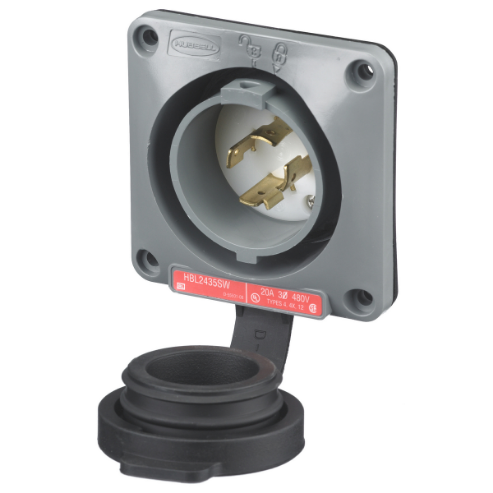

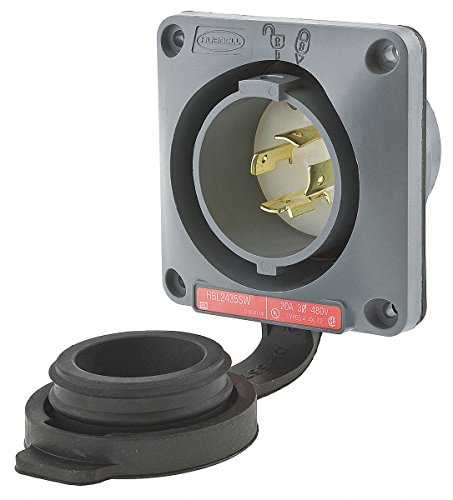

Hubbell Wiring Device-KELLEMS Gray Watertight Flanged Locking Inlet, 20 Amps, 480VAC Voltage, NEMA Configuration: L16-20P

Hubbell Wiring Device-KELLEMS Gray Watertight Flanged Locking Inlet, 20 Amps, 480VAC Voltage, NEMA Configuration: L16-20Pzoom

Attributes

Key Value
Amperage20 A
Amperage Rating20A
Amps20
ApplicationExtra Heavy Duty Indust.
ApprovalsCSA, UL
AWG Range#16 AWG to #8 AWG
BrandTwist-Lock
Cable range0.350 - 1.150 in
Cable Range0.350 - 1.150 in.
ColorGray, Gray/White, Gray,.
Color FamilyMulti
ConnectivityScrew terminals
Contact TypePin
Cord range0.350 in-1.150 in (9-29)
Cord Size16 to 8 AWG
Corrosion ResistantNo
Country of OriginUS - United States
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric strengthWithstands 2,000V minim.
Dimensions3.75 in x 3.75 in x 2.4.
Display TypeStandard Sized Product
ECCNEAR99
Environmental conditionsWatertight
Face Plate Height3.75 in
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
Flange Height3.75 in
GradeGeneral Use
Gross Weight0.615 lbs
Height2.44 in., 2.44 in
HP5.0
Industry Standard(s)UL Listed, CSA Certifie.
InsulationInsulated Body
IP RatingIP66
Isolated GroundNo
ItemWatertight Flanged Lock.
Item NumberHBL2435SW
Length3.75 in., 3.75 in
ManufacturerHubbell
Manufacturer Part NumberHBL2435SW
MaterialThermoplastic, Reinforc.
Material - mounting har.Screw Mounting
Max HP5
Maximum Wire Size8 AWG
Minimum Wire Size16 AWG
Mounting TypeFlush Mount
NEMA ConfigurationL16-20, L16-20P
Nema RatingL16-20P
NEMA Rating12, 4, 4X
NEMA TypeL16-20
Net Weight0.515 lbs
No. of Poles3
No. of Wires4
Number of poles3-Pole
Number of Poles3
Number of wires4-Wire
Number of Wires4
Operating temperatureMaximum continuous 75C .
Overall Depth2.267 in
Phase3, Three, Three phase
Rated Voltage480V
SeriesInsulgrip Series
Shrouded / Non-ShroudedShrouded
Special FeaturesLocking, With Locking C.
StandardUL Listed, CSA Certifie.
StandardsCSA Type 4, 4X and Type.
Temperature rating-40 C w/o impact, -25 w.
TerminationScrew
TypeFlanged Inlet, Flanged .
UNSPSC39121406
UPC Code783585231488
Voltage480V AC, 480 V
Voltage Rating480 V
Voltage rating descript.480 V
WatertightYes
Width3.75 in.
Width (in)3.75
Wire size#16 AWG to #8 AWG
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL2435SW51.9413HUBBELL51.94 @ 1
thumbzoomsustainablesupply.comC119890065.971In StockHubbell0.765.97 @ 1
thumbzoomgordonelectricsupply.comHBL2435SW78.671In StockHUBBELL78.67 @ 1
thumbzoomMRO Supply102084679.861In StockHubbell Wiring79.86 @ 1
standardelectricsupply.com214250781.51In StockHubbell81.5 @ 1
thumbzoomZoroG059598783.85132Hubbell0.783.85 @ 1
thumbzoomGalcoHBL2435SW-HBBL89.441In StockHubbell0.61589.44 @ 1
Graybar9502526099.9041In StockHubbell Wiring Device - Kellems99.904 @ 1
thumbzoomRadwellHBL2435SW100.011HUBBELL KELLEMS100.0 @ 1
thumbzoombscsource.comHBL2435SW104.091In StockHubbell Wiring Device-Kellems104.09 @ 1
VericalHBL2435SW110.911Hubbell Wiring Device-Kellems110.9 @ 1
thumbzoomNational Supply Network73122608123.911In StockHubbell Wiring Device-Kellems123.91 @ 1
thumbzoomNewark52F1625127.231In StockHUBBELL WIRING DEVICES127.23 @ 1
us.rs-online.com70575088130.921In StockHubbell Wiring Device-Kellems130.92 @ 1
kirbyrisk.com500389134.871In StockHubbell134.87 @ 1
thumbzoomRaptor SuppliesAD6ZRD170.67521251In StockHUBBELL WIRING DEVICE-KELLEMS170.6752125 @ 1
