Hubbell HBL2521

B000NVB172

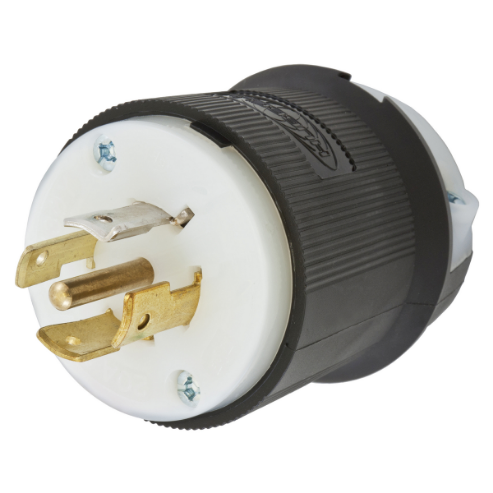

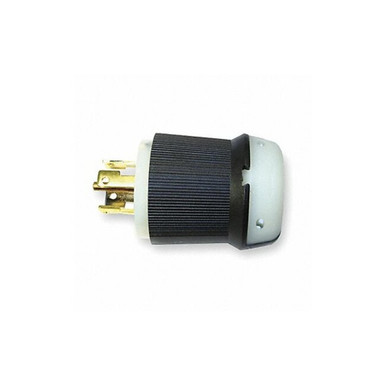

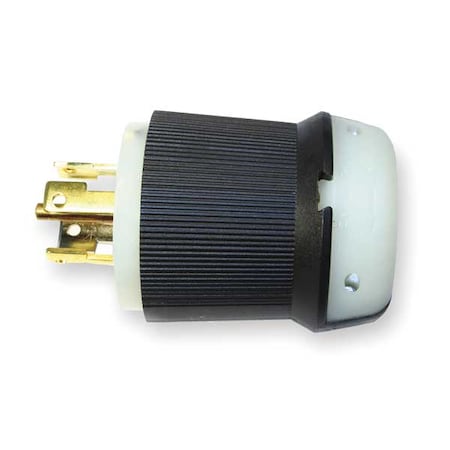

Hubbell HBL2521 Locking Plug, 20 amp, 277/480V, L22-20P, Black and White

Hubbell HBL2521 Locking Plug, 20 amp, 277/480V, L22-20P, Black and Whitezoom

Attributes

Key Value
Amperage20A, Amperage
Amperage Rating20A, 20 Amp
Amps20
Amps - Plugs and Recept.20
AntimicrobialNo
ApplicationExtra Heavy Duty Indust.
ApprovalApproval
ApprovalsCSA, UL
AWG Range#16 AWG to #8 AWG
Blade MaterialBrass
Body Length2.33 in
Body TypeStraight
Boot CodeC
BrandTwist-Lock Insulgrip, H.
Brand NameHubbell-Wiring
Cable Range0.350 - 1.150 in.
ColorBlack/White, Color, Bla.
Color - Plugs and Recep.Black/White
Color FamilyMulti
Color/FinishBlack, White
Conductor Size16-8 AWG
ConfigurationConfiguration
Connection OrientationStraight
Constructional FeatureConstructional Feature
Contact MaterialBrass
Cord dia35 in-1.15 in
Cord Size0.350 in to 1.150 in, C.
Corrosion ResistantNo
Country of OriginUS - United States
Country Of OriginUnited States of America
Country of Origin (subj.United States
Current Rating20 A
Current Stock97
Degree of ProtectionIP20
Dielectric StrengthWithstands 2000 Volt
Dimensions2.33 Inch Dia x 2.75 In.
Display TypeStandard Sized
ECCNEAR99
Energy Star FlagNo
Environmental ConditionsHB or Better Flammabili.
Face Diameter2.21 in
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
FinishNo
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.1.15 in
For Minimum Cable Diame.0.35 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
Gross Weight0.35 lbs
Ground TypeGround Type
GroundingGrounding, Grounded
GTIN00783585038599
Height2.75 in.
Horsepower Rating5 hp
Housing ColorBlack, White
Housing ColourBlack, White
Housing MaterialNylon
HP10.0, 5
International ShippingNo
IP Rating20, IP20
Isolated GroundNo
ItemItem, Locking Plug
Item - Plugs and Recept.Locking Plug
Item NameTwist-Lock Plug
Item NumberHBL2521
Lead TimeExpected to ship in 1-2.
Length2.33 in.
ManufacturerHubbell
Manufacturer NameHubbell-Wiring
Manufacturer Part NumberHBL2521
MarketIndustrial
MaterialMaterial, Nylon
Maximum Load Capacity5 hp
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size16 AWG
MpnHBL2521
NEMA ConfigurationNEMA L22-20P, L22-20P
NEMA Plug ConfigurationL22-20P
NEMA Plug Configuration.L22-20P
NEMA TypeL22-20
Net Weight0.35 lbs
No. of Poles4
No. of Wires5
Number of Blades5
Number of Poles4
Number of Wires5, 5.0000
Outside Diameter2.33 in
Overall Length2.33 in
Phase3, Three
PolarizedYes
Rated Voltage277/480V AC
Resistance PropertiesChemical Resistant, Imp.
RoHS FlagYes
SeriesInsulgrip Series
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
SKUZO-G2324944
Special FeaturesLocking
StandardCertified to CSA C22.2 .
StandardsFED SPEC UL/CSA, UL 498.
Sub BrandTwist-Lock?
SubCategoryElectrical
Temperature Rating-40 to 75 deg C
Terminal ConnectionPressure Screw Terminal
TerminationScrew
TypePlugs, Locking Plug, In.
UL 94 Flammability Rati.HB
UnspscUnspsc
UNSPSC39121402, 39121403
UPC783585038599, 783585038.
UPC Code783585038599
UPC IDUPC ID
Voltage3 Phase Y 277/480V AC, .
Voltage - Plugs and Rec.277/480V AC
Voltage Rating277/480V AC, 277 - 480Y.
WatertightNo
Width2.33 in.
Wire Connection TypeScrew Terminals
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesHBL252138.49138Hubbell Wiring Device-Kellems38.49 @ 1
thumbzoomsustainablesupply.comC120889541.711In StockHubbell0.3541.71 @ 1
Onlinecomponents.comHBL252141.917HUBBELL41.9 @ 1
AmazonTPB00DJUJ4BO41.951In Stock2HUBBELL WIRING DEVICES41.95 @ 1
thumbzoomZoroG232494442.341In StockHubbell0.3542.34 @ 1
thumbzoomCarlton Bates Company7835850385946.171In StockHUBBELL46.17 @ 1
LCOMP7835850385946.171In StockHubbell Wiring Device-Kellems46.17 @ 1
Sager ElectronicsHBL252147.75116Hubbell Wiring Device-Kellems47.75 @ 1
standardelectricsupply.com9406751.931In StockHubbell51.93 @ 1
thumbzoomMRO Supply102102451.931In StockHubbell Wiring51.93 @ 1
Monarch Electric6140452.991In StockHubbell-Wiring52.99 @ 1
thumbzoommecampbell.comHUBHBL252153.461In Stock54Hubbell Kellems53.46 @ 1
thumbzoomGalcoHBL2521-HBBL53.461In StockHubbell0.3553.46 @ 1
thumbzoomsimsupply.comZO-G232494454.6197Hubbell54.6 @ 1
steinerelectric.com2631160.131In StockHubbell Wiring Device-Kellems60.13 @ 1
thumbzoomUnited Electric2185164.221In StockWIRING DEVICE-KELLEMS64.22 @ 1
thumbzoomRadwellHBL252165.0110HUBBELL KELLEMS65.0 @ 1
Graybar8812636566.606411Hubbell Wiring Device - Kellems66.6064 @ 1
thumbzoombscsource.comHBL252172.491In StockHubbell Wiring Device-Kellems72.49 @ 1
grainger.caHBLHBL252180.034627621In StockHUBBELL WIRING DEVICE-KELLEMS0.3580.03462762 @ 1
us.rs-online.com7057482080.7715Hubbell Wiring Device-Kellems80.77 @ 1
thumbzoomNewark52F973183.61119HUBBELL WIRING DEVICES83.61 @ 1
thumbzoomNational Supply Network5403514286.081In StockHubbell Wiring Device-Kellems86.08 @ 1
kirbyrisk.com484775102.4616Hubbell102.46 @ 1
thumbzoomRaptor SuppliesAE7ZFE107.4443761In StockHUBBELL WIRING DEVICE-KELLEMS107.444376 @ 1
