Hubbell HBL2743SW

B007I9YQ7Y

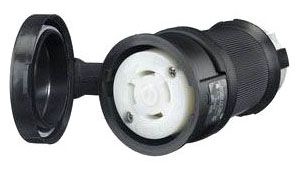

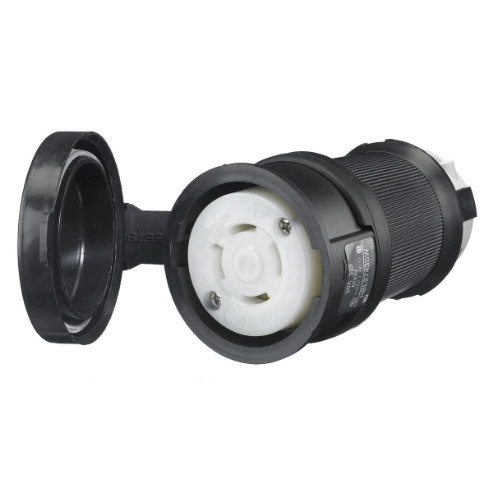

Connector, L17-30 NEMA

Connector, L17-30 NEMAzoom

Attributes

Key Value
Amperage30 A
Amperage Rating30A, 30
Amps30
Amps - Plugs and Recept.30
AntimicrobialNo
ApplicationHeavy Duty Industrial
ApprovalsCSA, UL
AWG Range#16 AWG to #8 AWG
Body TypeStraight
BrandTwist-Lock, Hubbell, Hu.
Cable range0.350 - 1.150 in
Cable Range0.350 - 1.150 in.
Cap TypePress-On Cap
Catalog NumberHBL2743SW
ColorBlack/White, Black, Bla.
Color - Plugs and Recep.Black/White
Color FamilyMulti
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Contact MaterialBrass
Cord range0.350 in-1.150 in (9-29)
Cord Size0.350 in to 1.150 in
Corrosion ResistantNo
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.30 A
Current Rating30 A
Current rating30 A
Current Stock9
Dielectric strengthWithstands 2,000V minim.
Dimensions2.75 in x 2.75 in x 4.4.
Display sizeStandard
Display TypeStandard
ECCNEAR99
Environmental conditionsWatertight
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
For Maximum Cable Diame.1.15 in
For Minimum Cable Diame.0.35 in
GradeIndustrial, Industrial/.
Grade - Plugs and Recep.Industrial
Gross Weight0.65 lbs
GroundingGrounded
GTIN00783585232027
Height4.4 in., 4.40 in
Horsepower Rating10 hp
Housing ColorBlack, White
Housing ColourBlack, White
Housing MaterialValox
HP10.0
Industry Standard(s)UL Listed, CSA Certifie.
InsulationInsulated Body
Insulation MaterialThermoplastic
International ShippingNo
IP RatingIP66
Isolated GroundNo
ItemWatertight Locking Conn.
Item - Plugs and Recept.Watertight Locking Conn.
Item NumberHBL2743SW
Item type30A Watertight Safety-S.
Lead TimeExpected to ship in 1-2.
Length2.75 in., 2.75 in
ManufacturerHubbell wiring device-k.
Manufacturer Part NumberHBL2743SW
MarketIndustrial
MaterialComposite, Impact Modif.
Material - mounting har.Cord Mounted
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size8 AWG
Midget LockingNo
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size16 AWG
MountingCord
MpnHBL2743SW
NEMA ConfigurationL17-30R, L17-30
NEMA Enclosure Rating12, 4, 4X
NEMA Plug Configuration.L17-30R
Nema RatingL17-30R
NEMA Rating12, 4, 4X
NEMA Receptacle Configu.L17-30R
Net Weight0 lbs
No. of Poles3
No. of Wires4
Number of poles3-Pole
Number of Poles3
Number of Wires4
Number of wires4-Wire
OEM brand nameHubbell wiring device-k.
Operating temperatureMaximum continuous 75C .
Outside Diameter2.75 in
Overall Length2.75 in
Phase3, Three, Three phase
Power Indicating LightNo
Power IndicatorNo
Primary TypeTwist Lock
Rated Voltage600V
Resistance PropertiesImpact Resistant, Moist.
SeriesWatertight Safety-Shrou.
ShroudedYes
Shrouded / Non-ShroudedShrouded
SKUZO-G3134905
Special FeaturesLocking
StandardUL Listed, CSA Certifie.
StandardsCSA Certified Type 4, 4.
SubCategoryElectrical
TerminationScrew
TypeLocking Socket, Connect.
UL 94 Flammability Rati.V-0
UNSPSC39121421
UPC783585232027
UPC Code783585232027
Voltage600VAC, 600 V
Voltage - Plugs and Rec.600V AC
Voltage Rating600V AC, 600
Voltage rating descript.600 V
WatertightYes
Width2.75 in.
Width (in)2.75
Wire Connection TypeScrew Terminals
Wire size#16 AWG to #8 AWG
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL2743SW95.8113HUBBELL95.81 @ 1
thumbzoomsustainablesupply.comC1198946140.321In StockHubbell0.9140.32 @ 1
VericalHBL2743SW150.6112Hubbell Wiring Device-Kellems150.61 @ 1
thumbzoomgordonelectricsupply.comHBL2743SW158.051In StockHUBBELL158.05 @ 1
standardelectricsupply.com2315843161.431In StockHubbell161.43 @ 1
thumbzoomMRO Supply1021493161.431In StockHubbell Wiring161.43 @ 1
thumbzoomGalcoHBL2743SW-HBBL166.181In StockHubbell0.65166.18 @ 1
thumbzoomZoroG3134905171.891In StockHubbell0.9171.89 @ 1
cbtcompany.comHBL2743SW176.531In StockHubbell Wiring Device-Kellems176.53 @ 1
thumbzoomRadwellHBL2743SW191.3911HUBBELL KELLEMS191.39 @ 1
thumbzoomsimsupply.comZO-G3134905191.819Hubbell191.8 @ 1
thumbzoombscsource.comHBL2743SW195.791In StockHubbell Wiring Device-Kellems195.79 @ 1
Graybar95025243201.94721In StockHubbell Wiring Device - Kellems201.9472 @ 1
steinerelectric.com381142205.641In StockHubbell Wiring Device-Kellems205.64 @ 1
Newark35B604211.121In StockHUBBELL WIRING DEVICES211.12 @ 1
thumbzoomcrescentelectric.com244514213.361In StockHubbell Wiring Device - Kellems213.36 @ 1
grainger.caHBLHBL2743SW228.244212821In StockHUBBELL WIRING DEVICE-KELLEMS0.88228.24421282 @ 1
us.rs-online.com70428373231.0913Hubbell Wiring Device-Kellems231.09 @ 1
thumbzoomNational Supply Network73123150232.021In StockHubbell Wiring Device-Kellems232.02 @ 1
kirbyrisk.com488719279.861In StockHubbell279.86 @ 1
thumbzoomRaptor SuppliesAD6ZUF312.4557541In StockHUBBELL WIRING DEVICE-KELLEMS312.455754 @ 1
