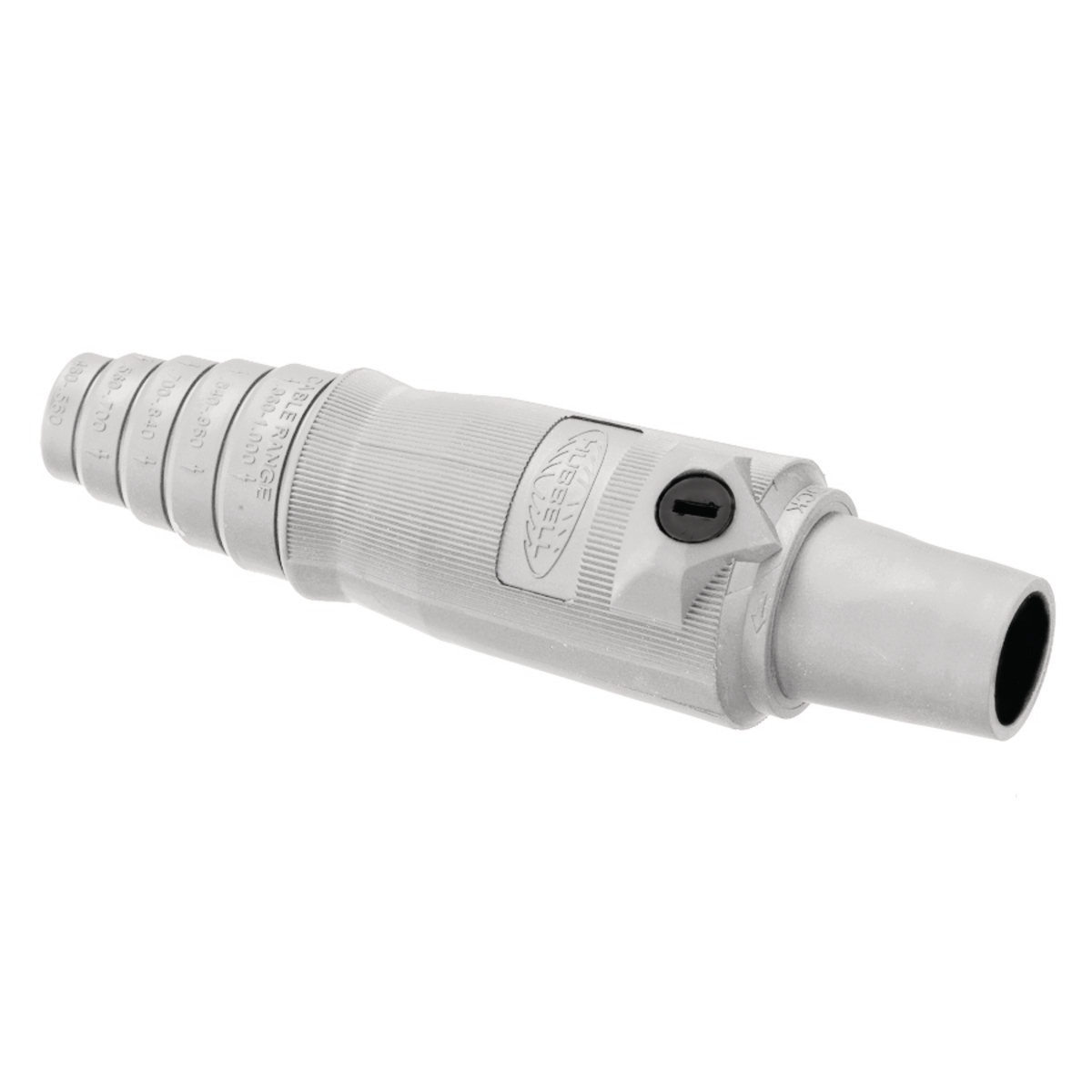

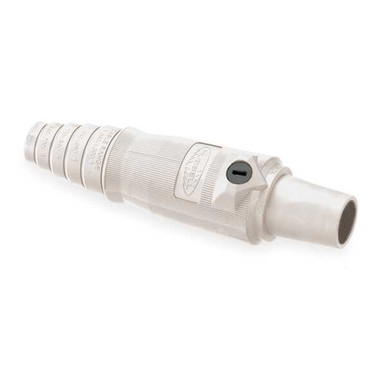

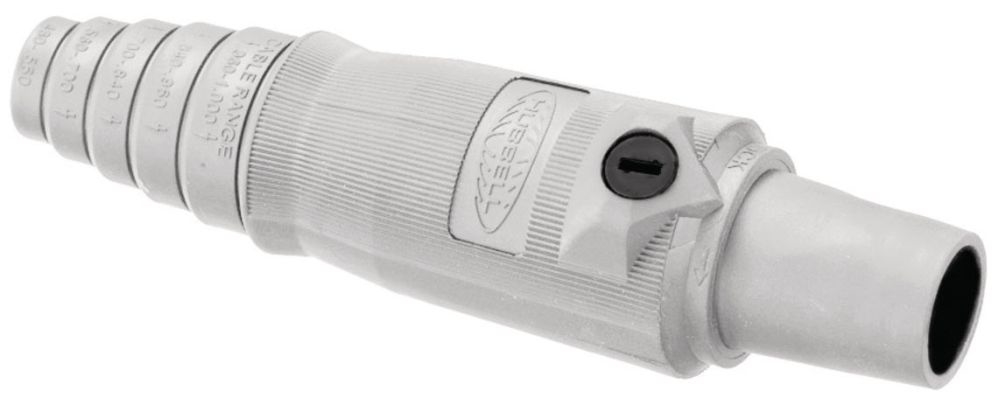

Hubbell Wiring Device-Kellems HBL400FW

B005T687KU

Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 400A 250V DC/600V AC, Single Conductor, Double Set Screws, White

Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 400A 250V DC/600V AC, Single Conductor, Double Set Screws, Whitezoom

Attributes

Key Value
Amperage400 A
Amps AC/DC400AC/DC
ApprovalscUL, UL
BrandHubbell
Cable Attachment MethodDouble Set Screw
Cable Gauge2/0 to 4/0 AWG
Cable Range2/0 to 4/0
Cable Size2/0-4/0
Cable Size (AWG)00 AWG, 000 AWG, 0000 A.
ColorWhite
Color FamilyWhite
Compatible with Series16
Conductor MaterialBrass
Connection DescriptionFemale
Connector ColorWhite
Contact MaterialBrass
Contact TypeSingle Cam
Country of OriginCN - China
Country of Origin (subj.China
Current / amperage rati.400 A
Current Rating400 A
Current Stock97
Device TypeFemale Connector
ECCNEAR99
End TypeTaper Nose
Family SeriesHubbell Connectors, 16 .
GenderFemale
Gross Weight0.765 lbs
Housing ColorWhite
Housing MaterialThermoplastic Elastomer
Insulator MaterialThermoplastic Elastomer.
International ShippingNo
ItemConnector
Item NumberHBL400FW
Lead TimeExpected to ship in 1-2.
Male/FemaleFemale
ManufacturerHubbell
Manufacturer Part NumberHBL400FW
MaterialThermoplastic Elastomer
Maximum Wire Size4/0 AWG
Minimum Wire Size2/0 AWG
MpnHBL400FW
NEMA Enclosure Rating12, 3R, 4X
NEMA Rating12K, 3R, 4X
Net Weight0.2 lbs
Overall Length7.1 in
Overall Width1.95 in
Product Series16
Product TypeConnector
Series16
Single Pole Device StyleTaper Nose
SKUZO-G2089473
StandardNational Electric Code .
StandardsUL/cUL
StyleFemale
SubCategoryElectrical
Terminal ConnectionDouble Set Screw
Terminal Connection TypeDouble Set Screw
TypePlugs
UL 94 Flammability Rati.HB
UNSPSC39121402
UPC783585112244
UPC Code783585112244
Voltage600 VAC
Voltage Rating600V AC/250V DC
Voltage rating descript.600V AC/DC
Wire Size Range2/0 AWG - 4/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL400FW34.6616HUBBELL34.66 @ 1
AmazonSCB005T687KU42.91In StockHubbell Wiring Device-Kellems42.9 @ 1
AmazonTPB005T687KU44.561In Stock2Hubbell Wiring Device-Kellems44.56 @ 1
standardelectricsupply.com229272546.711In StockHubbell46.71 @ 1
thumbzoomMRO Supply102238446.711In StockHubbell Wiring46.71 @ 1
thumbzoomgordonelectricsupply.comHBL400FW47.421In StockHUBBELL47.42 @ 1
thumbzoomZoroG208947348.991In StockHubbell0.848.99 @ 1
cbtcompany.comHBL400FW51.081In StockHubbell Wiring Device-Kellems51.08 @ 1
thumbzoomNewark46M316352.01In StockHUBBELL WIRING DEVICES52.0 @ 1
thumbzoomGalcoHBL400FW-HBBL52.321In StockHubbell0.76552.32 @ 1
thumbzoomturtle.comHUB HBL400FW54.141In StockHubbell54.14 @ 1
VericalHBL400FW55.9812Hubbell Wiring Device-Kellems55.98 @ 1
Graybar2504587058.441616Hubbell Wiring Device - Kellems58.4416 @ 1
thumbzoomsimsupply.comZO-G208947359.76197Hubbell59.76 @ 1
us.rs-online.com7057500962.3711Hubbell Wiring Device-Kellems62.37 @ 1
thumbzoomRaptor SuppliesAC3WZT93.2987251In StockHUBBELL WIRING DEVICE-KELLEMS93.298725 @ 1
kirbyrisk.com2081659115.431In StockHubbell115.43 @ 1
