Hubbell HBL4200PS2W

B00NGPR0EA

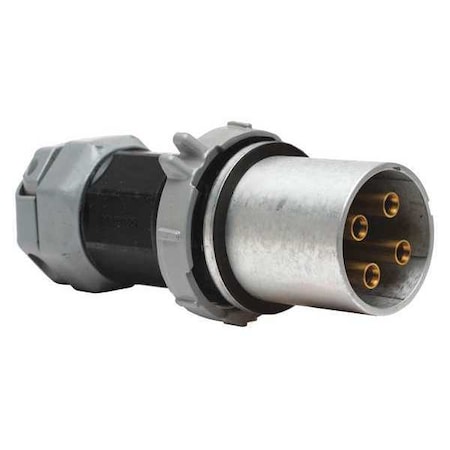

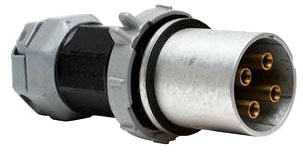

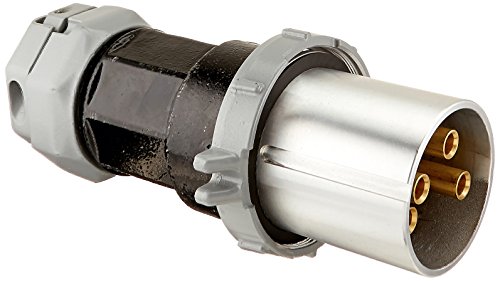

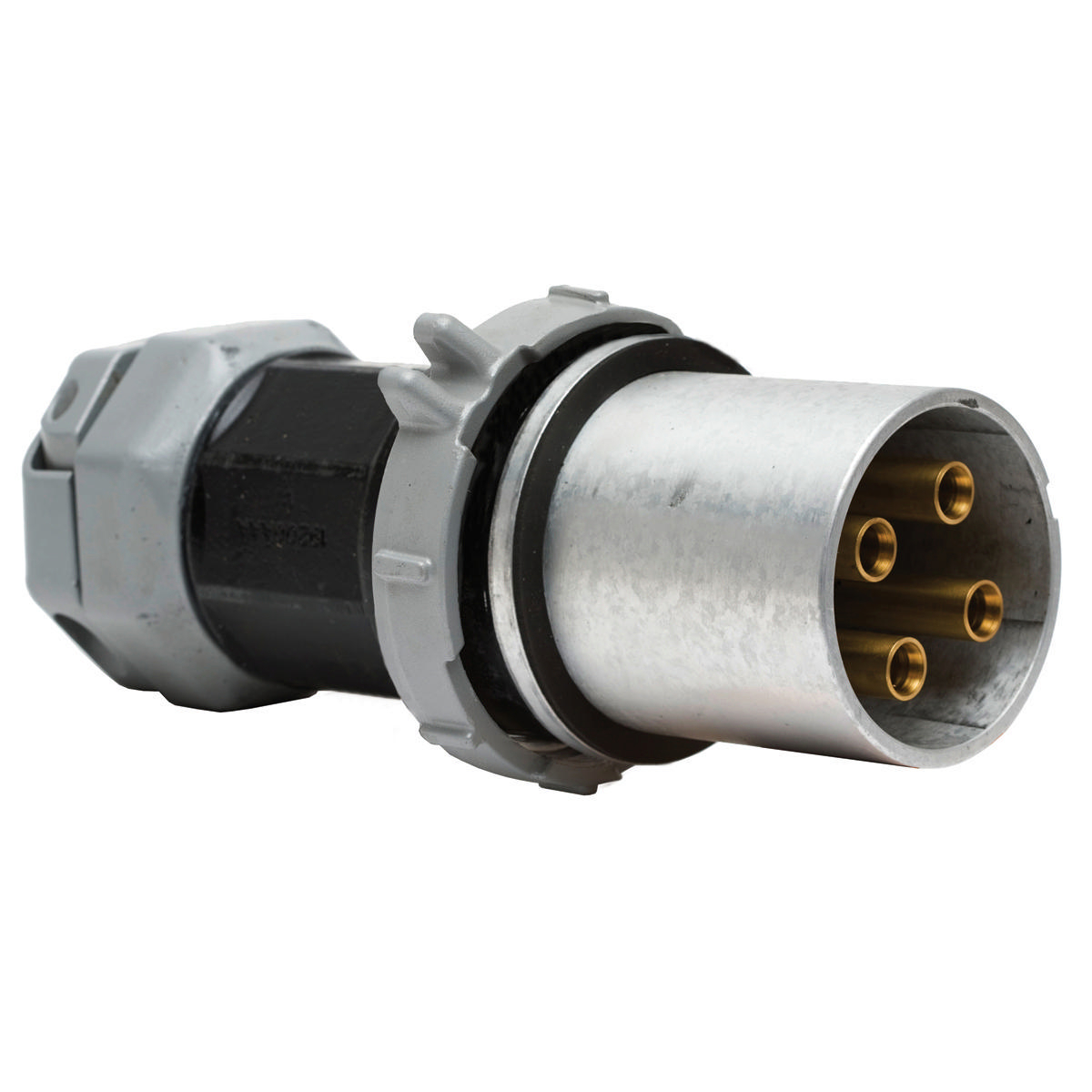

Hubbell HBL4200PS2W Pin and Sleeve Insulgrip Plug, 3 Pole, 4 Wire, 200 amp, 600V, S2

Hubbell HBL4200PS2W Pin and Sleeve Insulgrip Plug, 3 Pole, 4 Wire, 200 amp, 600V, S2zoom

Attributes

Key Value
Amperage20A
Amperage Rating200, 200A
ApplicationMetallic with Nylon Shr.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
AWG Range#1 AWG to #250MCM
Built-In Strain ReliefYes
Cap TypeNo Cap or Cover
Case MaterialNon-Metallic
ColorBlack/Gray
Color FamilyGray
Connection DescriptionWater Resistant
Connection OrientationStraight
Country of OriginUS - United States
Country of Origin (subj.United States
Current Rating200 A
Dimensions6.7 in Dia x 11.13 in L
Display TypeStandard Sized
ECCNEAR99
Family SeriesHubbell Plugs & Recepta.
For Maximum Cable Diame.2.5 in
For Minimum Cable Diame.1 in
Frequency Rating50/400
Gross Weight11.435 lbs
GroundingGrounded
Grounding Style2
Housing ColorBlack, Gray
Housing MaterialNon-Metallic
HP1
IP RatingNot Rated
ItemPin and Sleeve Plug
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL4200PS2W
Lockout-TagoutNo
ManufacturerHubbell
Manufacturer Part NumberHBL4200PS2W
MarketIndustrial
MaterialComposite
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size250 kcmil
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size1 AWG
NEMA Enclosure Rating4X
NEMA RatingNEMA 4X
Net Weight10.51 lbs
No. of Poles3
No. of Wires4
Number of Poles3
Number of Wires4
Outside Diameter6.7 in
Overall Length11.13 in
Pin & Sleeve StandardsUL 1682
Power Indicating LightNo
Product SeriesInsulgrip
Rated Voltage600V ac/250V dc
Resistance PropertiesImpact Resistant, Moist.
Reverse ServiceNo
ShroudedYes
StandardCSA Certified to CSA Sp.
StyleStandard Service,Style .
Switch RatedNo
Temperature Range (F)-40-167 ?F
Temperature Rating (Deg.-40
Terminal TypeScrew, Pressure Screw
TypeWatertight Plug, Type 2.
UL 94 Flammability Rati.V-0
UNSPSC39121402
UPC Code783585011486
Voltage125V, 600 V
Voltage Color CodeBlack, Gray
Voltage Rating250V DC, 600V AC, 600 V.
Wire Connection TypeScrew Terminals
Wire Size1 AWG, 1/0 AWG, 2/0 AWG.
Wire Size Range1 AWG-250 MCM

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG05753861026.251In Stock11Hubbell12.01026.25 @ 1
thumbzoomKelly HayesHBL4200PS2W1183.5316Hubbell Wiring Device-Kellems1183.53 @ 1
thumbzoomMRO Supply10225891257.51In StockHubbell Wiring1257.5 @ 1
thumbzoomgordonelectricsupply.comHBL4200PS2W1402.151In StockHUBBELL1402.15 @ 1
thumbzoomstandardelectricsupply.com1459271437.141In StockHubbell1437.14 @ 1
thumbzoomGalcoHBL4200PS2W-HBBL1479.411In StockHubbell11.4351479.41 @ 1
thumbzoomcbtcompany.comHBL4200PS2W1571.571In StockHubbell Wiring Device-Kellems1571.57 @ 1
us.rs-online.com711214081589.4812Hubbell Wiring Device-Kellems1589.48 @ 1
Newark14C53311589.481In StockHUBBELL WIRING DEVICES1589.48 @ 1
Graybar982905641770.54081In StockHubbell Wiring Device - Kellems1770.5408 @ 1
steinerelectric.com914301790.291In StockHubbell Wiring Device-Kellems1790.29 @ 1
kirbyrisk.com4982291815.571In StockHubbell1815.57 @ 1
