Hubbell HBL5100C6WP

B0CQ3RGFD4

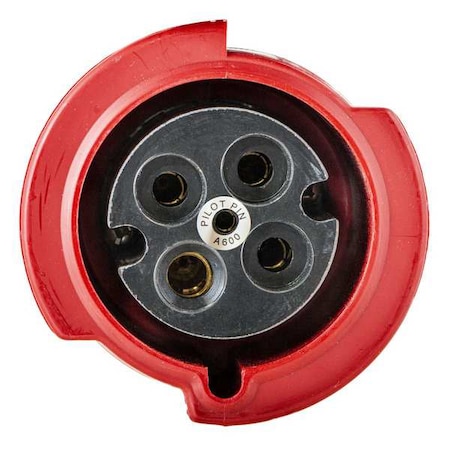

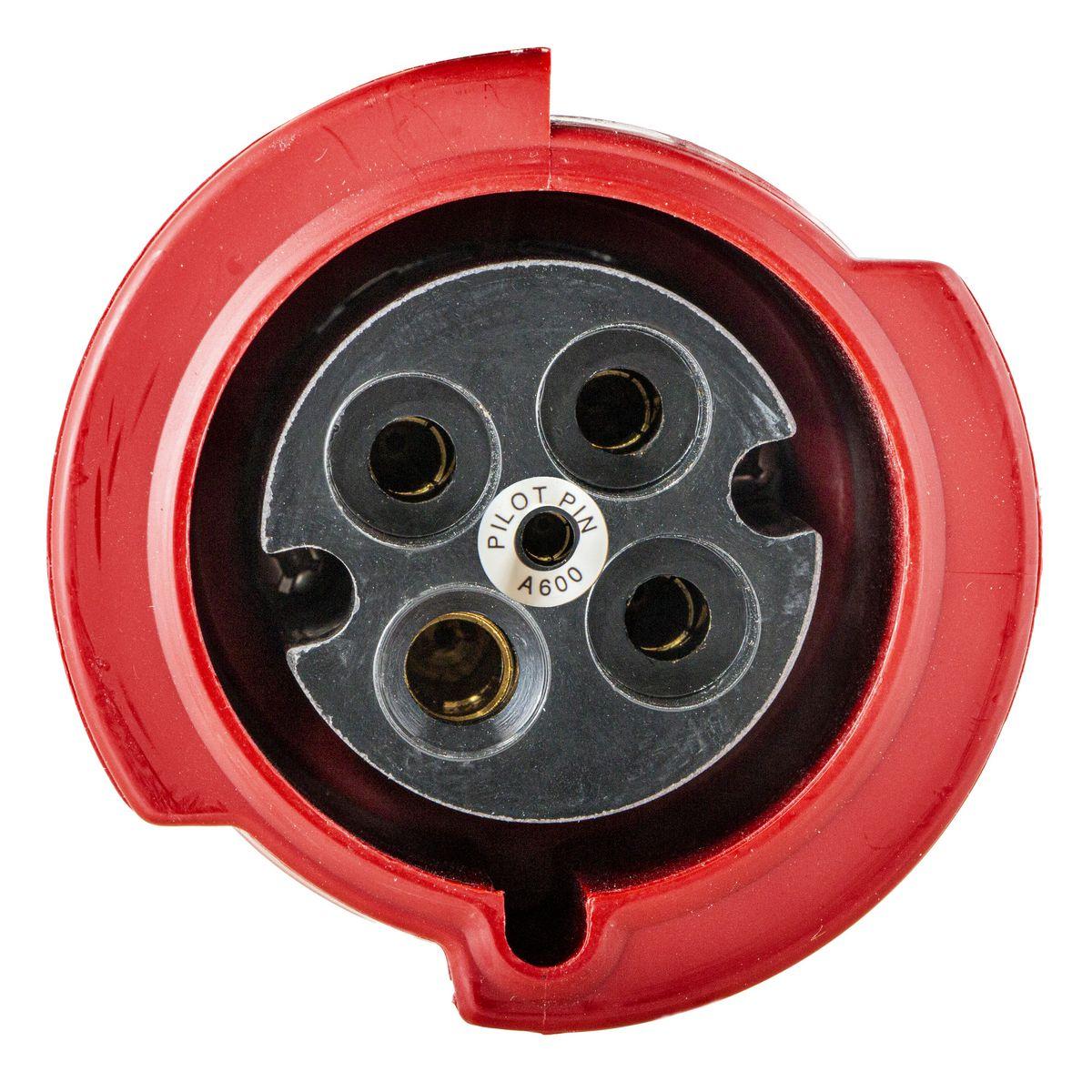

Hubbell - Hbl5100c6wp - Hubbell Heavy Duty Products Iec Pin And Sleeve Devices Industrial Grade Female Connector W/ Pilot Sleeve 100/125a 200/346-240/415v; 220/380-240/415v 4-pole 5-wire Grounding

Hubbell - Hbl5100c6wp - Hubbell Heavy Duty Products Iec Pin And Sleeve Devices Industrial Grade Female Connector W/ Pilot Sleeve 100/125a 200/346-240/415v; 220/380-240/415v 4-pole 5-wire Groundingzoom

Attributes

Key Value
Amps125
Amps - Plugs and Recept.125
Body MaterialZytel 801 Nylon
Body Material - Pin and.Zytel 801 Nylon
Cap TypeSpring-Loaded Cap
ColorRed
Color - Plugs and Recep.Red
Compatible with SeriesHBL Heavy Duty
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Cord typeAll Portable
Country of Origin (subj.United States
Current Rating100/125 A
Dielectric strengthWithstands 3000V Minimu.
Environmental conditionsWatertight
EU RoHS indicatorContact Manufacturer
Family SeriesHubbell Miscellaneous
FeaturesAbuse Resistant
For Maximum Cable Diame.1.94 in
For Minimum Cable Diame.1.065 in
Gross Weight0 lbs
GroundingGrounded
Grounding StyleIEC
Horsepower Rating30 hp
Housing ColorRed
Housing MaterialPBT
Housing Material GradeZytel 801
Housing Material TypeNon-Metallic
HP-
InsulationInsulated Body
IP RatingIP68, IP69K
ItemWatertight Pin and Slee.
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL5100C6WP
ManufacturerHubbell
Manufacturer Part NumberHBL5100C6WP
MarketIndustrial
MaterialThermoplastic
Material - mounting har.Cord Mounted
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size1/0 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size3 AWG
NEMA Enclosure Rating4X
Nema RatingNon-NEMA
Net Weight0 lbs
Number of conductors5-Wire Grounding
Number of poles4-Pole
Number of Poles4
Number of Wires5
Number of wires5-Wire
Outside Diameter5.06 in
Overall Length13.14 in
Phase3Y, Multi Phase
Phase - Electrical3Y
Pin & Sleeve StandardsIEC 60309
Power Indicating LightNo
Resistance PropertiesCorrosion Resistant, Im.
Reverse ServiceNo
ShroudedYes
StandardsCSA Certified, IEC 6030.
StyleStandard Service
Switch RatedNo
Temperature rating-40 C w/o impact, -25 w.
TypeConnector w/ Pilot Slee.
UL 94 Flammability Rati.V-0
Voltage240/415VAC
Voltage - Plugs and Rec.240/415V AC
Voltage Rating200/346 to 240/415V, 22.
Voltage rating descript.200/346-240/415 VAC
Wire Connection TypeScrew Terminals
Wire size#3 AWG to #1/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0830611772.811In StockHubbell5.0772.81 @ 1
thumbzoomMRO Supply5018274849.331In StockHubbell Wiring849.33 @ 1
thumbzoomgordonelectricsupply.comHBL5100C6WP887.41In StockHUBBELL887.4 @ 1
thumbzoomstandardelectricsupply.com2369724910.01In StockHubbell910.0 @ 1
us.rs-online.com73429912910.01In StockHubbell Wiring Device-Kellems910.0 @ 1
thumbzoomGalcoHBL5100C6WP-HBBL936.761In StockHubbell936.76 @ 1
thumbzoomturtle.comHUB HBL5100C6WP1054.71In StockHubbell1054.7 @ 1
Newark07AH53891089.271In StockHUBBELL WIRING DEVICES1089.27 @ 1
