Hubbell HBL9337C

B00GQQFM50

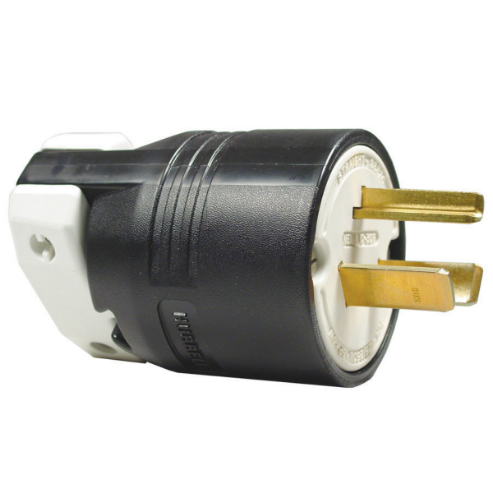

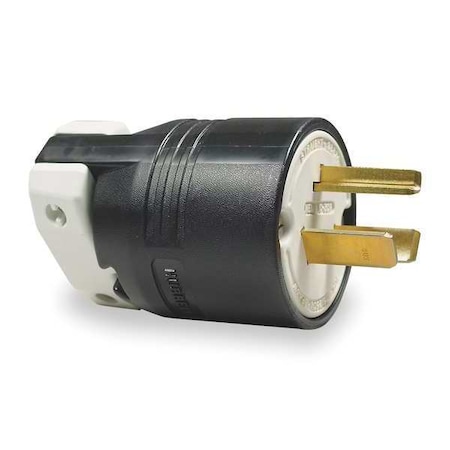

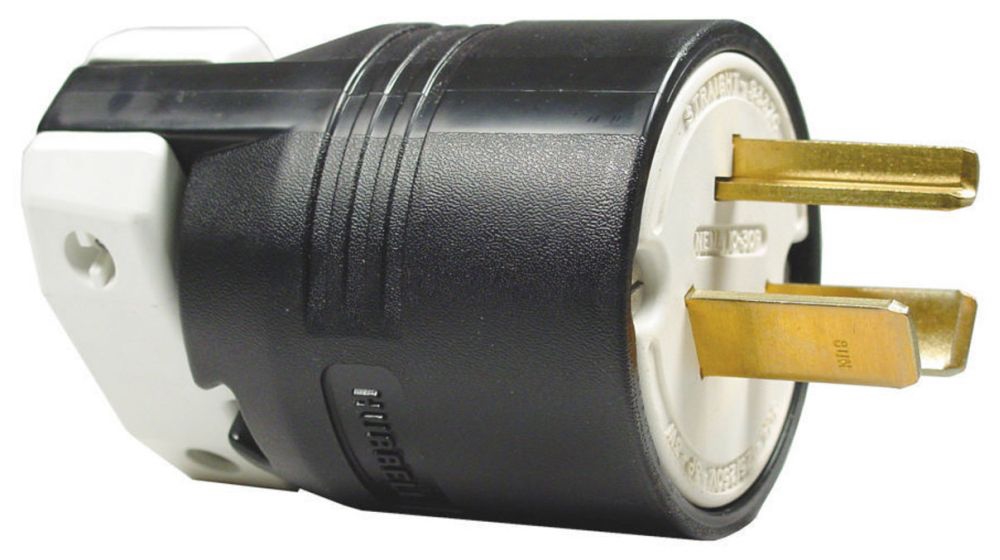

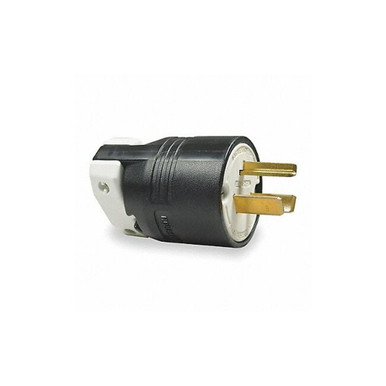

Hubbell HBL9337C Connector Power

Hubbell HBL9337C Connector Powerzoom

Attributes

Key Value
Amperage30A
Amperage Rating30A
Amps30
Amps - Plugs and Recept.30
AntimicrobialNo
ApprovalsCSA, UL
Body Length4.13 in
Body TypeStraight
Boot CodeB
BrandHubbell
ColorBlack/White, Black, Bla.
Color - Plugs and Recep.Black/White
Color FamilyBlack
CommentsIndustrial/Commercial
Connection OrientationStraight
Cord dia625 in-1.00 in
Cord Size0.625 in to 1.000 in
Corrosion ResistantYes, No
Country of OriginUS - United States
Country of Origin (subj.United States
Current Rating15 A, 30 A
ECCNEAR99
Family SeriesHubbell Plugs & Recepta.
For Maximum Cable Diame.1 in
For Minimum Cable Diame.0.625 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
Gross Weight0.8 lbs
GroundingNon-Grounded
Horsepower Rating2 hp
Housing ColorBlack
Housing ColourBlack
Housing MaterialNylon
HP2.0 Line to Line, 2.0 L.
IlluminatedNo
Insulation MaterialNylon
International ShippingNo
IP Rating20, IP20
ItemStraight Blade Plug
Item - Plugs and Recept.Straight Blade Plug
Item NumberHBL9337C
Lead TimeExpected to ship in 1-2.
ManufacturerHubbell
Manufacturer Part NumberHBL9337C
MarketCommercial, Industrial
MaterialNylon
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size4 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size12 AWG
MpnHBL9337C
NEMA Configuration10-30P, 5-15R
NEMA Plug Configuration10-30P
NEMA Plug Configuration.10-30P
Net Weight0 lbs
No. of Poles3
No. of Wires3
Number of Blades3
Number of Poles3, 2
Number of Wires3
Phase1, 3, Single
Phase - Plugs and Recep.3
PolarizedYes
Resistance PropertiesCorrosion resistant
SKUZO-G1811144
Special FeaturesCorrosion resistant
StandardsUL/CSA
SubCategoryElectrical
UL 94 Flammability Rati.HB
UNSPSC39121402
UPC783585015699
Voltage125V/250V, 125/250VAC, .
Voltage - Plugs and Rec.125/250V AC
Voltage Rating125/250V AC
WatertightNo
Weather ResistantNo
Wire Connection TypeScrew Terminals
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL9337C43.3915HUBBELL43.39 @ 1
AmazonTPB000TKFHYU52.471In Stock2Hubbell52.47 @ 1
thumbzoomZoroG181114459.651In StockHubbell0.459.65 @ 1
thumbzoomgordonelectricsupply.comHBL9337C61.481In StockHUBBELL61.48 @ 1
standardelectricsupply.com226037461.791In StockHubbell61.79 @ 1
thumbzoomMRO Supply102608061.791In StockHubbell Wiring61.79 @ 1
thumbzoomGalcoHBL9337C-HBBL63.61In StockHubbell0.863.6 @ 1
us.rs-online.com7198746967.481In StockHubbell Wiring Device-Kellems67.48 @ 1
steinerelectric.com2621671.481In StockHubbell71.48 @ 1
thumbzoomsustainablesupply.comC120744473.881In StockHubbell0.473.88 @ 1
thumbzoomsimsupply.comZO-G181114474.021In StockHubbell74.02 @ 1
Graybar9007788277.29121In StockHubbell Wiring Device - Kellems77.2912 @ 1
thumbzoombscsource.comHBL9337C78.991In StockHubbell Wiring Device-Kellems78.99 @ 1
Newark35B91185.211In StockHUBBELL WIRING DEVICES85.21 @ 1
grainger.caHBLHBL9337C96.503165761In StockHUBBELL WIRING DEVICE-KELLEMS0.496.50316576 @ 1
thumbzoomNational Supply Network5403360098.871In StockHubbell Wiring Device-Kellems98.87 @ 1
thumbzoomRaptor SuppliesAE7LFU106.80748651In StockHUBBELL WIRING DEVICE-KELLEMS106.8074865 @ 1
kirbyrisk.com488350128.121In StockHubbell128.12 @ 1
