Hubbell HBL9977C

B002QMOJ70

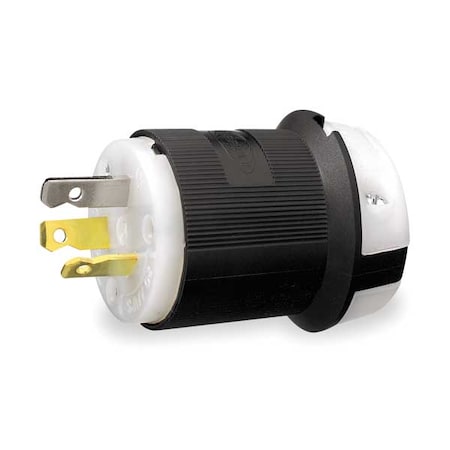

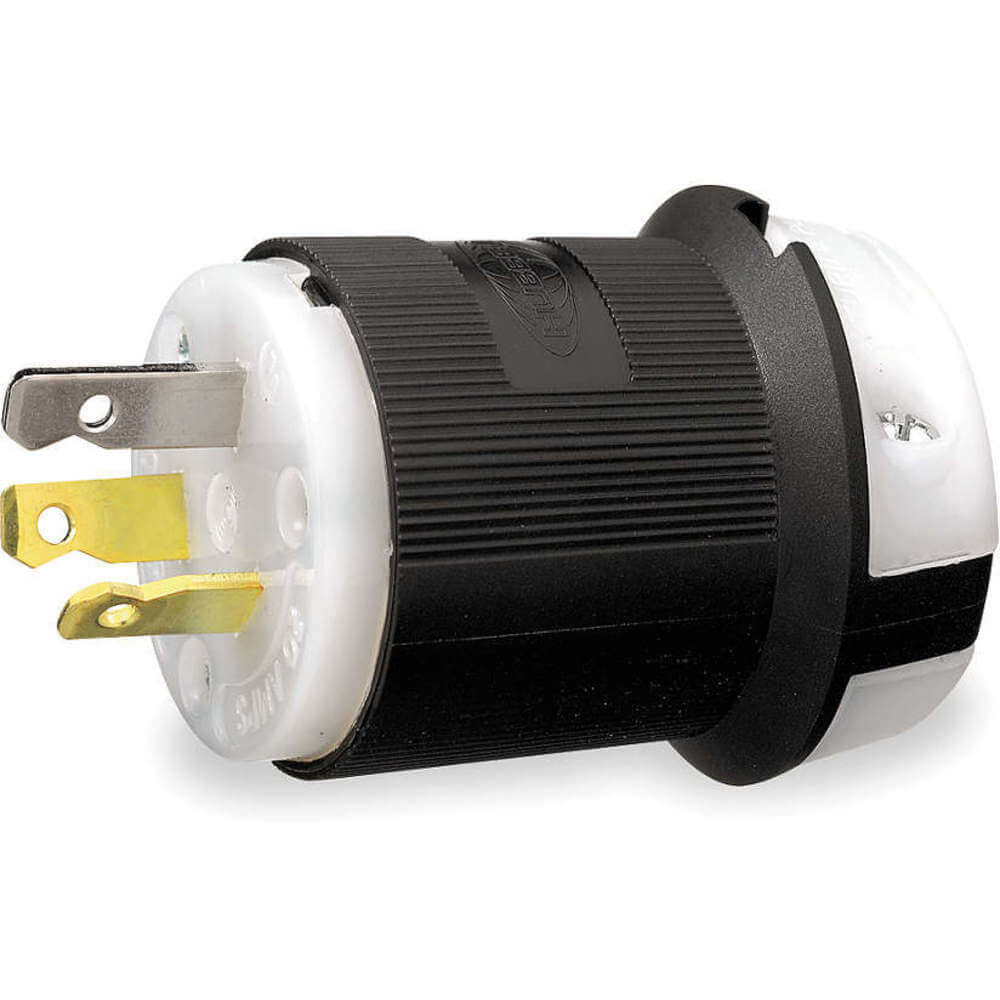

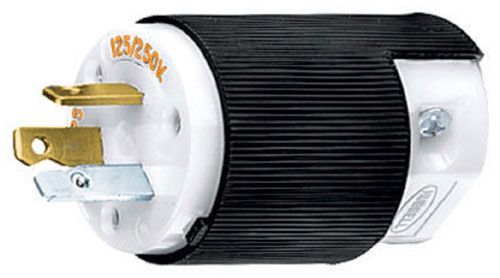

Hubbell HBL9977C Plug, 20 amp, 125/250V, 3 Pole, 3 Wire, 10-20P

Hubbell HBL9977C Plug, 20 amp, 125/250V, 3 Pole, 3 Wire, 10-20Pzoom

Attributes

Key Value
Agency ApprovalsUL ; CSA
Amperage20A
Amperage Rating20A
Amps20
Amps - Plugs and Recept.20
AntimicrobialNo
ApprovalsCSA, UL
Assembly ScrewsNickel plated steel
Blade HolderNylon
Blades.060 in. (1.5) Brass
Body Length2.5 in
Body TypeStraight
Boot CodeA
ColorBlack/White, Black, Bla.
Color - Plugs and Recep.Black/White
Color FamilyMulti
CommentsIndustrial/Commercial
Connection OrientationStraight
Contact MaterialBrass
Contact TypePin
Cord Accommodation.385"-.780"(9.8-19.8)
Cord dia385 in-0.780 in
Cord Diameter.385"-.780"(9.8-19.8), .
Cord Size0.385 in to 0.780 in
Corrosion ResistantYes, No
Country of OriginUS - United States
Country of Origin (subj.United States
Current InterruptingCertified for current i.
Current Rating15 A, 20 A
DescriptionBlack and white nylon
Dielectric VoltageWithstands 2,000V minim.
ECCNEAR99
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
FlammabilityUL 94 V-2 or better
For Maximum Cable Diame.0.78 in
For Minimum Cable Diame.0.385 in
GradeIndustrial
Grade - Plugs and Recep.Industrial
Gross Weight0.3 lbs
GroundingNon-Grounded
Horsepower Rating1 hp, 2 hp
Housing ColorBlack
Housing ColourBlack
Housing MaterialNylon
Housing/Cord ClampNylon
HP2, 1.0 Line to Neutral,.
IlluminatedNo
Insulation MaterialNylon
IP Rating20, IP20
ItemStraight Blade Plug
Item - Plugs and Recept.Straight Blade Plug
Item NumberHBL9977C
ManufacturerHubbell
Manufacturer Part NumberHBL9977C
MarketIndustrial
MaterialNylon
NEMA Configuration10-20P, 5-15R
NEMA Plug Configuration10-20P
NEMA Plug Configuration.10-20P
Net Weight0 lbs
No. of Poles3
No. of Wires3
Number of Blades3
Number of Contacts3
Number of Poles3, 2
Number of Wires3
Operating TemperatureMaximum continuous 75?C.
Outside Diameter1.94 in
Phase1, 3, Single
Phase - Plugs and Recep.3
PolarizedYes
Primary TypeStraight Blade
Product HeaderInsulgrip Series Straig.
Resistance PropertiesCorrosion resistant
SeriesInsulgrip Series
Special FeaturesCorrosion resistant
StandardsUL Listed to UL498 File.
Terminal Accommodation#18-10 AWG. Standed cop.
Terminal ClampNickel plated steel
Terminal IdentificationTerminals identified in.
Terminal RetainerClear Polycarbonate
Terminal ScrewsBrass
TerminationScrew
TypeLocking Plug
UNSPSC39121402
UPC Code783585013121
Voltage125V/250V, 125/250VAC, .
Voltage - Plugs and Rec.125/250V AC
Voltage Rating125 ; 250 V, 125/250V AC
WatertightNo
Weather ResistantNo
Wire Connection TypeScrew Terminals
Wire Size#14-#10
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesHBL9977C27.06133Hubbell Wiring Device-Kellems27.06 @ 1
Onlinecomponents.comHBL9977C27.711In StockHubbell27.71 @ 1
thumbzoomZoroG054583333.971In StockHubbell0.333.97 @ 1
thumbzoomgordonelectricsupply.comHBL9977C36.331In StockHUBBELL36.33 @ 1
standardelectricsupply.com212226136.51In StockHubbell36.5 @ 1
thumbzoomMRO Supply102614836.51In StockHubbell Wiring36.5 @ 1
thumbzoomGalcoHBL9977C-HBBL37.571In StockHubbell0.337.57 @ 1
steinerelectric.com2614442.191In StockHubbell42.19 @ 1
thumbzoomRadwellHBL9977C44.018HUBBELL KELLEMS44.0 @ 1
thumbzoomsustainablesupply.comC120744348.781In StockHubbell0.348.78 @ 1
Graybar8812801949.19041In StockHubbell Wiring Device - Kellems49.1904 @ 1
thumbzoommayerelectric.comHUBHBL9977C49.351In StockHUBBELL WIRING DEVICES49.35 @ 1
grainger.caHBLHBL9977C57.832222081In StockHUBBELL WIRING DEVICE-KELLEMS0.357.83222208 @ 1
thumbzoomNewark35B92862.351In StockHUBBELL WIRING DEVICES62.35 @ 1
us.rs-online.com7011646462.7114Hubbell Wiring Device-Kellems62.71 @ 1
thumbzoomRaptor SuppliesAE7LFT73.80096751In StockHUBBELL WIRING DEVICE-KELLEMS73.8009675 @ 1
kirbyrisk.com48697974.951In StockHubbell74.95 @ 1
