CAI - HUBBELL WIRING DEVICE-KELLEMS HBLFRR

B07J2WVQBR

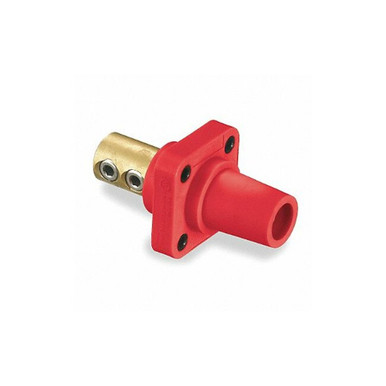

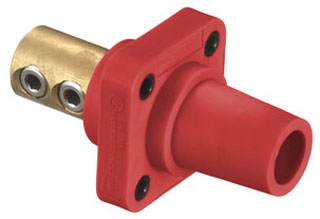

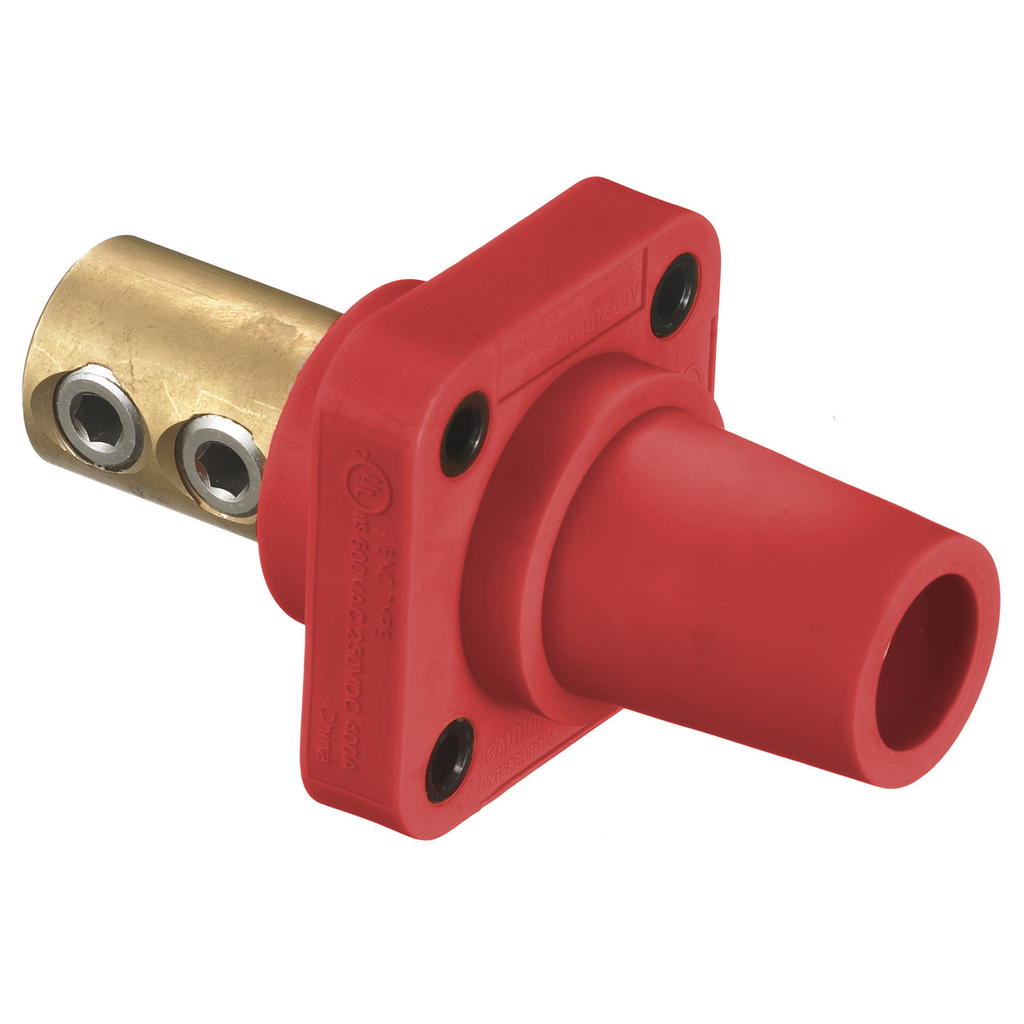

Hubbell Wiring Device-KELLEMS 3R, 4X, 12K Taper Nose Receptacle, Female, Red

Hubbell Wiring Device-KELLEMS 3R, 4X, 12K Taper Nose Receptacle, Female, Redzoom

Attributes

Key Value
Amperage400 A
Amperage Rating400 A, 400A
Amps AC/DC400AC/DC
ApplicationHigh Ampacity Connectio.
ApprovalscUL, NEC, UL
AWG Range#4 AWG to #4/0 AWG
BrandHubbell
Cable Attachment MethodDouble Set Screw
Cable Gauge4 to 4/0 AWG
Cable Range4 to 4/0
Cable Size#4-4/0
Cable Size (AWG)4 AWG, 3 AWG, 2 AWG, 1 .
Carton Quantity25 EA
ColorRed
Color FamilyRed
Compatible with Series16
Conductor MaterialBrass
Connection DescriptionFemale
Connection OrientationStraight
ConnectivityDouble Set Screw
Connector ColorRed
Contact MaterialBrass
Country of OriginCN - China
Country of Origin (subj.China
Current / amperage rati.400 A
Current / Amperage Rati.400 A
Current Rating400 A
Current rating400 A
Current Stock197
Display SizeStandard Sized Product
Display TypeStandard Sized Product
ECCNEAR99
End TypeTaper Nose
Environmental ConditionsIndoor Dry Unless Prote.
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Connectors, 16 .
Flange ShapeSquare
For LocationIndoor
GenderFemale
Gross Weight0.75 lbs
Housing ColorRed
Housing ColourRed
Housing MaterialThermoplastic Elastomer
Insulator MaterialThermoplastic Elastomer.
International ShippingNo
ItemReceptacle, Female Rece.
Item NumberHBLFRR
Item TypePanel Mount Receptacle
Lead TimeExpected to ship in 1-2.
Male/FemaleFemale
ManufacturerHubbell
Manufacturer Part NumberHBLFRR
MaterialThermoplastic Elastomer.
Material - Mounting Har.Threaded Thru-Hole
Material - mounting har.Threaded Thru-Hole
Maximum Wire Size4/0 AWG
Minimum Wire Size4 AWG
MountingPanel
Mounting LocationPanel
Mounting StyleThrough Hole Mounting
MpnHBLFRR
NEMA Enclosure Rating12, 3R, 4X
Nema RatingNon-NEMA
NEMA Rating12K, 3R, 4X
Net Weight0 lbs
No. of Poles1
No. of Wires1
Number of poles1-Pole
Number Of Poles1-Pole
Number Of Wires1-Wire
Number of wires1-Wire
OEM Brand NameHubbell Wiring Device-K.
Overall Length4.1 in
Overall Width2.2 in
PhaseSingle, Single phase
Product Series16
Product TypeReceptacle
Receptacle GenderFor Male Plugs
SeriesSinglepole Series, Seri.
Single Pole Device StyleTaper Nose
SKUZO-G0586722
StandardNational Electric Code .
StandardsUL/cUL, UL, cUL
StyleFemale Double Set Screw
SubCategoryElectrical
Terminal ConnectionDouble Set Screw
Terminal Connection TypeDouble Set Screw
TypeReceptacle
UL 94 Flammability Rati.HB
UNSPSC39121406
UPC783585112640
UPC Code783585112640
Voltage600 VAC
Voltage Rating600V AC/250V DC
Voltage Rating Descript.600V AC/250V DC
Voltage rating descript.600V AC/DC
Wattage240000
Wire size#4 AWG to #4/0 AWG
Wire Size#4 AWG to #4/0 AWG
Wire Size Range4 AWG - 4/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBLFRR41.7514HUBBELL41.75 @ 1
thumbzoomZoroG058672243.661In StockHubbell0.7543.66 @ 1
thumbzoomsustainablesupply.comC118439546.371In StockHubbell0.7546.37 @ 1
grainger.caWWG2XB5351.118516581In StockHUBBELL WIRING DEVICE-KELLEMS0.7551.11851658 @ 1
thumbzoomgordonelectricsupply.comHBLFRR53.731In StockHUBBELL53.73 @ 1
standardelectricsupply.com224968255.071In StockHubbell55.07 @ 1
thumbzoomMRO Supply102675055.071In StockHubbell Wiring55.07 @ 1
thumbzoomGalcoHBLFRR-HBBL56.691In StockHubbell0.7556.69 @ 1
us.rs-online.com7057498357.7911Hubbell Wiring Device-Kellems57.79 @ 1
thumbzoomNewark01J418261.31In StockHUBBELL WIRING DEVICES61.3 @ 1
thumbzoommayerelectric.comHUBHBLFRR61.31In StockHUBBELL WIRING DEVICES61.3 @ 1
VericalHBLFRR62.0512Hubbell Wiring Device-Kellems62.05 @ 1
thumbzoomsimsupply.comZO-G058672265.31197Hubbell65.3 @ 1
thumbzoomRaptor SuppliesAC3XAH68.1360031In StockHUBBELL WIRING DEVICE-KELLEMS68.136003 @ 1
Graybar2504587568.89121In StockHubbell Wiring Device - Kellems68.8912 @ 1
steinerelectric.com26689485.881In StockHubbell Wiring Device-Kellems85.88 @ 1
kirbyrisk.com1992635136.081In StockHubbell136.08 @ 1
