Hubbell HBL2420ST

B0B6B3GS4N

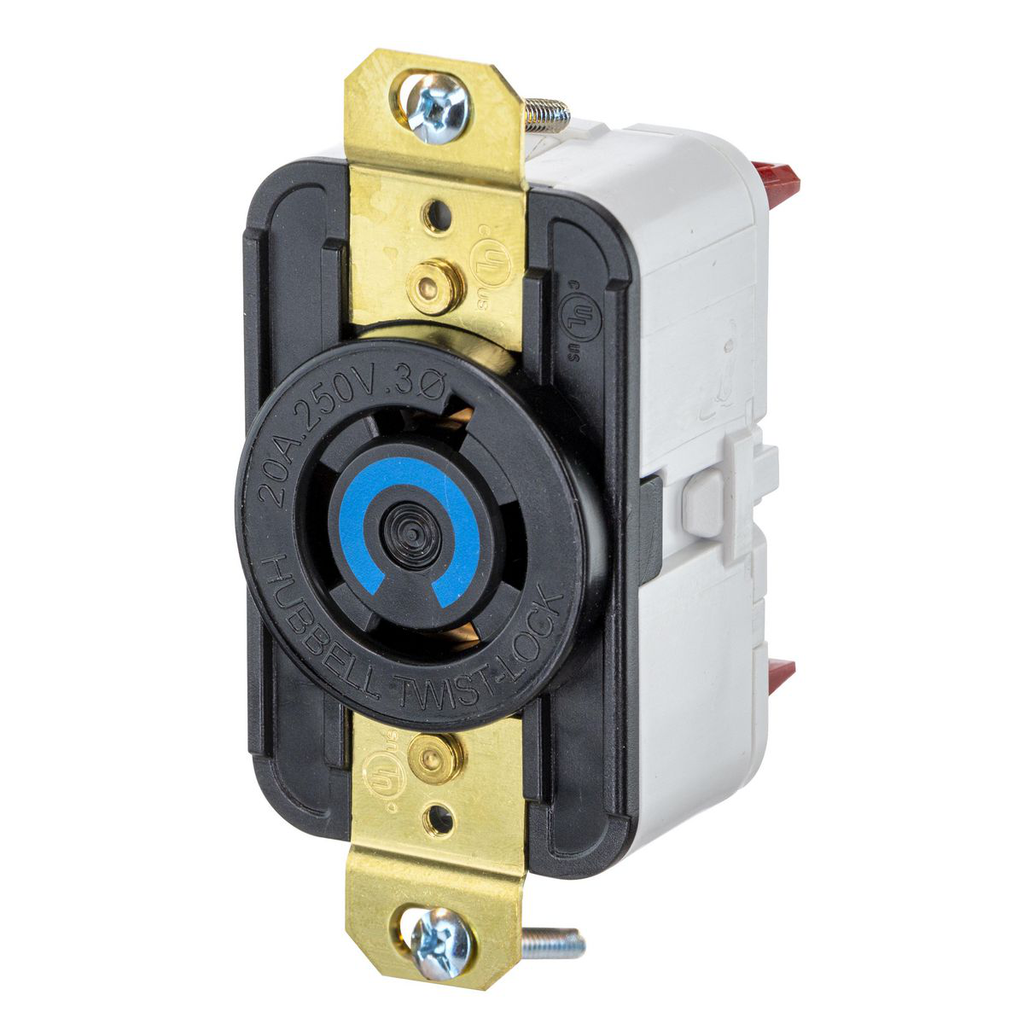

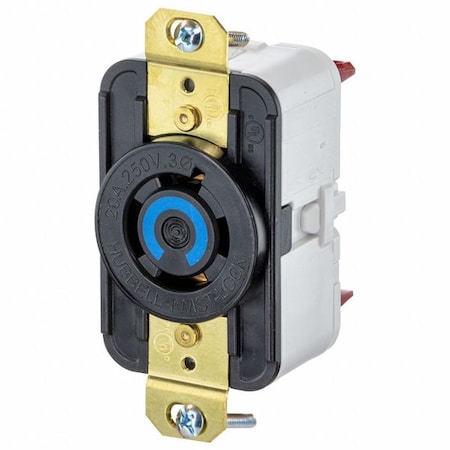

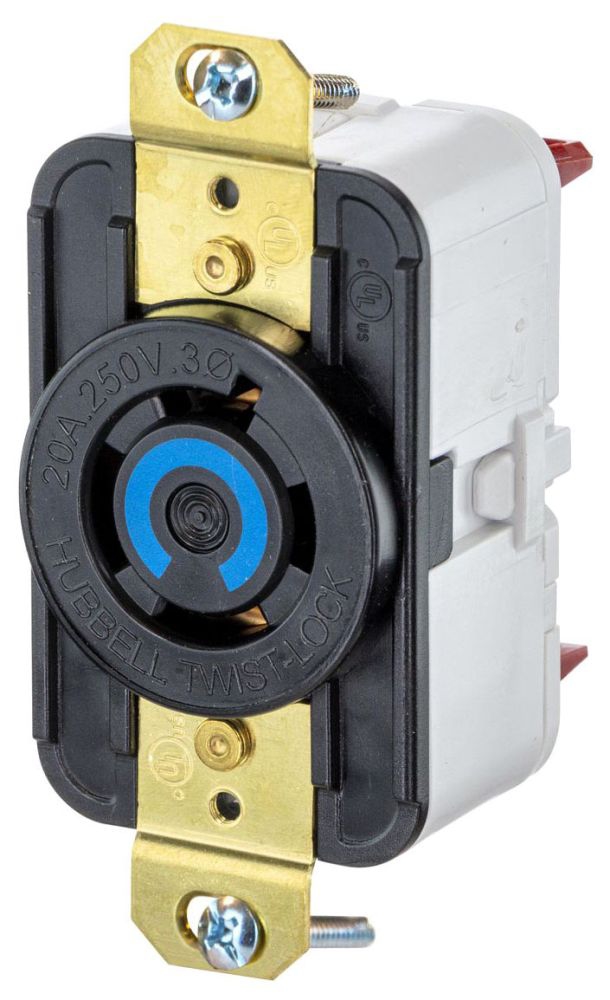

Hubbell 78858 Locking Receptacle, See Image

Hubbell 78858 Locking Receptacle, See Imagezoom

Attributes

Key Value
AFCINo
Amperage Rating20 A
ApprovalsCSA, UL
Class CodeA08
ColorBlack
Connection OrientationStraight
Contact MaterialBrass
Corrosion ResistantNo
Country of OriginCN
Country of Origin (subj.China
Cover TypeNo Cover
Current Rating20 A
Dimensions3.28 in x 1.7 in x 1.46.
Each - Height2.400 in
Each - Length4.000 in
Each - Width2.400 in
Face Diameter1.56 in
Face Plate Height2.77 in
Face Plate Width1.7 in
Family SeriesHubbell Plugs & Recepta.
Flange DiameterNot Applicable
Flange HeightNot Applicable
Flange TypeNon-Flanged
Flange WidthNot Applicable
Freight Class Code06168002
Gross Weight0.325 lbs
GroundingGrounded
Harmonization Code8536698000
Height1.468 in
Housing ColorBlack
Housing MaterialNylon
Image Actual Or Represe.A
IncludesMounting Strap
Includes Mounting Hardw.Yes
Isolated GroundNo
ItemLocking Receptacle
Item NumberHBL2420ST
Length3.28 in
ManufacturerHubbell
Manufacturer Part NumberHBL2420ST-HBBL
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
MSDS FlagNo
NEMA ConfigurationL15-20R
NEMA Enclosure Rating1
NEMA Receptacle Configu.L15-20R
Net Weight0.25 lbs
Number of Gangs1
Number Of Poles3
Number of Poles3
Number of Wires4
Number Of Wires4
Overall Depth1.468 in
PolarizedYes
Product SeriesTwist-Lock Edge
Resistance PropertiesImpact Resistant
ShroudedNo
Size3.28 in x 1.7 in x 1.46.
Sub Class CodeA08A110
UL 94 Flammability Rati.V-2
Voltage250 VAC
Voltage Rating250V AC, 250 VAC
WatertightNo
Width1.7 in
Wire Size14 AWG - 10 AWG solid, .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoHBL2420ST-HBBL23.3318Hubbell0.32523.33 @ 1
standardelectricsupply.com240664525.0175Hubbell25.0 @ 1
thumbzoomZoroG10617132828.61In StockHubbell0.328.6 @ 1
thumbzoommayerelectric.comHUBHBL2420ST48.315HUBBELL WIRING DEVICES48.3 @ 1
kirbyrisk.com355479349.3316Hubbell49.33 @ 1
thumbzoomgordonelectricsupply.comHBL2420ST50.971In StockHUBBELL50.97 @ 1
thumbzoomNewark63AJ6700101.2411HUBBELL WIRING DEVICES101.24 @ 1
