Hubbell Wiring Systems HBLMRSBL

B005T90606

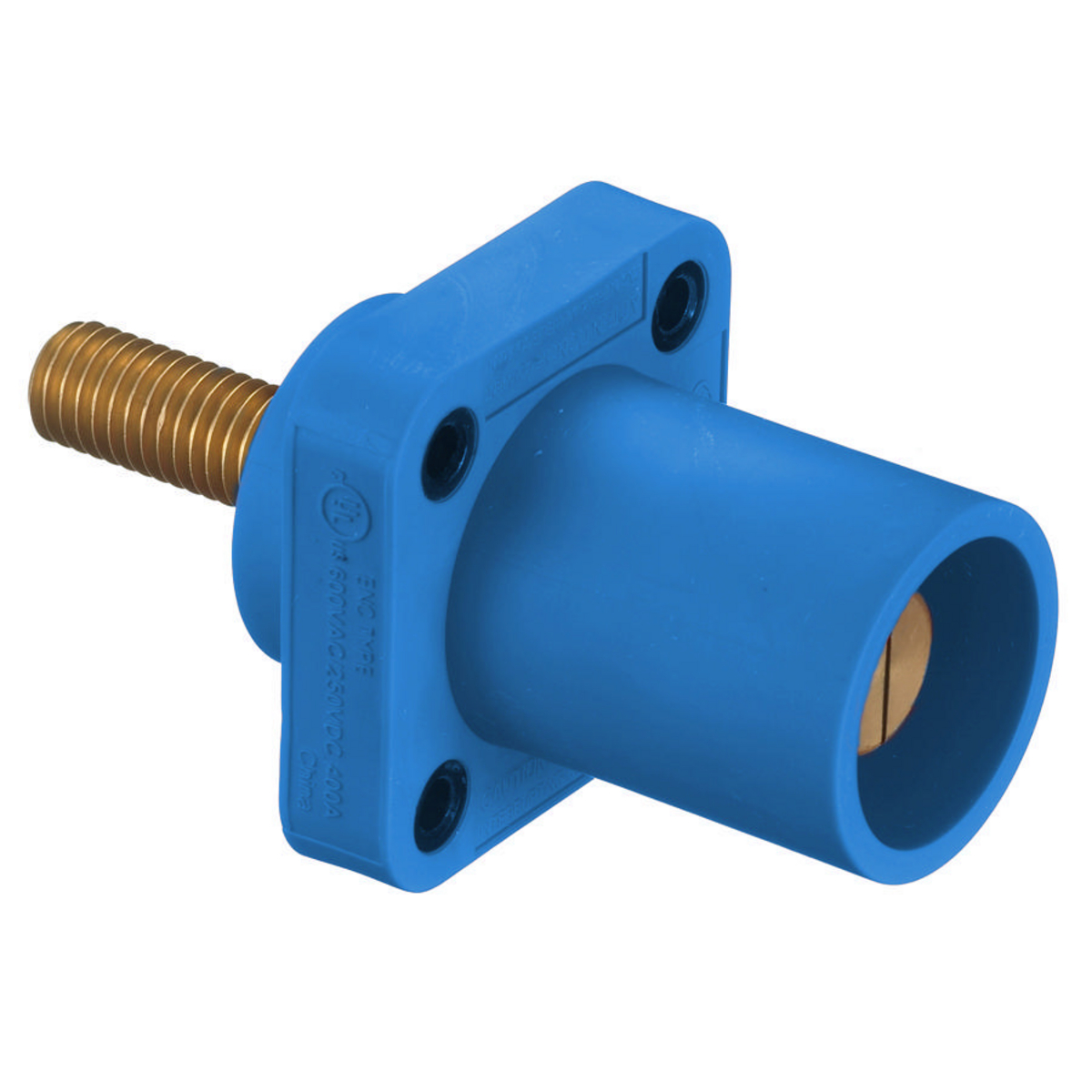

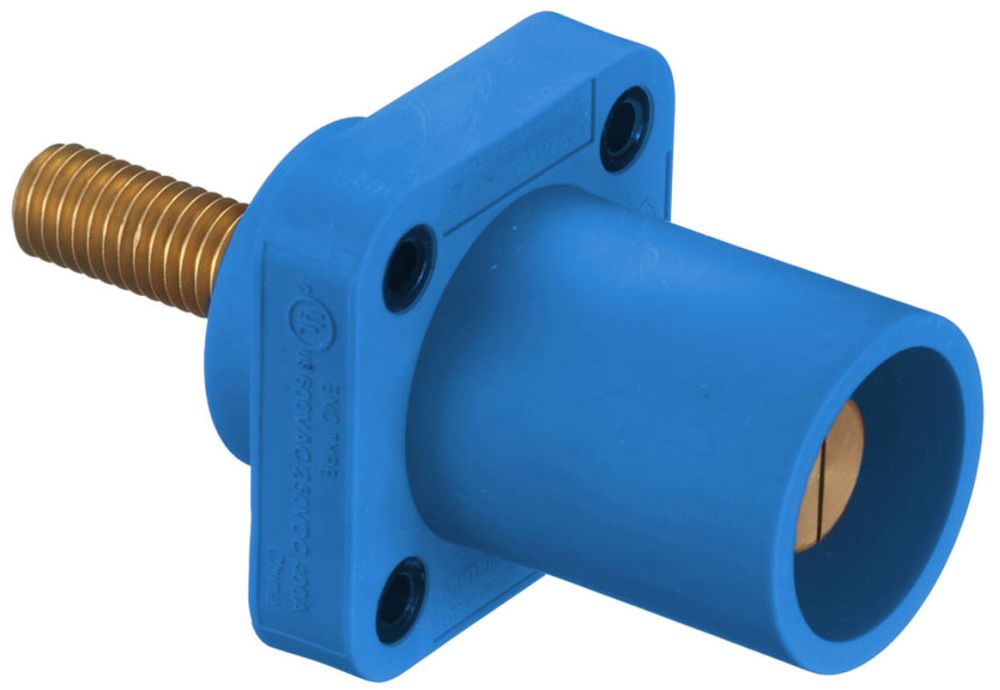

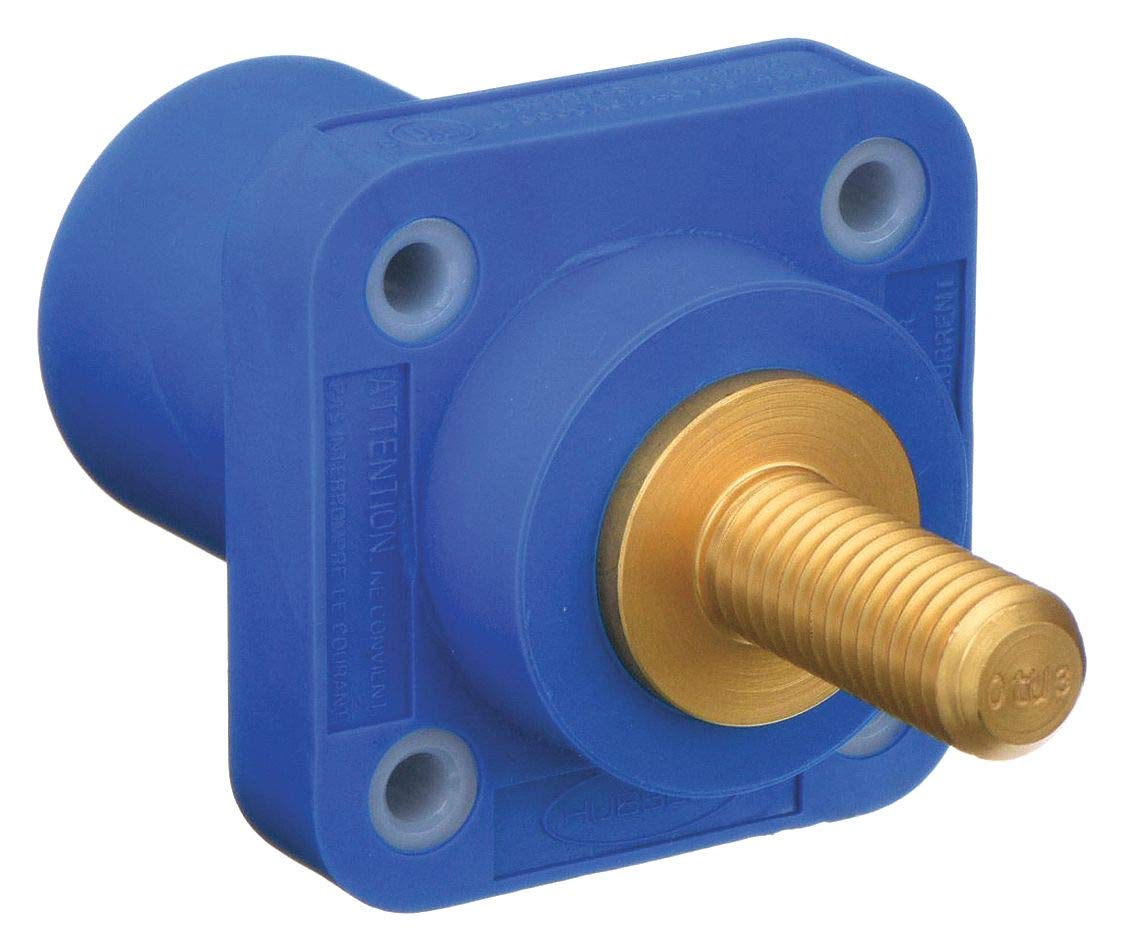

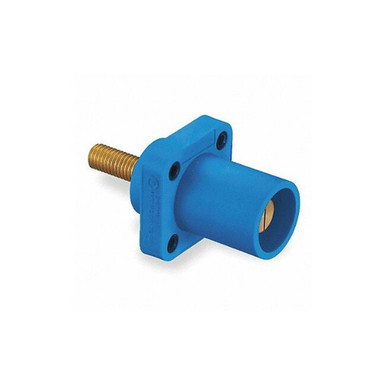

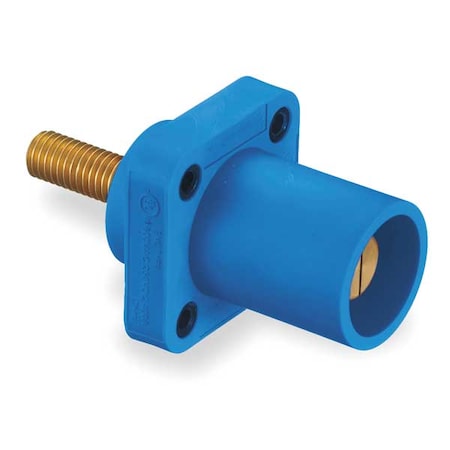

Hubbell Wiring Systems HBLMRSBL TPE Single Pole Panel Mount Male Receptacle for Threaded Mounting Hole, 1/2"-13 UNC Thread Stud, 400 Amp, 4-3/32" Length, Blue

Hubbell Wiring Systems HBLMRSBL TPE Single Pole Panel Mount Male Receptacle for Threaded Mounting Hole, 1/2"-13 UNC Thread Stud, 400 Amp, 4-3/32" Length, Bluezoom

Attributes

Key Value
Amperage400 A
Amperage Rating400A
Amps AC/DC400AC/DC
ApplicationHigh Ampacity Connectio.
ApprovalscUL, NEC, UL
AWG Range#4 AWG to #4/0 AWG
BrandHubbell
Cable Attachment MethodThreaded Stud
Cable Gauge4 to 4/0 AWG
Cable RangeN/A
Cable Size#4-4/0
Cable Size (AWG)4 AWG, 3 AWG, 2 AWG, 1 .
ColorBlue
Color FamilyBlue
Compatible with Series16
Conductor MaterialBrass
Connection DescriptionMale
Connection OrientationStraight
ConnectivityScrew terminals
Connector ColorBlue
Contact MaterialBrass
Country of OriginCN - China
Country of Origin (subj.China
Current / amperage rati.400 A
Current Rating400 A
Current rating400 A
Current Stock22
Display TypeStandard Sized Product
ECCNEAR99
End TypeTaper Nose
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Connectors, 16 .
Flange ShapeSquare
For LocationIndoor
GenderMale
Gross Weight0.7 lbs
Housing ColorBlue
Housing ColourBlue
Housing MaterialThermoplastic Elastomer
Includes Mounting Hardw.Yes
Insulator MaterialThermoplastic Elastomer.
International ShippingNo
ItemReceptacle, Male Recept.
Item NumberHBLMRSBL
Lead TimeExpected to ship in 1-2.
Male/FemaleMale
ManufacturerHubbell
Manufacturer Part NumberHBLMRSBL
MaterialThermoplastic Elastomer.
Material - mounting har.Screw Mounting
Maximum Wire Size4/0 AWG
Minimum Wire Size4 AWG
MountingPanel
Mounting LocationPanel
Mounting StyleThrough Hole Mounting
MpnHBLMRSBL
NEMA Enclosure Rating12, 3R, 4X
Nema RatingNon-NEMA
NEMA Rating12K, 3R, 4X
Net Weight0 lbs
No. of Poles1
Number of poles1-Pole
Overall Length4.15 in
Overall Width2.2 in
PhaseSingle, Single phase
Product Series16
Product TypeReceptacle
Receptacle GenderFor Female Connectors
SeriesSinglepole Series, 16
Single Pole Device StyleTaper Nose
SKUZO-G1405695
StandardNational Electric Code .
StandardsUL/cUL, UL, cUL
StyleStud Type, Through Hole.
SubCategoryElectrical
Terminal ConnectionThreaded Stud
Terminal Connection TypeDouble Set Screw
TypeReceptacle
UL 94 Flammability Rati.HB
UNSPSC39121406
UPC783585113005
UPC Code783585113005
Voltage600 VAC
Voltage Rating600V AC/250V DC
Voltage rating descript.600V AC/DC
Wattage240000
Wire size#4 AWG to #4/0 AWG
Wire Size Range4 AWG - 4/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBLMRSBL36.721In StockHubbell36.72 @ 1
thumbzoomAmazonSCB0078RQV3I42.111In StockHubbell Wiring Device-Kellems42.11 @ 1
thumbzoomsustainablesupply.comC118440843.361In StockHubbell0.5543.36 @ 1
thumbzoomsimsupply.comZO-G140569549.54122Hubbell49.54 @ 1
standardelectricsupply.com224019551.071In StockHubbell51.07 @ 1
thumbzoomMRO Supply102698051.071In StockHubbell Wiring51.07 @ 1
grainger.caWWG2XB7051.118516581In StockHUBBELL WIRING DEVICE-KELLEMS0.5551.11851658 @ 1
thumbzoomgordonelectricsupply.comHBLMRSBL51.841In StockHUBBELL51.84 @ 1
thumbzoomGalcoHBLMRSBL-HBBL52.571In StockHubbell0.752.57 @ 1
thumbzoomZoroG140569553.741In StockHubbell0.5553.74 @ 1
thumbzoomNewark46M313956.851In StockHUBBELL WIRING DEVICES56.85 @ 1
us.rs-online.com7057494560.411Hubbell Wiring Device-Kellems60.4 @ 1
Graybar2505717763.88481In StockHubbell Wiring Device - Kellems63.8848 @ 1
thumbzoomNational Supply Network1992471164.91In StockHubbell Wiring Device-Kellems64.9 @ 1
thumbzoomRadwellHBLMRSBL65.01In StockHUBBELL BRYANT65.0 @ 1
steinerelectric.com55230279.651In StockHubbell Wiring Device-Kellems79.65 @ 1
thumbzoomRaptor SuppliesAC3XBB93.2987251In StockHUBBELL WIRING DEVICE-KELLEMS93.298725 @ 1
