- mpnGT5Y2SN1A100
- brandname: IDEC
- manufacturername: IDEC

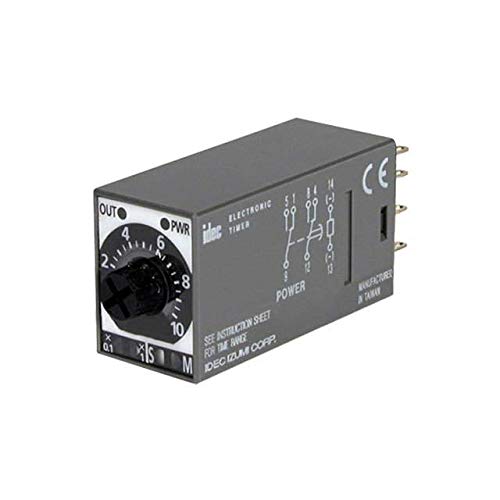

TIMER BLADE PLUG-IN DPDT 5A, Pack of 1
- Brand: IDEC
- PartNumber: GT5Y-2SN1A100
- Binding: Misc.
- Manufacturer: Idec
- Label: Idec
Attributes
| Key | Value |
|---|
| Approvals | CE, cUL, UL |
| Base Product Number | GT5Y |
| Category | Industrial Automation a. |
| Circuit | DPDT (2 Form C) |
| Coil Voltage | 100-120 VAC |
| Contact Form | DPDT |
| Contact Rating (A) | 5 A |
| Contact Rating @ Voltage | 5A @ 220VAC/30VDC |
| Contacts | DPDT |
| Control Voltage | 120 VAC |
| Current Rating | 5 A |
| Delay Time | 0.1 Sec ~ 10 Min |
| Description | RELAY TIME DELAY 10MIN . |
| Detailed Description | On-Delay Time Delay Rel. |
| Dielectric Strength | 2000 VAC @ 1 Minute |
| Digi-Key Part Number | 1885-1032-ND |
| Family Series | IDEC Relays, GT5Y Series |
| Flicker operation | ? |
| Function | On-Delay |
| Gross Weight | 0.14 lbs |
| Item Number | GT5Y-2SN1A100 |
| Manufacturer | IDEC |
| Manufacturer Part Number | GT5Y-2SN1A100 |
| Manufacturer Product Nu. | GT5Y-2SN1A100 |
| Manufacturer Standard L. | 14 Weeks |
| Max Time | 10 Min |
| Maximum Operating Tempe. | 50 C |
| Mfr | IDEC |
| Minimum Operating Tempe. | -10 C |
| Mode of Operation | On Delay |
| Mounting Type | Socketable, Panel Mount. |
| Multi-Function | No |
| Net Weight | 0.14 lbs |
| Nominal Coil Voltage | 120 VAC |
| Number of Pins | 8 |
| Output Method | Relay |
| Package | Bulk |
| Power Rating | 1100 VA/150 W (Resistan. |
| Primary Type | Time Delay Relays |
| Product Header | GT5Y Series On Delay Ti. |
| Product Series | GT5Y |
| Product Status | Active |
| Relay Type | Electromechanical, Mech. |
| Series | GT5Y Series, GT5Y |
| Standards | cULus, CE |
| Star/Delta | ? |
| Status Indicator | LED |
| Termination | 14 Blade Square, QC Tabs |
| Termination Style | Plug In |
| Time Range (Minutes) | 0-1, 0-2, 0-3, 0-5, 0-10 |
| Time Range (Seconds) | 0-2, 0-3, 0-5, 0-10, 0-. |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Timing Range | 1, 0.1 Sec. to 10 Min. |
| Type | Timer |
| Voltage - Supply | 100 ~ 120VAC |
| Voltage Rating | 220 ; 30 V |
| Width(mm) | In Stock |
