mpn:
brand:
manufacturer:
MPN:
Description:

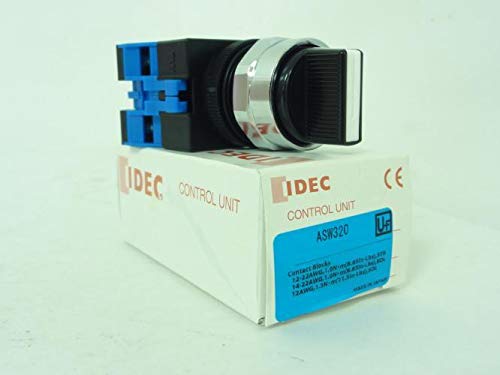

Maintained Selector Switch, 3 Position Knob, 2NO, 10A, 600V, TW Series
Weight:
2.2
Weight:
0.5 LB
Preferred Price:
37.33
Price:
37.33
Min Simple Price:
20.4
Absolute Min Price:
28.96
Min Price:
28.96
Dimensions:
[2.0, 2.0, 2.0]
qty:
1
simpleSku:
TUzMTM:::ASW320
sku:
TUzMTM::ZW:ASW320@y0
condition:
11
seller:
Walker Industrial
amzMan:
idec
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Actuator Color | Black |
| Actuator Type | Knob |
| AMP Rating | 10 |
| Approval Agency | CCC, CE, CSA, TUV, UL |
| Best Sellers Rank | See Top 100 in Industrial & Scientific |
| Bezel | Metal Round |
| Brand | IDEC |
| Category | Switches |
| Circuit | DPST-NO |
| Color | Black |
| Comments | Please see literature for truth table. Exposed Screw |
| Contact Form | 2NO |
| Contact Type | Dpdt |
| Contacts | 2NO |
| Current (A) | 10 A |
| Current Rating | 10 A, 10 Amps |
| Current Rating (Amps) | 10A (AC), 8A (DC) |
| Date First Available | June 23, 2013 |
| Depth Behind Flange | 48.50mm |
| Depth Behind Panel | 1.91 " |
| Description | 22MM SELECTOR SWITCH |
| Detailed Description | Selector Switch 3 Position DPST-NO 10A (AC), 8A (DC) 110 V Panel Mount |
| Dielectric Strength | 600 V |
| Digi-Key Part Number | 1885-1071-ND |
| Electrical Life | - |
| Family Series | IDEC Switches, TW Series |
| Features | - |
| Gross Weight | 0.145 lbs |
| Illumination | Non-Illuminated |
| Illumination Color | None |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Ingress Protection | IP65 - Dust Tight, Oil and Water Resistant |
| IP Rating | IP65 |
| Item Dimensions LxWxH | 5.91 x 5.91 x 5.91 inches |
| Item model number | ASW320 |
| Item Number | ASW320 |
| Manufacturer | IDEC |
| Manufacturer Part Number | ASW320 |
| Manufacturer Product Number | ASW320 |
| Manufacturer Standard Lead Time | 35 Weeks |
| Max Voltage | 600 VAC, 600 VDC |
| Mechanical Life | 500,000 Cycles |
| Mfr | IDEC |
| Mounting Hole Size | 22 ; 0.87 mm ; in |
| Mounting Size (mm) | 22 mm, 22 |
| Mounting Type | Panel Mount |
| N/O Contacts | 2 |
| Nema Rating | NEMA 1;NEMA 2;NEMA 3;NEMA 3R;NEMA 3S;NEMA 4;NEMA 4X;NEMA 5;NEMA 12;NEMA 13 |
| Net Weight | 0.12 lbs |
| Number of Positions | 3 |
| Operating Temperature | -25?C ~ 50?C |
| Operation | ON-OFF-ON |
| Operator Color | Black |
| Operator Type | Knob |
| Package | Bulk |
| Package Quantity | 1 |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
| Product Dimensions | 5.91 x 5.91 x 5.91 inches; 1 Pounds |
| Product Series | TW |
| Product Status | Active |
| Product with faster shipping | true |
| Selector Function | Maintained |
| Series | TW, TW Series |
| Shipping | undefined (Fixed Shipping Cost), Calculated at Checkout |
| Special Features | Oiltight |
| Specification met | RoHS |
| Switch Function | Maintained, On-Off-Off, Off-Off-On |
| Switch Type | Maintained Selector Switch |
| Terminal Type | Screw |
| Termination | Screw |
| Termination Style | Screw Terminal |
| Type | Non-Illuminated Selector, General Purpose, Standard |
| Voltage | 600 VAC;600 VDC |
| Voltage Rating | 220 V |
| Voltage Rating - AC | 110 V |
| Voltage Rating - DC | 24 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Walker Industrial | ASW320 | 20.4 | 20.4 | 1 | In Stock | 17 | IDEC | 20.4 @ Qty: 1+ | |
 | Galco | ASW320-IDEC | 22.17 | 22.17 | 1 | 26 | IDEC | 0.145 | 22.17 @ Qty: 1+ | |
| Onlinecomponents.com | ASW320 | 22.42 | 22.42 | 1 | 131 | IDEC | 22.42 @ Qty: 1+ | |||
 | Carlton Bates Company | 78040098220 | 23.38 | 23.38 | 1 | In Stock | IDEC | 23.38 @ Qty: 1+ | ||
 | Radwell | ASW320 | 24.0 | 24.0 | 1 | 2 | IDEC | 24.0 @ Qty: 1+ | ||
 | motorsandcontrol.com | ASW320 | 24.19 | 24.19 | 1 | In Stock | Idec | 24.19 @ Qty: 1+ | ||
| AmazonTP | B005T7YAUU | 25.85 | 25.85 | 1 | In Stock | 2 | IDEC | 25.85 @ Qty: 1+ | ||
 | Newark | 74K3681 | 30.47 | 30.47 | 1 | 31 | IDEC | 30.47 @ Qty: 1+ | ||
| Kele | ASW320 | 30.61 | 30.61 | 1 | 81 | IDEC | 30.61 @ Qty: 1+ | |||
 | Digi-Key | 8344336 | 31.24 | 31.24 | 1 | 5 | IDEC | 31.24 @ Qty: 1+ | ||
| us.rs-online.com | 70172537 | 31.26 | 31.26 | 1 | 81 | IDEC Corporation | 31.26 @ Qty: 1+ | |||
| steinerelectric.com | 58806 | 36.08 | 36.08 | 1 | In Stock | IDEC | 36.08 @ Qty: 1+ | |||
 | Zoro | G709173545 | 37.15 | 37.15 | 1 | 1 | Idec | 37.15 @ Qty: 1+ | ||
| Airline Hydraulics | IDEC ASW320 | 40.44 | 40.44 | 1 | In Stock | IDEC | 40.44 @ Qty: 1+ | |||
 | homeessentialsdirect.com | ASW320 | 40.85 | 40.85 | 1 | In Stock | IDEC | 40.85 @ Qty: 1+ | ||
 | midwestapplianceparts.com | ASW320-IR-P | 44.38 | 44.38 | 1 | 1 | IDEC | 44.38 @ Qty: 1+ |
