INA D-11

B00206NY78

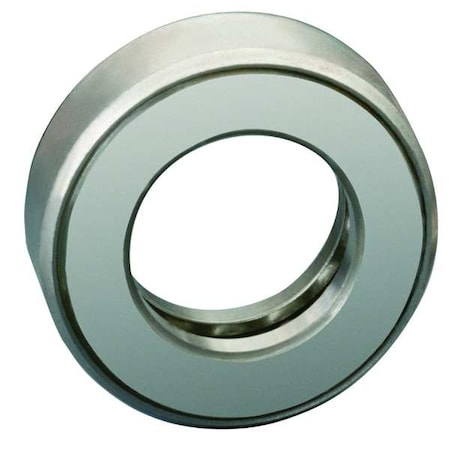

INA D-11 Bearing Ball Banded AXIAL Single Direction 1-1/4IN

INA D-11 Bearing Ball Banded AXIAL Single Direction 1-1/4INzoom

Attributes

Key Value
ApplicationIndustrial
AvailabilityIn Stock, ships within .
Ball MaterialSteel
Ball Material Grade100Cr6
Bearing Industry NumberD11
Bearing SeriesD Series
Bore Dia. (In.)1.125 in
Bore Dia. (mm)-
Bore Diameter1 1/8 in
BrandIna
Cage MaterialSteel
Cage Material GradeSheet Steel
ClosureOpen
Country of Origin (subj.Mexico
Current Stock13
Dimension D2-
Dimension d2 (mm)-
DirectionAxial
Dynamic Axial Load Capa.6,900 lbf
Dynamic Load Capacity (.6,900 lb
Dynamic Load Capacity (.-
Height (In.)0.625 in
Height (mm)-
Housing Washer Bore1.156 in
International ShippingNo
ItemBall Thrust Bearing
Lubricant MaterialOil
LubricationOil
Lubrication OpeningsLubrication Hole
MaterialHAWA, -
Max. RPM3,600 RPM
Maximum Speed3,600 RPM
Maximum Temperature250 Degrees F
Minimum Temperature-20 Degrees F
MpnD11
Outside Dia. (In.)2.094 in
Outside Dia. (mm)-
Outside Diameter2 3/32 in
Overall Width0.625 in
Race FormGrooved
Roller Dia. (In.)-
Roller Dia. (mm)-
Seal MaterialNot Applicable
Seal TypeNot Applicable
SKUCU-345A5A5235
Static Axial Load Capac.14,000 lbf
Static Load Capacity (L.14,000 lb
Static Load Capacity (N)-
SubCategoryPower Transmission
System of MeasurementInch
Temp. Range (F)-20 Degrees to +250 De.
Thrust Bearing TypeBanded Ball Thrust Bear.
TypeBanded Ball
Washer MaterialSteel
Washer Material Grade100Cr6

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomPurvisAKL.D1127.521In StockINA27.52 @ 1
thumbzoomsustainablesupply.comC169035841.241In StockIna0.3541.24 @ 1
thumbzoomZoroG271022446.611In Stock26Ina0.1546.61 @ 1
thumbzoomsimsupply.comCU-345A5A523549.811In StockIna49.81 @ 1
thumbzoomNRI IndustrialB25264370.851In StockINA70.85 @ 1
