INA HK0609

B006KT1EY6

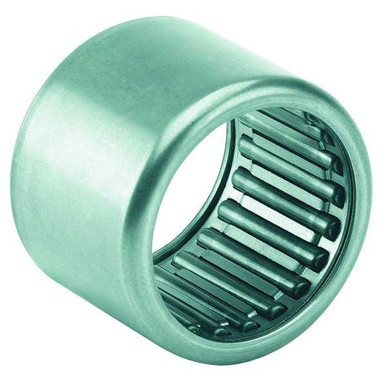

INA HK0609 Needle Roller Bearing, Caged Drawn Cup, Outer Ring and Roller, Steel Cage, Open End, Metric, 6mm ID, 10mm OD, 9mm Width, 33000rpm Maximum Rotational Speed, 590lbf Static Load Capacity, 640lbf Dynamic Load Capacity

INA HK0609 Needle Roller Bearing, Caged Drawn Cup, Outer Ring and Roller, Steel Cage, Open End, Metric, 6mm ID, 10mm OD, 9mm Width, 33000rpm Maximum Rotational Speed, 590lbf Static Load Capacity, 640lbf Dynamic Load Capacityzoom

Attributes

Key Value
Bearing Industry Number609
Bore0.236 Inch | 6 Millimet.
Bore Dia. (mm)6 mm
Bore Diameter6 mm
BrandIna
Cage MaterialSteel
Cage Material GradeSheet Steel
Category - BDINeedle Non Thrust Rolle.
Closed EndNo
ClosureOpen
ColorSilver
ComponentRoller Assembly with Ou.
Current Stock197
Dynamic Load Capacity (.2,850 N
Dynamic Radial Load Cap.2.85 kN
EAN4047643196567
EnclosureOpen
Harmonized Tariff Code8482.99.65.30
Inch - MetricMetric
International ShippingNo
ItemNeedle Roller Bearing
Keyword StringBearing Needle
Lead TimeExpected to ship in 1-2.
Long Description6MM Bore; 10MM Outside .
Lubricant MaterialGrease, Oil
Lubrication OpeningsNot Applicale
Manufacturer Item NumberHK0609
Manufacturer NameSCHAEFFLER GROUP
Max. RPM35,000 RPM
Minimum Buy QuantityN/A
MpnHK0609
NounRoller Assembly with Ou.
Number of RowsOne
Number of Rows of Rolle.Single Row
Other Features2 Rib Outer Ring | Draw.
Outside Dia. (mm)10 mm
Outside Diameter10 mm, 0.394 Inch | 10 .
Overall Width9 mm
Product Group - BDIB04144
RelubricatableNo
RetainerYes
Ring MaterialAlloy Steel
Roller MaterialAlloy Steel
Rolling ElementNeedle Roller Bearing
Seal TypeNot Applicable
Self AligningNo
SeparableNo
SKUZO-G1117496
Static Load Capacity (N)2,600 N
SubCategoryPower Transmission
System of MeasurementMetric
Temp. Range (F)-5 Degrees to +212 Deg.
Thrust BearingNo
TypeDrawn Cup
UNSPSC31171512
UPC035373061907
Weight / Kilogram0.002
Weight / LBS0.006
Width0.354 Inch | 9 Millimet.
Width (mm)9 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomBDI Express11807574.663076591248INA0.00444.66307659 @ 1
cbtcompany.comHK06095.341In StockINA5.34 @ 1
thumbzoomPurvisHK06095.41In StockINA5.4 @ 1
thumbzoomZoroG11174965.751237Ina0.025.75 @ 1
thumbzoomsustainablesupply.comC16903926.791In StockIna0.026.79 @ 1
thumbzoomsimsupply.comZO-G111749612.781197Ina12.78 @ 1
