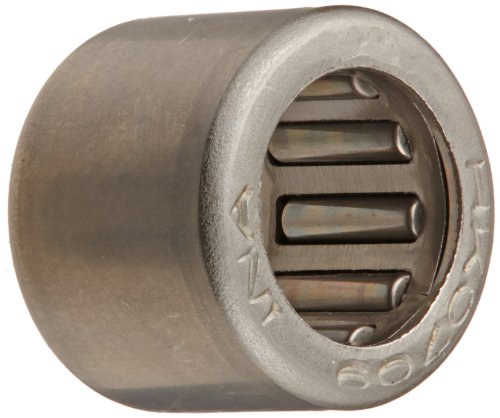

INA HK0709 Needle Roller Bearing, Caged Drawn Cup, Outer Ring and Roller, Steel Cage, Open End, Metric, 7mm ID, 11mm OD, 9mm Width, 31000rpm Maximum Rotational Speed

INA HK0709 Needle Roller Bearing, Caged Drawn Cup, Outer Ring and Roller, Steel Cage, Open End, Metric, 7mm ID, 11mm OD, 9mm Width, 31000rpm Maximum Rotational Speedzoom

Attributes

Key Value
Bore0.276 Inch | 7 Millimet.
Bore Dia. (mm)7 mm
Bore Diameter7 mm
Cage MaterialSteel
Category - BDINeedle Non Thrust Rolle.
Closed EndNo
ClosureOpen
ComponentRoller Assembly with Ou.
Dynamic Load Capacity (.3,100 N
Dynamic Radial Load Cap.3.1 kN
EAN4054364120368
EnclosureOpen
Full ComplementNo
Harmonized Tariff Code8482.40.00.00
Inch - MetricMetric
ItemNeedle Roller Bearing
Keyword StringNeedle
Long Description7MM Bore; 11MM Outside .
Manufacturer Item NumberHK0709
Manufacturer NameSCHAEFFLER GROUP
Max. RPM31,000 RPM
Minimum Buy QuantityN/A
NounBearing
Number of RowsOne
Number of Rows of Rolle.Single Row
Other Features2 Rib Outer Ring | Draw.
Outside Dia. (mm)11 mm
Outside Diameter11 mm, 0.433 Inch | 11 .
Overall Width9 mm
Product Group - BDIB04144
RelubricatableNo
RetainerYes
Ring MaterialAlloy Steel
Ring Material Grade100Cr6
Roller Material Grade100Cr7
Rolling ElementNeedle Roller Bearing
Seal MaterialNot Applicable
Self AligningNo
SeparableNo
StandardsDIN 618, ISO Certified .
Static Load Capacity (N)2,950 N
Static Radial Load Capa.2.95 kN
System of MeasurementMetric
Temp. Range (F)-5 Degrees to +212 Deg.
Thrust BearingNo
TypeDrawn Cup
UNSPSC31171512
Weight / Kilogram0.01
Weight / LBS0.006
Width0.354 Inch | 9 Millimet.
Width (mm)9 mm
